WiSector SA M0608-65-12X

WiSector SA M0608-65-12X is a 65 degrees sector antenna dedicated for TV Whitespace. The antenna enables creating medium range links in outdoor environment (IP67). The set consists of highest quality solid mounting system. WiSector comes with two N Female connectors located at the bottom of the enclosure, the connectors are protected against watering by the special collar surrounding them. Due to material used for the antenna PCB, WiSector SA M0608-65-12X has better parameters than antennas available on the market. Neither hills nor buildings are a problem as Whitespace solution can handle them all.

MIMO 2x2
PVC
Need more information about this product ?
Contact with our
sales manager
Where to buy
Share this product on
Electrical specification
Frequency
0.6 - 0.8 GHz
Gain
12 dBi
VSWR
<1.50
Beamwidth
65°/35°
Polarization
X
Front-to-Back
> 23 dB
Impedance
50 Ω
Max Input Power
50 W
Lighting Protection
No
DC Ground
No
Mechanic specification
Material
PVC
Outer dimensions
38 x 88 x 16 cm
14.96 x 34.65 x 6.3 inch
Connector
2xN Female
Weight
3.5 kg
Operating temperature
from -40°C to 70°C
from -40°F to 158°F
Systems
  • LTE band - 12, 13, 14, 17, 28, 29, 44, 67, 68, 71, 85
  • WiMAX - 700 MHz
Applications
  • PtM Connections
Plots

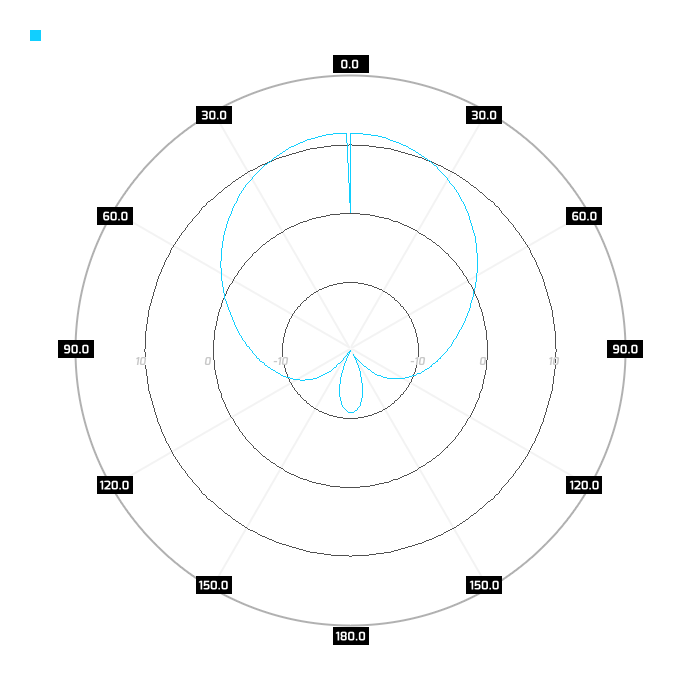

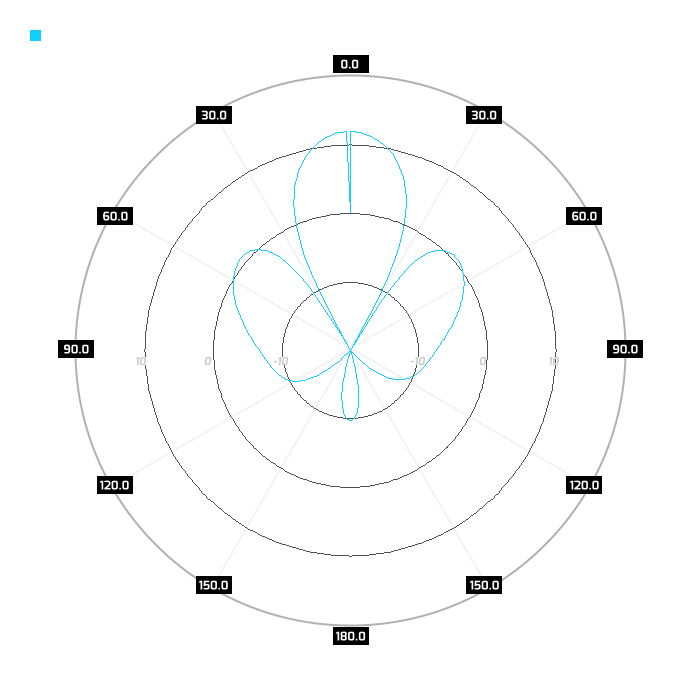

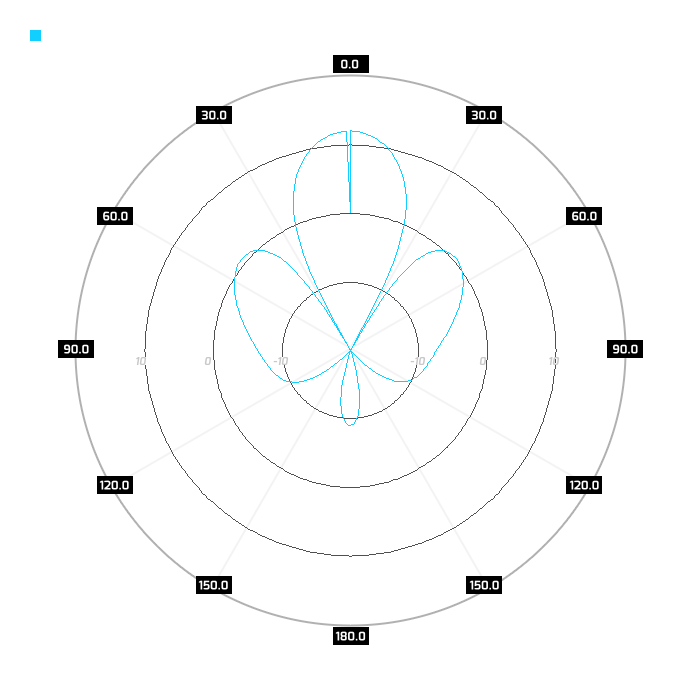

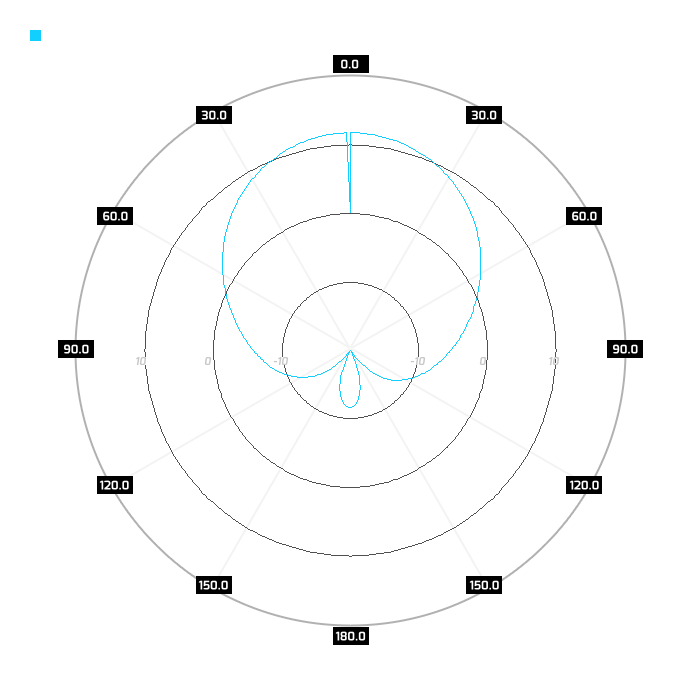

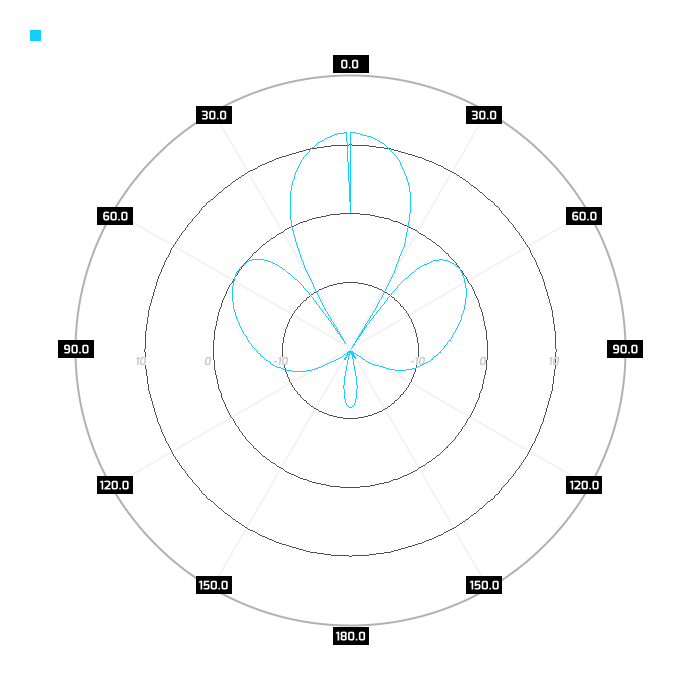

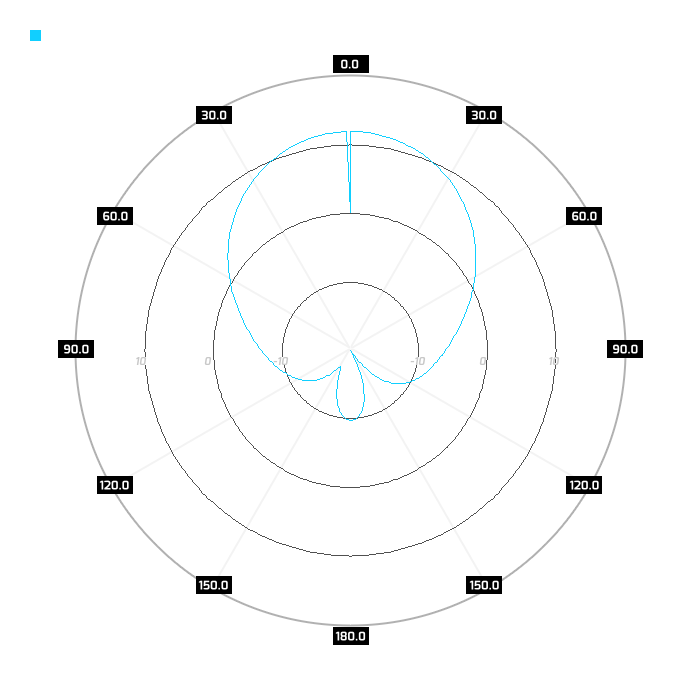

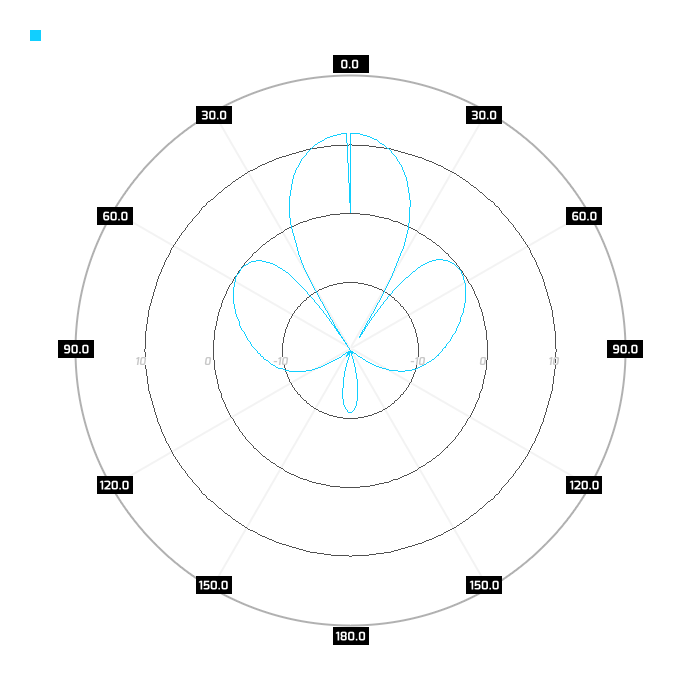

Port 1, azimuth, 700MHzPort 1, elevation, 700MHzPort 1, azimuth, 800MHzPort 1, elevation, 800MHzPort 2, azimuth, 700MHzPort 2, elevation, 700MHzPort 2, azimuth, 800MHzPort 2, elevation, 800MHz
Any information provided by Wireless Instruments Sp. z o.o. is believed to be accurate and reliable. All specifications are subject to change without notice.
