Enclosure

WiSpot

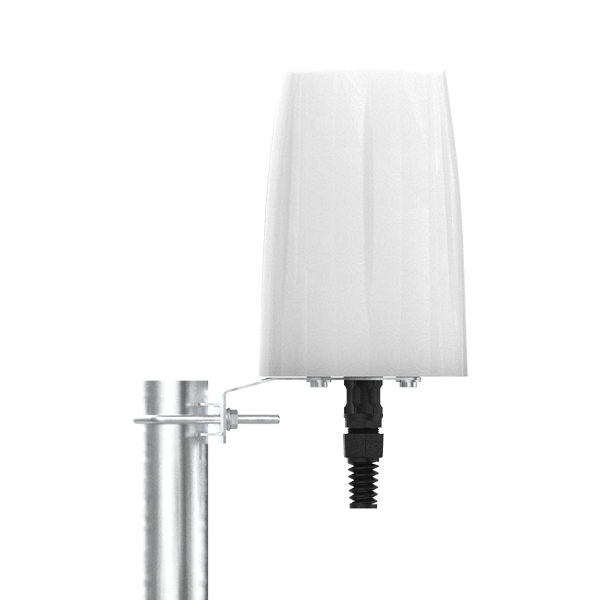

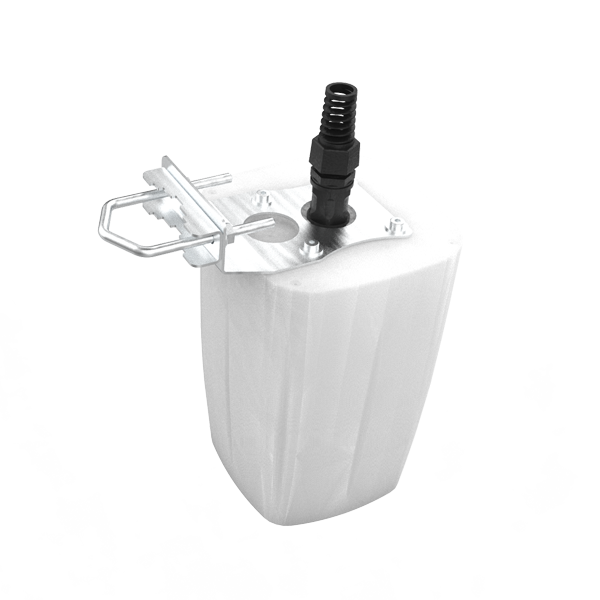

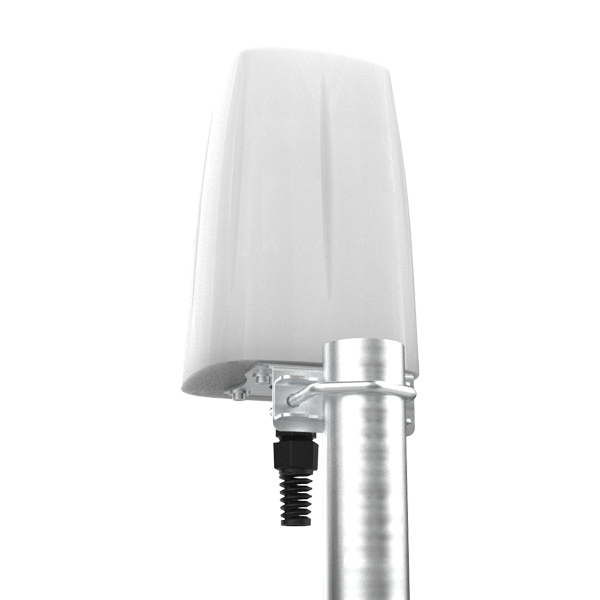

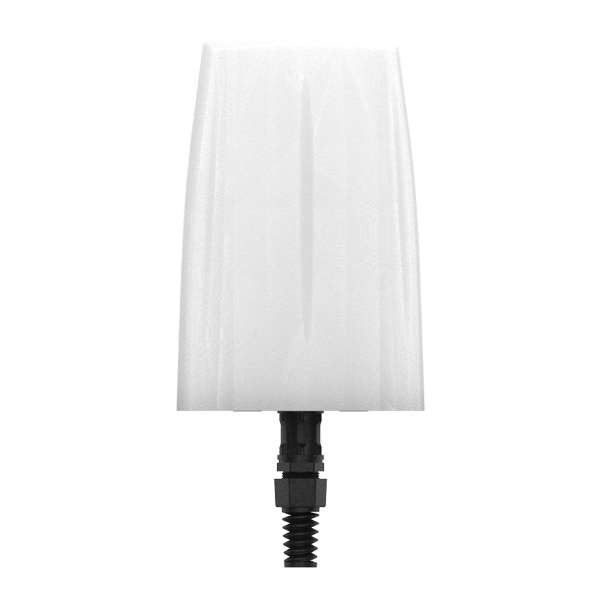

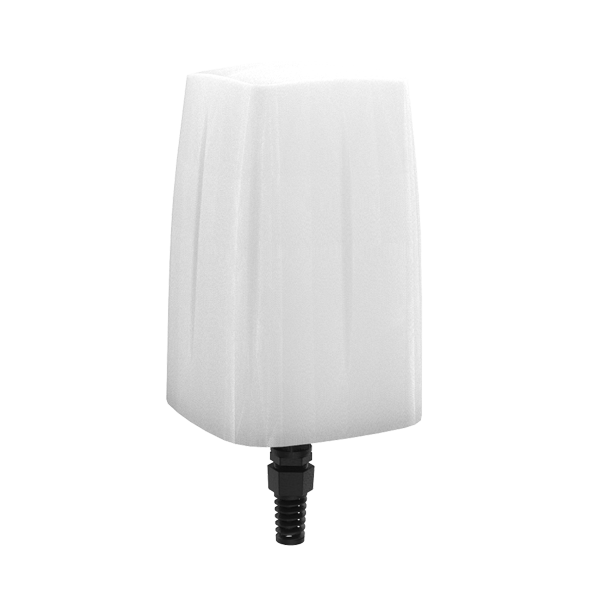

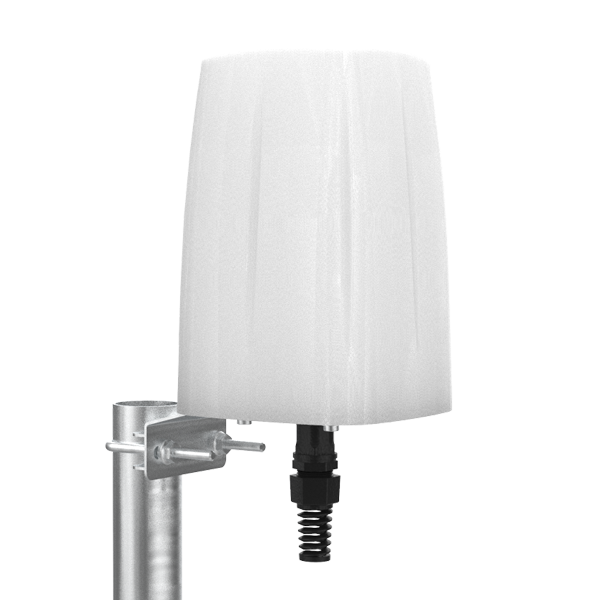

WiSpot is a high-end IP67 enclosure for indoor&outdoor use. It´s predicted for creating hotspots or another distributing systems, that´s a great base for multi-omnidirectional antennas, also the client installations on the moving vehicles. WiSpot has the installation compartment integrated (dimensions 113 x 113 x 50 [mm]). The enclosure can be installed on the mast, wall or the flat surfaces like roofs of the vehicles. The casing is made of plastic ABS material.

ABS
Download
Datasheet
WiSpot
Download
3D Model
WiSpot
Need more information about this product ?
Contact with our
sales manager
Where to buy
Retail price
$0.00
Share this product on
Mechanic specification
Material
ABS (UV Resistant)
Outer dimensions
16 x 24 x 16 cm
6.3 x 9.45 x 6.3 inch
Waterproof level
IP67
Connector
RJ45
Weight
1 kg
Operating temperature
from -40°C to 80°C
from -40°F to 176°F
Outer dimensions
Inner dimensions
Solid WiBOX for any outdoor conditions

Every WiBOX systems are predicted to use outdoor, they are made of UV resistant ABS plastic material, which is also resistant for bad weather conditions like rain, snow, humidity. Special designed sealing systems guarantees IP67 waterproof level. WiBOX systems can work in any weather conditions, temperature range is from -40°C up to 80°C.

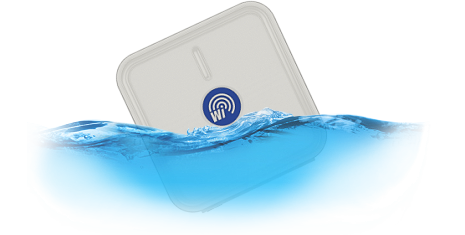

Waterproof WiBOX construction

WiBOX system has certified IP67 waterproof level. It predicts the system to be used in any outdoor applications on the mast or on a wall. WiBOX system is equipped with top quality RJ45 waterproof system or with standard see-thru unit to install Ethernet cable to the WiBOX, keeping the waterproof performances.

Any information provided by Wireless Instruments Sp. z o.o. is believed to be accurate and reliable. All specifications are subject to change without notice.
