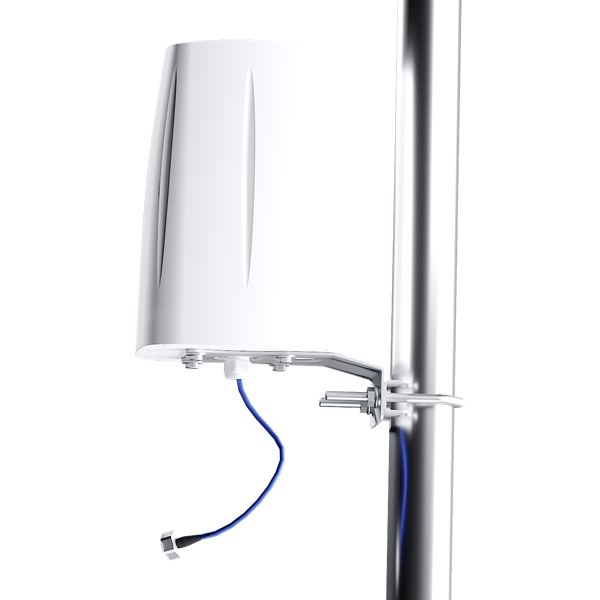

WiSpot OA SMB0727-4V Low PIM, 4.3/10 male

WiSpot OA SMB0727-4V Low PIM, 4.3/10 male connector is an omnidirectional SISO 1x1 antenna, working in Vertical polarization, it´s desired for LTE connections. The antenna can be used for the most popular LTE bands, frequencies 694-2700 MHz. That antenna is predicted to be installed indoor or outdoor on the buildings as the client antenna, as the hotspot or on the moving points like trains, buses, lorries, yachts, boats, company or standard cars to receive Internet by LTE. If You are looking for the solution which will give You the Internet access everywhere, that´s the antenna for You. WiSpot OA SMB0727-4V Low PIM, 4.3/10 can be installed on the mast, a wall or the flat surface like car roofs.



SISO
ABS
DownloadDatasheetWiSpot OA SMB0727-4V Low PIM, 4.3/10 male
Download
Need more information about this product ?
Contact with our
sales manager
Where to buy
Share this product on
Electrical specification
● Band 1
● Band 2
● Band 3
Frequency
●0.694 - 0.96 GHz
●1.7 - 2.2 GHz
●2.2 - 2.7 GHz
Gain
●2 dBi
●2 dBi
●4 dBi
VSWR
●<1.70, max < 2.00
●<1.60, max < 2.00
●<1.60, max < 2.00
Beamwidth
●360°/35°   +/- 5°
●360°/35°   +/- 5°
●360°/35°   +/- 5°
Polarization
●V
●V
●V
Impedance
50 Ω
Max Input Power
50 W
Lighting Protection
No
DC Ground
No
Mechanic specification
Material
ABS
Outer dimensions
16 x 24 x 16 cm
6.3 x 9.45 x 6.3 inch
Connector
RJ45 & 1x4.3/10 male
Weight
1.2 kg
Operating temperature
from from -40°C to 80°C°C to °C
from 32°F to 32°F
Systems
  • LTE band - 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 70, 85
  • WiMAX - 2.3 GHz, 2.5 GHz, 700 MHz
  • 3G - 2100 MHz, 850 MHz, 900 MHz
  • GSM - 1800 MHz, 1900 MHz, 850 MHz
  • RFiD - 2400 - 2483 MHz, 865 - 868 MHz, 902 - 928 MHz
  • ISM - 2400-2483 MHz, 868-870 MHz
  • WLAN - 2.4 GHz
  • Bluetooth - 2400-2483 MHz
Plots
  •
  • No plots available for this antenna.
Solid WiBOX for any outdoor conditions

Every WiBOX systems are predicted to use outdoor, they are made of UV resistant ABS plastic material, which is also resistant for bad weather conditions like rain, snow, humidity. Special designed sealing systems guarantees IP67 waterproof level. WiBOX systems can work in any weather conditions, temperature range is from -40°C up to 80°C.

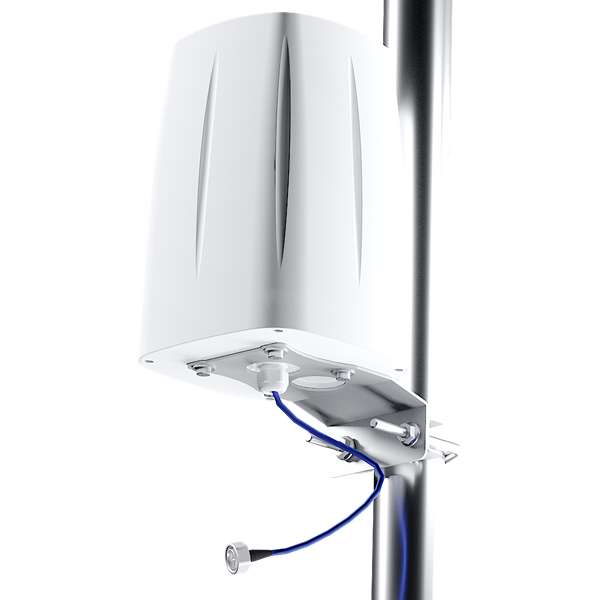

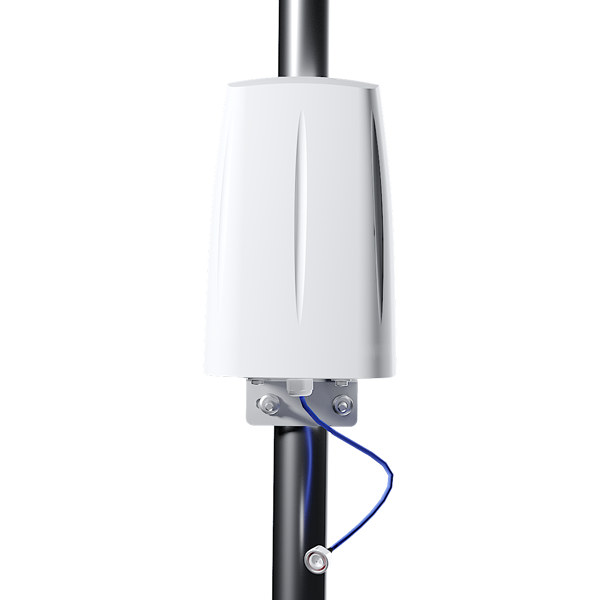

Wall or pole mast mounting

Comprehensiveness of WiBOX system installation, WiBOX system can be installed using WiMount mounting system on a pole mast or a wall.

Any information provided by Wireless Instruments Sp. z o.o. is believed to be accurate and reliable. All specifications are subject to change without notice.
