WiSector D4M64-90-16X SLIM NF

Antenna WiSector D4M64-90-16X SLIM NF is designed specially for the Mimosa A5C. The antenna comes wth No. 4 N Female connectors (MIMO 4x4 - No. 4 ports), the solution offers 85° of coverage with the gain of 16 dBi in slant X polariztion which is recommended by Mimosa technical team. Our solution is based on one antenna 4x4, so You need only one antenna for Mimosa A5C device. The antenna is equipped with the fiber-glass WiMount mounting.

MIMO 4x4
ABS
DownloadDatasheetWiSector D4M64-90-16X SLIM NF
Download
Need more information about this product ?
Contact with our
sales manager
Where to buy
Share this product on
Electrical specification
Frequency
5.8 - 6.5 GHz
Gain
16 dBi
VSWR
<1.60, max < 2.00
Beamwidth
85°/8°   +/- 5°
Polarization
X
Cross-Polar Isolation
> 25 dB
Front-to-Back
> 30 dB
Separation between Connectors
> 25 dB
Impedance
50 Ω
Max Input Power
50 W
Lighting Protection
No
DC Ground
No
Mechanic specification
Material
ABS
Outer dimensions
29.2 x 48.6 x 7.1 cm
11.5 x 19.13 x 2.8 inch
Connector
RJ45 & 4xNf
Weight
0 kg
Operating temperature
from -40 +70°C to °C
from -40°F to 32°F
Mounting Kit
Dimensions
9.9 x 10.5 x 14.8 cm
3.9 x 4.13 x 5.83 inch
Regulation Range
+/- 30°
Weight
0.87 kg
Mast Dimensions Range
25 - 65mm
Material
Polyamide with fiberglass + galvanized steel U-Bolts
Systems
  • LTE band - 46, 47, 255
  • WLAN - 5 GHz
  • WiMAX - 5 GHz
  • RFiD - 5725 - 5875 MHz
  • ISM - 5725-5875 MHz
Compatible with
  • MIMOSA - A5C
Plots

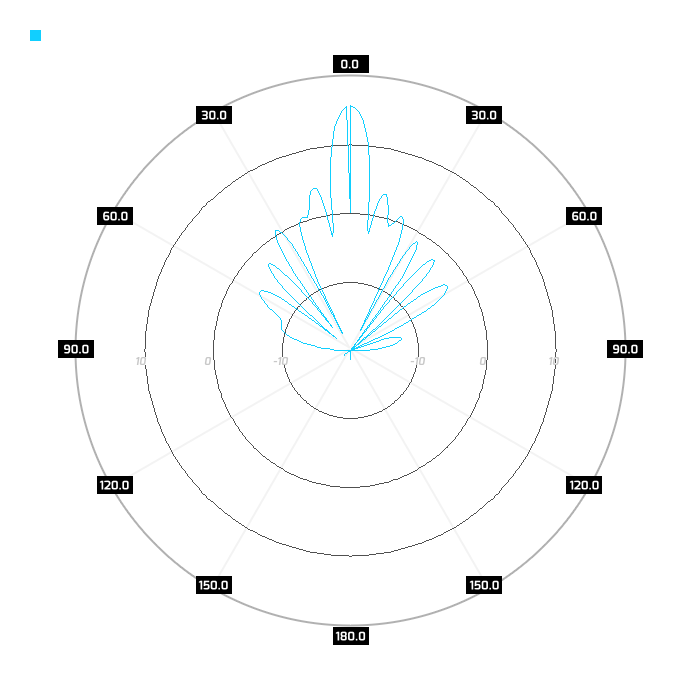

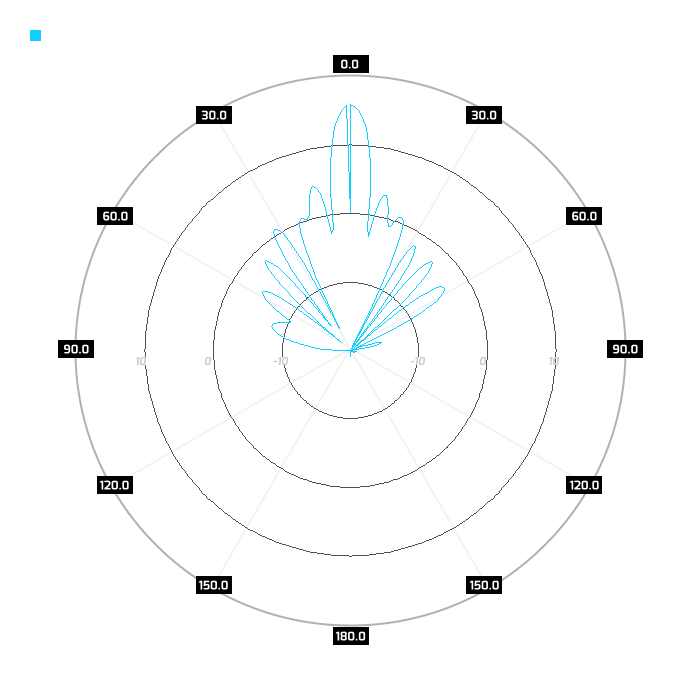

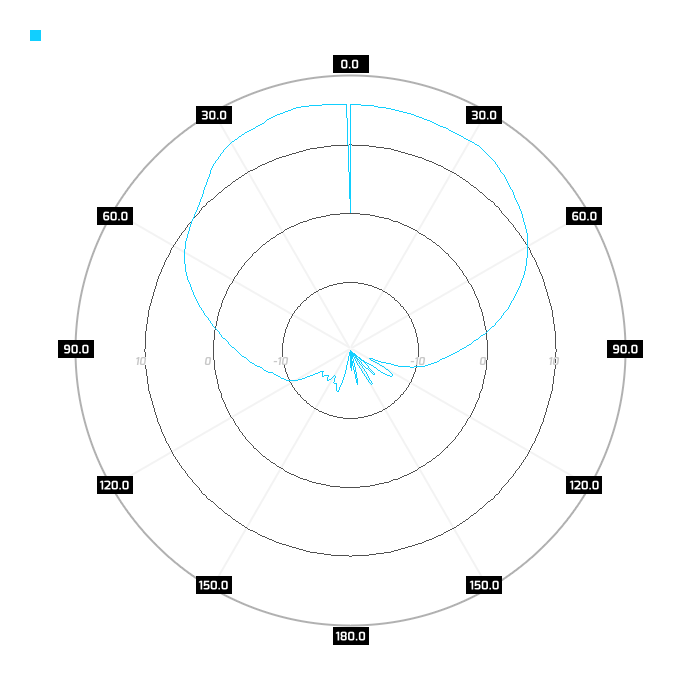

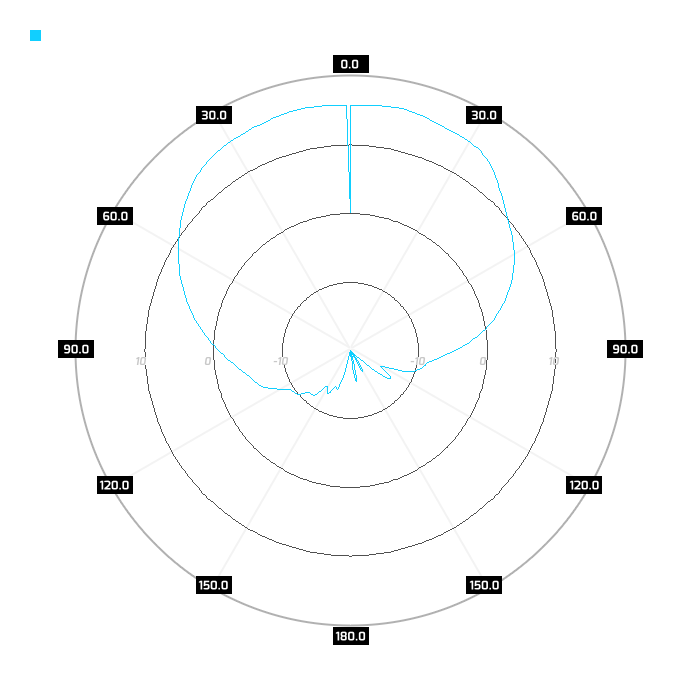

Port 1, azimuthPort 1, elev.Port 2, azimuthPort 2, elev.
Solid WiBOX for any outdoor conditions

Every WiBOX systems are predicted to use outdoor, they are made of UV resistant ABS plastic material, which is also resistant for bad weather conditions like rain, snow, humidity. Special designed sealing systems guarantees IP67 waterproof level. WiBOX systems can work in any weather conditions, temperature range is from -40°C up to 80°C.

Wall or pole mast mounting

Comprehensiveness of WiBOX system installation, WiBOX system can be installed using WiMount mounting system on a pole mast or a wall.

Waterproof WiBOX construction

WiBOX system has certified IP67 waterproof level. It predicts the system to be used in any outdoor applications on the mast or on a wall. WiBOX system is equipped with top quality RJ45 waterproof system or with standard see-thru unit to install Ethernet cable to the WiBOX, keeping the waterproof performances.

WiBOX System Integration

WiBOX system is desired for building systems composed of few antenna systems. To realize this possibility, there are 4  additional holes for another antenna connectors.

Special mounting system
WiMount

WiMount bracket is designed to connect stability and attractive shape in one product. This aesthetic design is made of a special fiberglass reinforced plastic, which is rigid even in extremely weather conditions. Innovative shape and the plastic instead of metal bracket, offers better performances and no rust during all life-time. WiMount enables the antenna position aligning in two polarizations.

Any information provided by Wireless Instruments Sp. z o.o. is believed to be accurate and reliable. All specifications are subject to change without notice.
