WiPanel PA 13-14

WiPanel PA 13-14 is designed mainly for non-standard systems (including defense applications) working in the frequency band 1240-1400 MHz. The antenna gain is 14 dBi, the antenna is in SISO type, so works in one polarization. There are two available polarizations H or V, depending on antenna settings on the mast. The system can operate indoor and outdoor (IP67). The antenna is housed in the top quality WiBOX Medium front cover, the antenna is provided with the metal mounting system. It comes with 1 x N Female connector.

SISO
ABS
DownloadDatasheetWiPanel PA 13-14
Download
Need more information about this product ?
Contact with our
sales manager
Where to buy
Share this product on
Electrical specification
Frequency
1.24 - 1.41 GHz
Gain
14 dBi
VSWR
<1.40, max < 1.50
Beamwidth
30°/30°   +/- 2°
Polarization
V,H
Front-to-Back
> 25 dB   +/- 3 dB
Impedance
50 Ω
Max Input Power
50 W
Lighting Protection
No
DC Ground
No
Mechanic specification
Material
ABS
Outer dimensions
392 x 396 x 9.5 cm
154.33 x 155.91 x 3.74 inch
Connector
RJ45 & 1xN
Weight
0 kg
Operating temperature
from -40 + 70°C to °C
from -40°F to 32°F
Mounting Kit
Dimensions
9 x 12 x 15 cm
3.54 x 4.72 x 5.91 inch
Regulation Range
°
Weight
0 kg
Mast Dimensions Range
mm
Material
stainless steel
Systems
  • WiMAX - 1.4 GHz

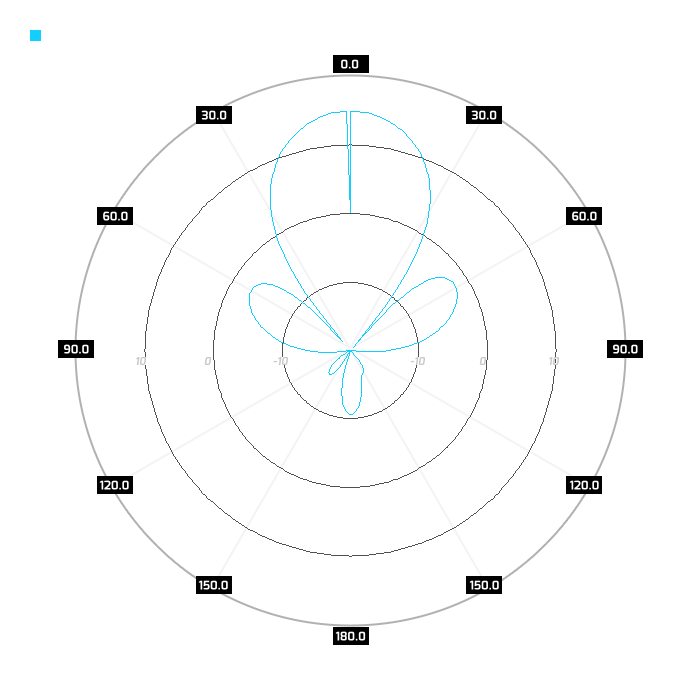

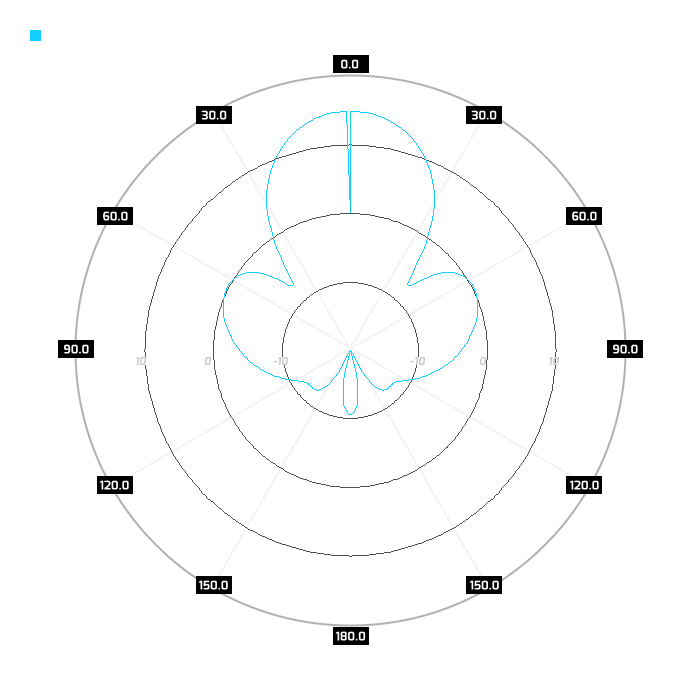

Plots
azimuthelev.
Wall or pole mast mounting

Comprehensiveness of WiBOX system installation, WiBOX system can be installed using WiMount mounting system on a pole mast or a wall.

Any information provided by Wireless Instruments Sp. z o.o. is believed to be accurate and reliable. All specifications are subject to change without notice.
