WiOmni 5G/LTE MIMO 2x2, ver. US

WiOmni 5G/LTE omnidirectional MIMO 2x2 is ultra wideband LTE Outdoor antenna. It´s primary designed for LTE/5G/3G/2G devices which require high efficiency connections. The antenna covers many LTE bands including the new Extended LTE Band 71, frequencies: 617 - 3800MHz. The mounting bracket allows the antenna to be installed on the buildings (on the pole or on the wall) as the client antenna or on the moving points like trains, buses, lorries, yachts, boats to receive Internet by LTE/5G/3G/2G. It´s ideal solution to use with all industrial and domestic 2x2 LTE modems and routers like: Teltonika, DIGI, Mikrotik, Robustel, Cisco, etc.

MIMO 2x2
ABS
DownloadDatasheetWiOmni 5G/LTE MIMO 2x2, ver. US
Download
Need more information about this product ?
Contact with our
sales manager
Where to buy
Share this product on
Electrical specification
● Band 1
● Band 2
● Band 3
Frequency
●0.617 - 0.96 GHz
●1.7 - 2.7 GHz
●3.3 - 3.8 GHz
Gain
●3 dBi
●4 dBi
●4 dBi
VSWR
●<1.80, max < 2.00
●<1.80, max < 2.00
●<1.80, max < 2.00
Beamwidth
●360°/35°   +/- 5°
●360°/35°   +/- 5°
●360°/35°   +/- 5°
Polarization
●V
●V
●V
Impedance
50 Ω
Max Input Power
50 W
Lighting Protection
No
DC Ground
No
Mechanic specification
Material
ABS
Outer dimensions
16 x 24 x 16 cm
6.3 x 9.45 x 6.3 inch
Connector
RJ45 & 2xSMA
Weight
1.5 kg
Operating temperature
from -40°C to 75°C
from -40°F to 167°F
Mounting Kit
Dimensions
9 x 12 x 15 cm
3.54 x 4.72 x 5.91 inch
Regulation Range
°
Weight
0 kg
Mast Dimensions Range
mm
Material
stainless steel
Systems
  • LTE band - 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 22, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 52, 53, 65, 66, 67, 68, 69, 70, 71, 85
  • WiMAX - 2.3 GHz, 2.5 GHz, 3.5 GHz, 700 MHz
  • 3G - 2100 MHz, 850 MHz, 900 MHz
  • GSM - 1800 MHz, 1900 MHz, 850 MHz
  • RFiD - 2400 - 2483 MHz, 865 - 868 MHz, 902 - 928 MHz
  • ISM - 2400-2483 MHz, 868-870 MHz
  • WLAN - 2.4 GHz, 3.6 GHz
  • Bluetooth - 2400-2483 MHz

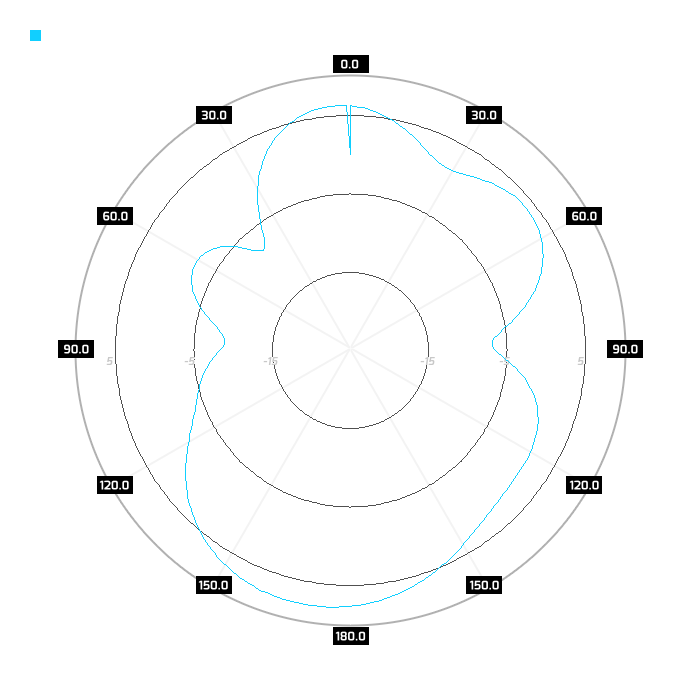

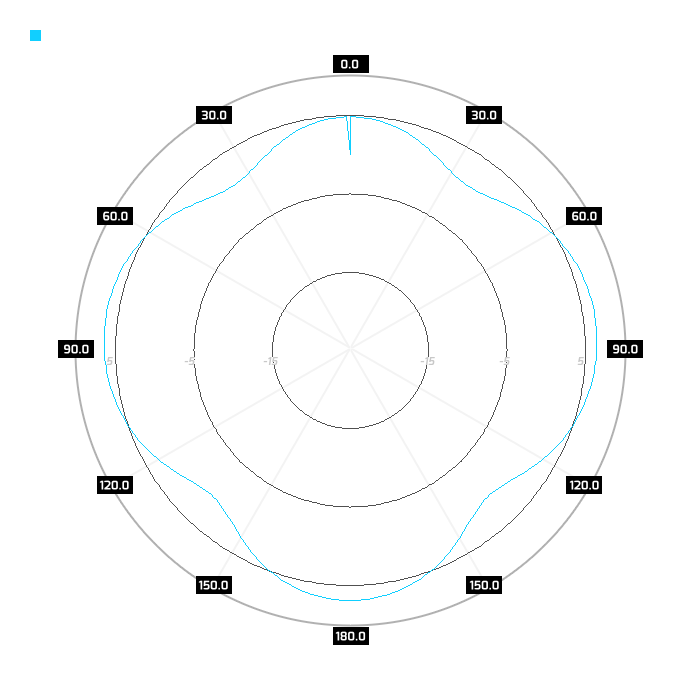

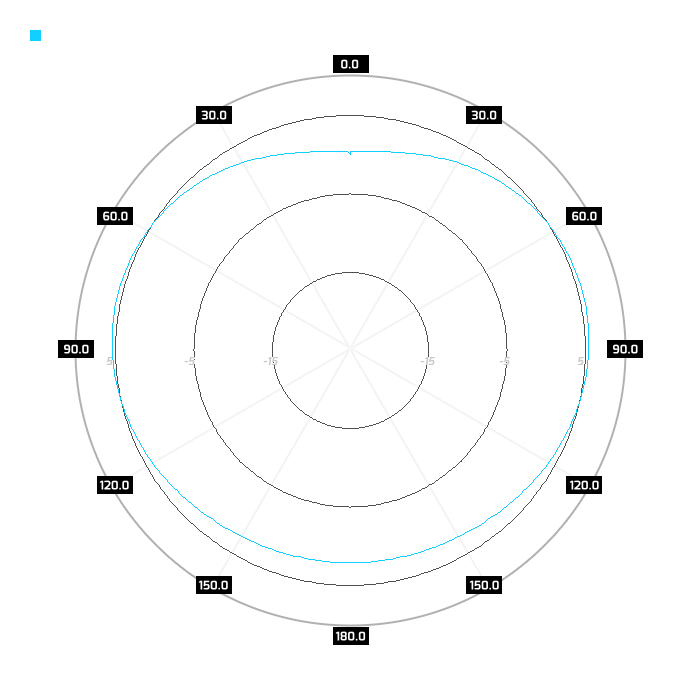

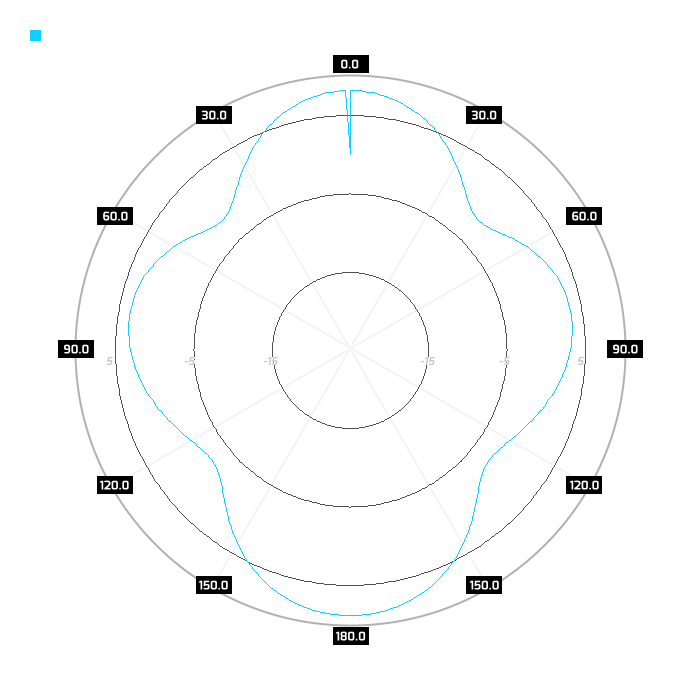

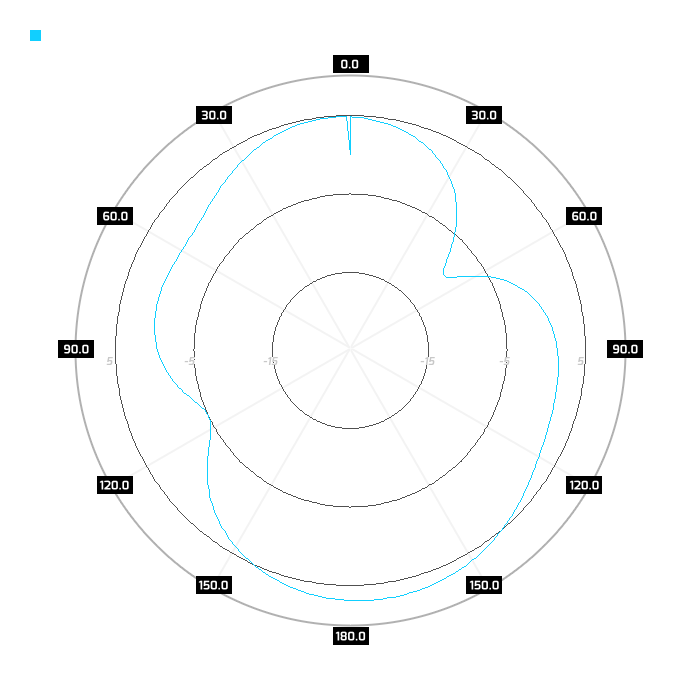

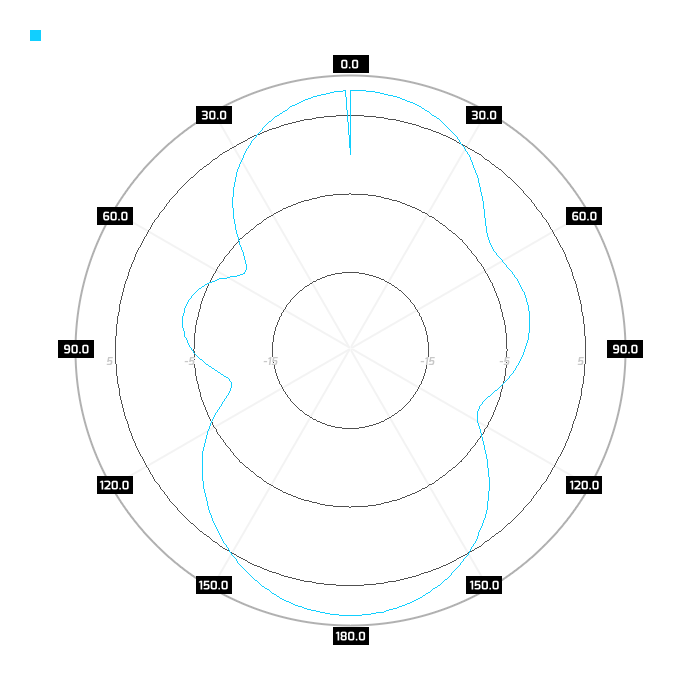

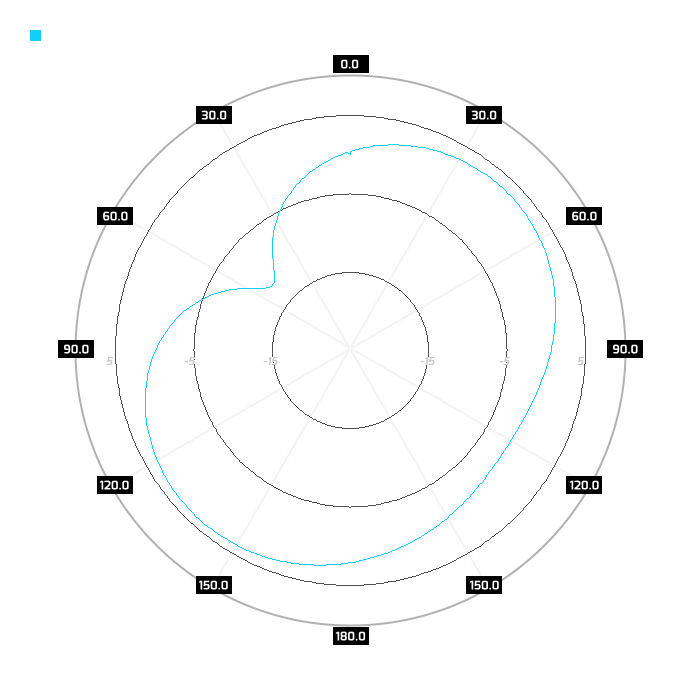

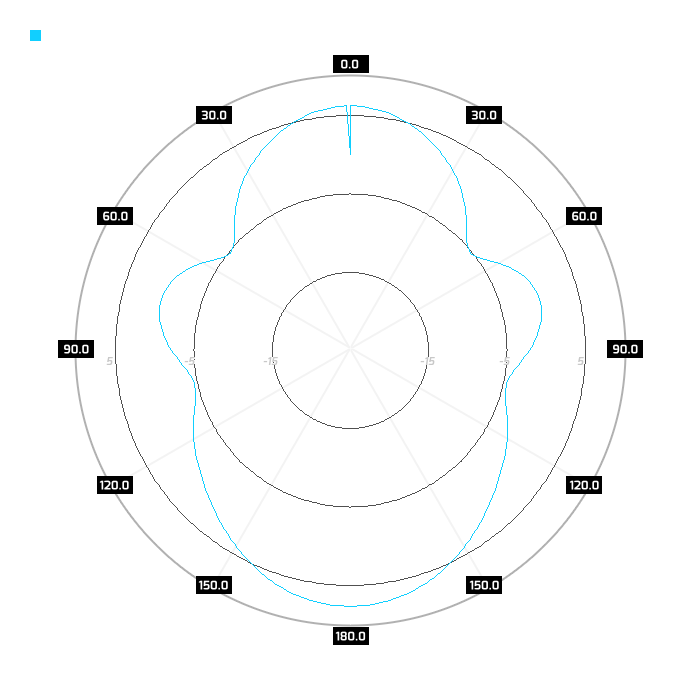

Plots
800 Mhz1900 MHz2500 MHz3550 MHz800 MHz1900 MHz2500 MHz3550 MHz
WiSpot + 2x SMA
Big, ergonomic box

Big and voluminous BOX in WiBOX systems enables the possibility to instal different radio equipment inside.

Outer dimensions
Inner dimensions
Solid WiBOX for any outdoor conditions

Every WiBOX systems are predicted to use outdoor, they are made of UV resistant ABS plastic material, which is also resistant for bad weather conditions like rain, snow, humidity. Special designed sealing systems guarantees IP67 waterproof level. WiBOX systems can work in any weather conditions, temperature range is from -40°C up to 80°C.

Waterproof WiBOX construction

WiBOX system has certified IP67 waterproof level. It predicts the system to be used in any outdoor applications on the mast or on a wall. WiBOX system is equipped with top quality RJ45 waterproof system or with standard see-thru unit to install Ethernet cable to the WiBOX, keeping the waterproof performances.

Any information provided by Wireless Instruments Sp. z o.o. is believed to be accurate and reliable. All specifications are subject to change without notice.
