WiBOX SA M4DBC245-35-15VV Slim NF

Antenna WiBOX SA M4DBC245-35-15VV Slim NF MIMO4x4 is dual-band 2,4&5 GHz 4-patch directional high-performance antenna in one radome with outer N Female connectors. Antenna work on 2,4&5 GHz simultaneously (concurrent dual-band) and it’s predicted mainly for WiFi in high or medium density applications. SA M4DBC245-35-15VV Slim NF comes with No. 4 N Female connectors located on the bottom part of WiBOX system. It’s predicted for building small cells in high-density environments like for stadiums, lecture halls, concert halls. The antenna is DC Grounded and contains special WiMount mounting kit powered by Wireless Instruments.

MIMO 4x4
ABS
Need more information about this product ?
Contact with our
sales manager
Where to buy
Share this product on
Electrical specification
Band 1
Band 2
Frequency
2.4 - 2.5 GHz
5 - 6 GHz
Gain
11 dBi
15 dBi
VSWR
<1.60, max < 2.00
<1.60, max < 2.00
Beamwidth
40°/80°
25°/35°
Polarization
V
V
Cross-Polar Isolation
>40 dB
Front-to-Back
> 25 dB
> 25 dB
Impedance
50 Ω
Max Input Power
50 W
Lighting Protection
No
DC Ground
Yes
Mechanic specification
Material
ABS
Outer dimensions
39.2 x 39.6 x 7.7 cm
15.43 x 15.59 x 3.03 inch
Connector
RJ45 & 1xNf
Weight
0 kg
Operating temperature
from -40°C to 70°C
from -40°F to 158°F
Systems
  • LTE band - 40, 41, 46, 47, 53, 252, 255
  • WLAN - 2.4 GHz, 5 GHz
  • WiMAX - 2.3 GHz, 2.5 GHz, 5 GHz
  • RFiD - 2400 - 2483 MHz, 5725 - 5875 MHz
  • Bluetooth - 2400-2483 MHz
  • ISM - 2400-2483 MHz, 5725-5875 MHz

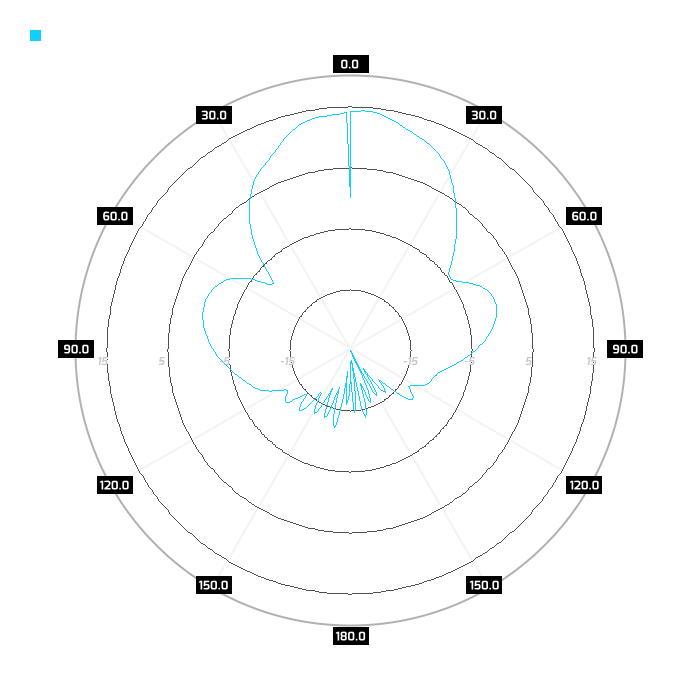

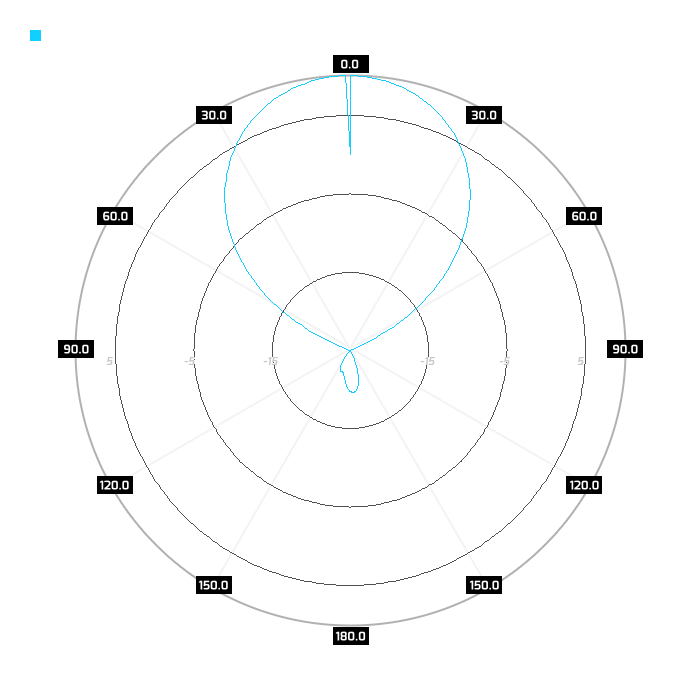

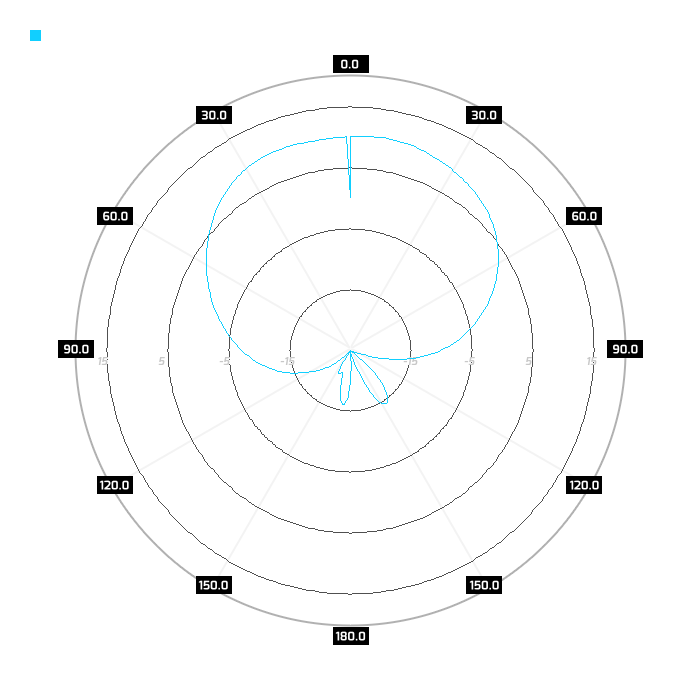

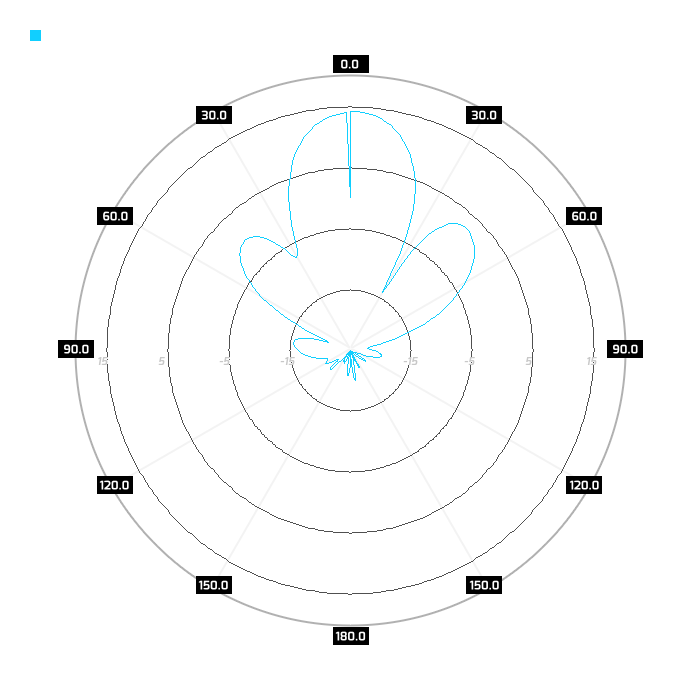

Plots
Solid WiBOX for any outdoor conditions

Every WiBOX systems are predicted to use outdoor, they are made of UV resistant ABS plastic material, which is also resistant for bad weather conditions like rain, snow, humidity. Special designed sealing systems guarantees IP67 waterproof level. WiBOX systems can work in any weather conditions, temperature range is from -40°C up to 80°C.

Wall or pole mast mounting

Comprehensiveness of WiBOX system installation, WiBOX system can be installed using WiMount mounting system on a pole mast or a wall.

Waterproof WiBOX construction

WiBOX system has certified IP67 waterproof level. It predicts the system to be used in any outdoor applications on the mast or on a wall. WiBOX system is equipped with top quality RJ45 waterproof system or with standard see-thru unit to install Ethernet cable to the WiBOX, keeping the waterproof performances.

WiBOX System Integration

WiBOX system is desired for building systems composed of few antenna systems. To realize this possibility, there are 4  additional holes for another antenna connectors.

Special mounting system
WiMount

WiMount bracket is designed to connect stability and attractive shape in one product. This aesthetic design is made of a special fiberglass reinforced plastic, which is rigid even in extremely weather conditions. Innovative shape and the plastic instead of metal bracket, offers better performances and no rust during all life-time. WiMount enables the antenna position aligning in two polarizations.

Any information provided by Wireless Instruments Sp. z o.o. is believed to be accurate and reliable. All specifications are subject to change without notice.
