WiBOX SA D8M49-90-17X SLIM SMA

Antenna WiBOX SA D8M5-90-17X SLIM SMA is designed specially for the Mimosa A5C. The antenna comes wth No. 8 SMA Female connectors (MIMO 8x8 - No. 8 ports), the solution offers 90° of coverage with the gain of 17 dBi in X polariztion which is recommended by Mimosa technical team. You need only one antenna for Mimosa A5C. The antenna is equipped with the fiber-glass WiMount mounting. Additional 3dBi of beam forming gain achieved by using the Mimosa A5C. Include special mounting kit for 2x Mimosa A5C

MIMO 4x4

DownloadDatasheetWiBOX SA D8M49-90-17X SLIM SMA

Download

Need more information about this product ?

Contact with our

sales manager

Chat on Skype

or Write to us!

Where to buy

Share this product on

Electrical specification

Frequency

4.9 - 5.9 GHz

Gain

17 dBi ±1

VSWR

<1.60, max < 2.00

Beamwidth

90°/8°

Polarization

Front-to-Back

> 25 dB

Separation between Connectors

> 25 dB

Impedance

50 Ω

Max Input Power

50 W

Lighting Protection

DC Ground

Yes

Mechanic specification

Material

ABS

Outer dimensions

39.2 x 39.6 x 7.7 cm
15.43 x 15.59 x 3.03 inch

Connector

RJ45 & 8xSMA

Weight

0 kg

Operating temperature

from -40°C to 70°C
from -40°F to 158°F

Mounting Kit

Dimensions

9.9 x 10.5 x 14.8 cm
3.9 x 4.13 x 5.83 inch

Regulation Range

+/- 30°

Weight

0.87 kg

Mast Dimensions Range

25 - 65mm

Material

Polyamide with fiberglass + galvanized steel U-Bolts

Systems

LTE band - 46, 47, 252, 255
WLAN - 5 GHz
WiMAX - 5 GHz
RFiD - 5725 - 5875 MHz
ISM - 5725-5875 MHz

Compatible with

MIMOSA - A5C

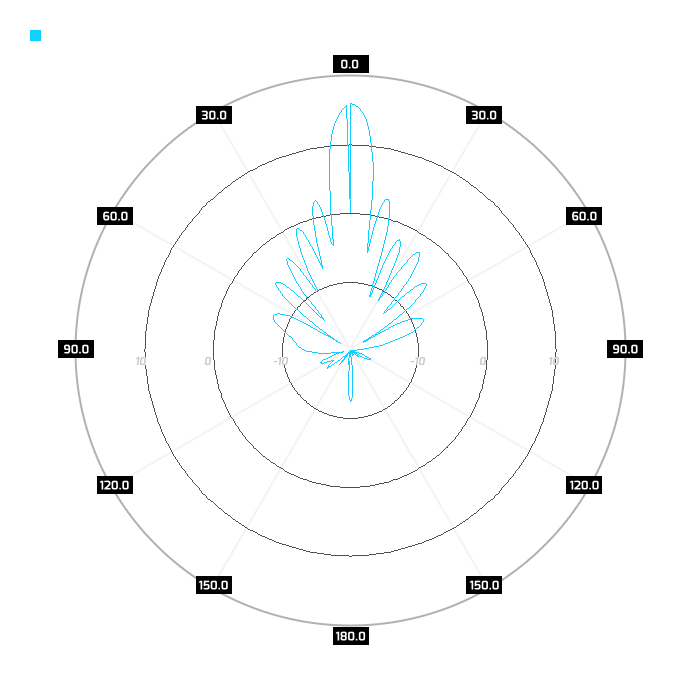

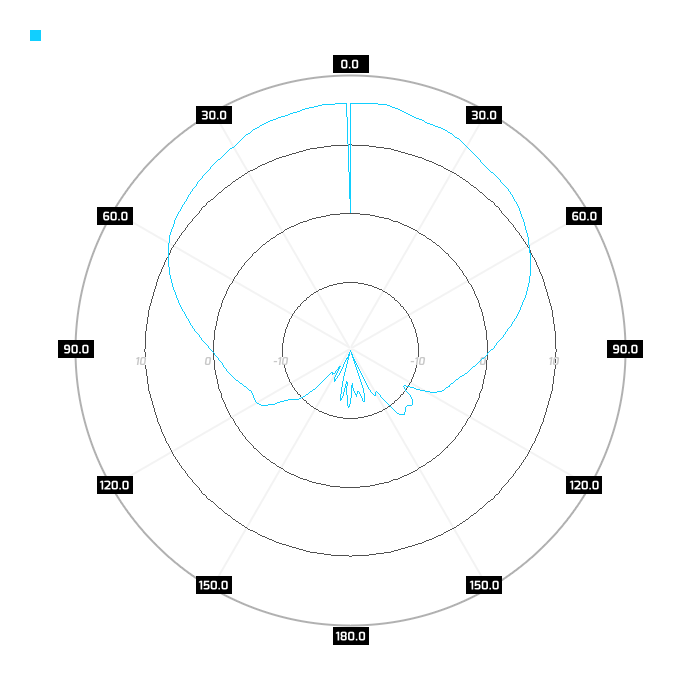

Plots

Solid WiBOX for any outdoor conditions

Every WiBOX systems are predicted to use outdoor, they are made of UV resistant ABS plastic material, which is also resistant for bad weather conditions like rain, snow, humidity. Special designed sealing systems guarantees IP67 waterproof level. WiBOX systems can work in any weather conditions, temperature range is from -40°C up to 80°C.

Wall or pole mast mounting

Comprehensiveness of WiBOX system installation, WiBOX system can be installed using WiMount mounting system on a pole mast or a wall.

Waterproof WiBOX construction

WiBOX system has certified IP67 waterproof level. It predicts the system to be used in any outdoor applications on the mast or on a wall. WiBOX system is equipped with top quality RJ45 waterproof system or with standard see-thru unit to install Ethernet cable to the WiBOX, keeping the waterproof performances.

WiBOX System Integration

WiBOX system is desired for building systems composed of few antenna systems. To realize this possibility, there are 4 additional holes for another antenna connectors.

Special mounting system

WiMount

WiMount bracket is designed to connect stability and attractive shape in one product. This aesthetic design is made of a special fiberglass reinforced plastic, which is rigid even in extremely weather conditions. Innovative shape and the plastic instead of metal bracket, offers better performances and no rust during all life-time. WiMount enables the antenna position aligning in two polarizations.

See more details
