WiBOX SA D4M3-90-16X, LTE cat.9

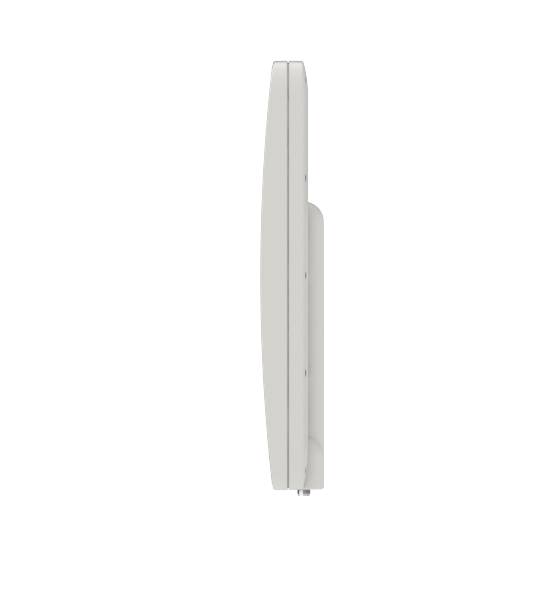

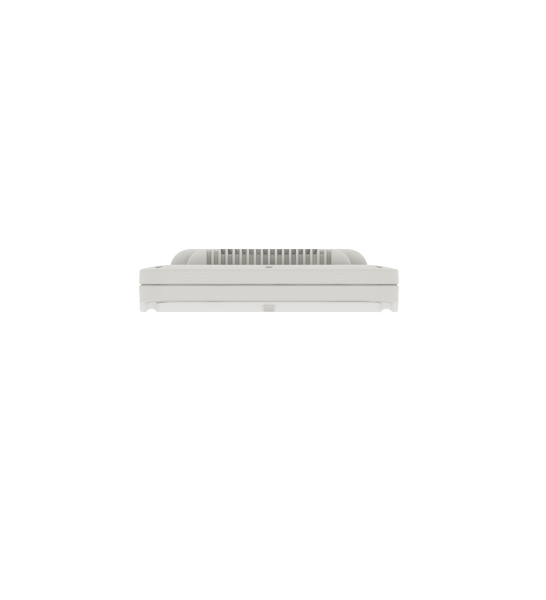

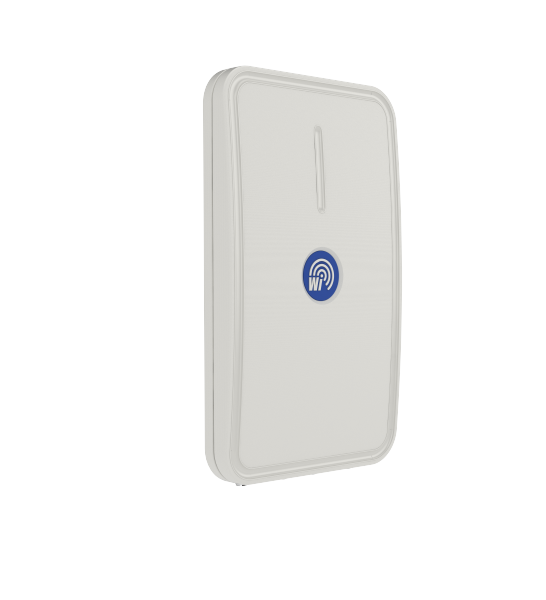

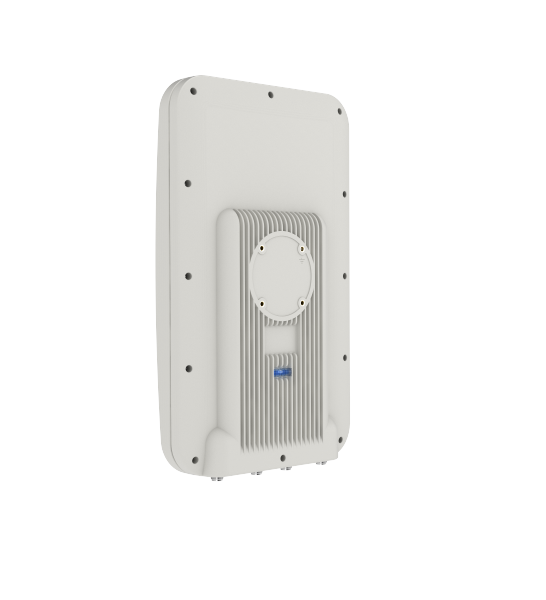

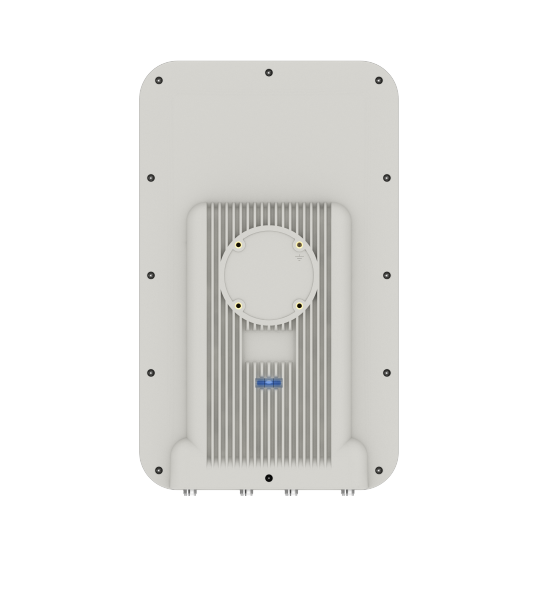

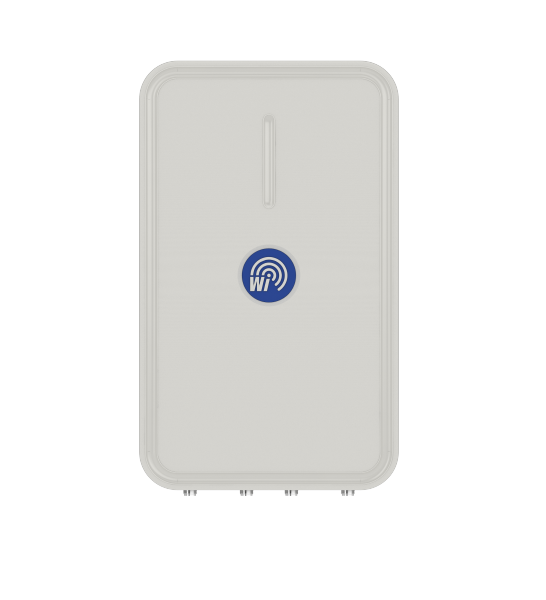

WiBOX SA D4M3-90-16X is an X-polarity (slant +/-45) MIMO 4x4 sector antenna operating at a frequency range of: 3.4 - 3.8 GHz with 16 dBi gain. The antenna is predicted for point-to-multipoint (PMP) connections, can be used for covering medium and big areas as a base station for client stations or as the hotspot in schools, halls, stadiums or another public places. It can work indoor and outdoor (IP 67). It works with WiMAX and LTE cat. 9 (bands 22, 42, 43) systems. The antenna is integrated with the top quality WiBOX Extra Large Slim box system.

MIMO 4x4
ABS
DownloadDatasheetWiBOX SA D4M3-90-16X, LTE cat.9
Download
Need more information about this product ?
Contact with our
sales manager
Where to buy
Share this product on
Electrical specification
Frequency
3.4 - 3.8 GHz
Gain
16 dBi ±1
VSWR
<1.60, max < 2.00
Beamwidth
8°/90°
Polarization
X
Front-to-Back
> 30 dB
Separation between Connectors
> 25 dB
Impedance
50 Ω
Max Input Power
50 W
Lighting Protection
No
DC Ground
No
Mechanic specification
Material
ABS
Outer dimensions
29.2 x 48.6 x 7.1 cm
11.5 x 19.13 x 2.8 inch
Connector
RJ45 & 4xSMA
Weight
2.1 kg
Operating temperature
from -40 +70°C to °C
from -40°F to 32°F
Mounting Kit
Dimensions
9.9 x 10.5 x 14.8 cm
3.9 x 4.13 x 5.83 inch
Regulation Range
+/- 30°
Weight
0.87 kg
Mast Dimensions Range
25 - 65mm
Material
Polyamide with fiberglass + galvanized steel U-Bolts
Systems
  • LTE band - 22, 42, 43, 48, 49, 52
  • WLAN - 3.6 GHz
  • WiMAX - 3.5 GHz

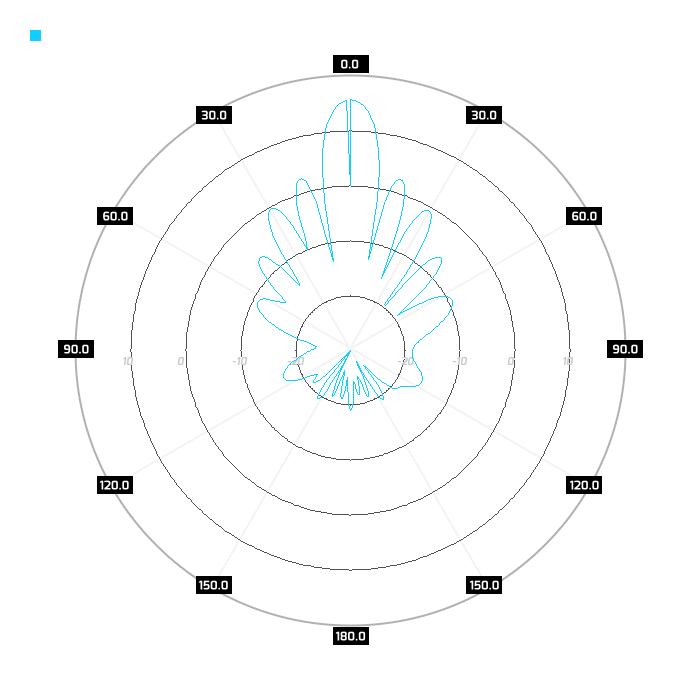

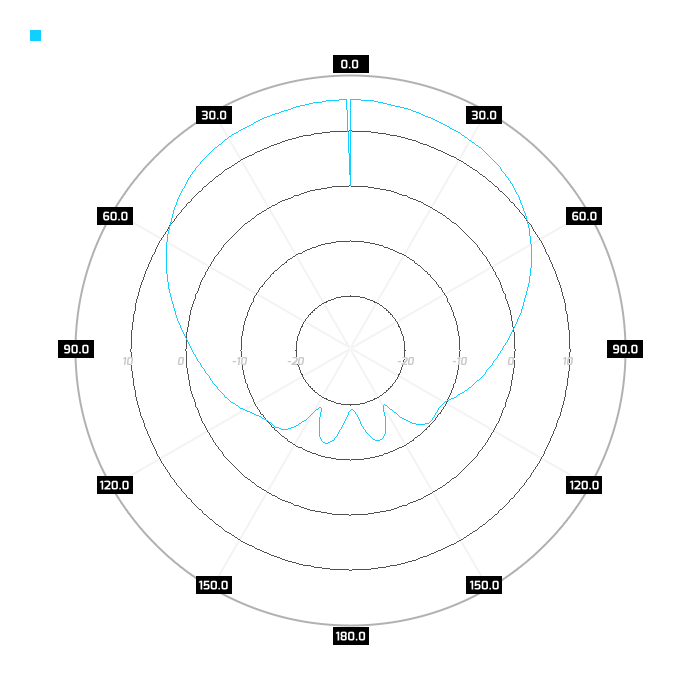

Plots
WiBOX Extra Large SLIM
Big, ergonomic box

Big and voluminous BOX in WiBOX systems enables the possibility to instal different radio equipment inside.

Outer dimensions
Inner dimensions
Solid WiBOX for any outdoor conditions

Every WiBOX systems are predicted to use outdoor, they are made of UV resistant ABS plastic material, which is also resistant for bad weather conditions like rain, snow, humidity. Special designed sealing systems guarantees IP67 waterproof level. WiBOX systems can work in any weather conditions, temperature range is from -40°C up to 80°C.

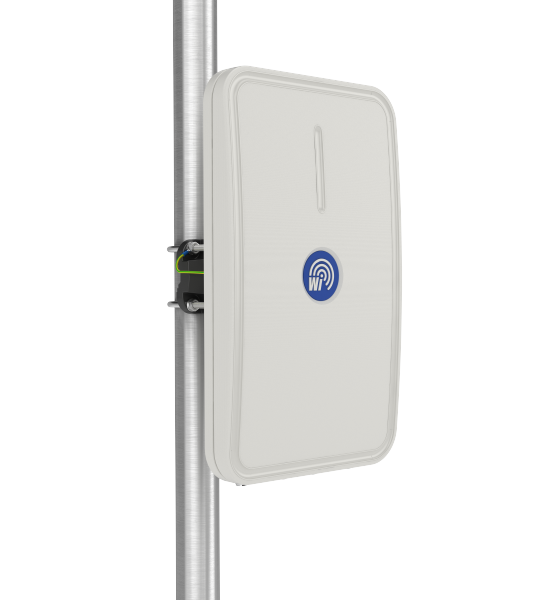

Wall or pole mast mounting

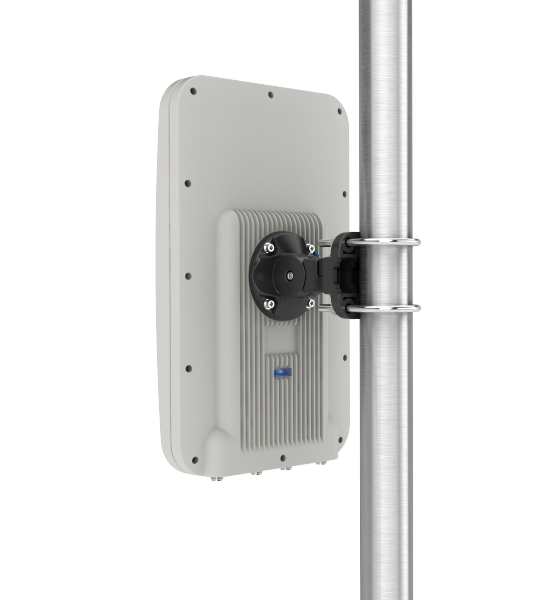

Comprehensiveness of WiBOX system installation, WiBOX system can be installed using WiMount mounting system on a pole mast or a wall.

Waterproof WiBOX construction

WiBOX system has certified IP67 waterproof level. It predicts the system to be used in any outdoor applications on the mast or on a wall. WiBOX system is equipped with top quality RJ45 waterproof system or with standard see-thru unit to install Ethernet cable to the WiBOX, keeping the waterproof performances.

WiBOX System Integration

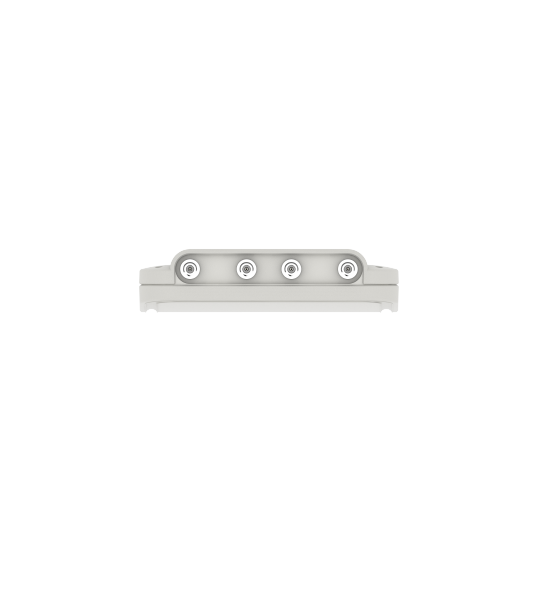

WiBOX system is desired for building systems composed of few antenna systems. To realize this possibility, there are 4  additional holes for another antenna connectors.

Special mounting system
WiMount

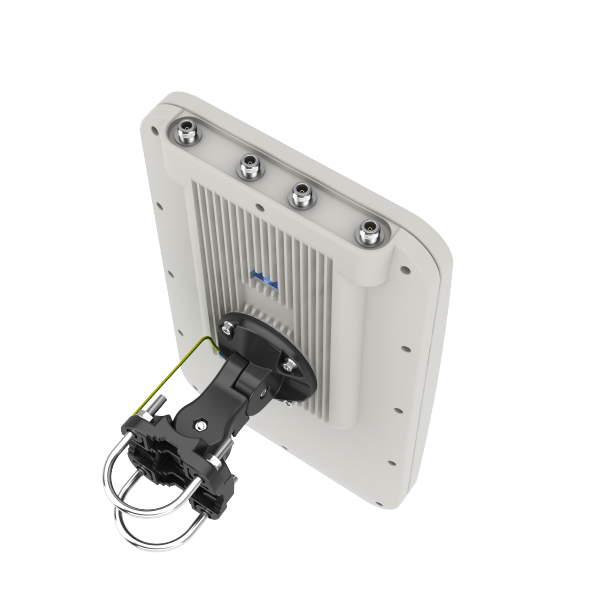

WiMount bracket is designed to connect stability and attractive shape in one product. This aesthetic design is made of a special fiberglass reinforced plastic, which is rigid even in extremely weather conditions. Innovative shape and the plastic instead of metal bracket, offers better performances and no rust during all life-time. WiMount enables the antenna position aligning in two polarizations.
