PTP/client antennaPTP/client antennaPTP/client antenna
PTP/client antenna
New

WiBOX SA D3M24-90-8VHV Slim Nf

MIMO 3x3
ABS
Need more information about this product ?
Contact with our
sales manager
Where to buy
Share this product on
Electrical specification
Frequency
2.4 - 2.5 GHz
Gain
8 dBi
VSWR
<1.60, max < 1.80
Beamwidth
90°/0°
Polarization
V,H&V
Front-to-Back
> 20 dB
Impedance
50 Ω
Max Input Power
50 W
Lighting Protection
No
DC Ground
No
Mechanic specification
Material
ABS
Outer dimensions
27.2 x 27.6 x 6.2 cm
10.71 x 10.87 x 2.44 inch
Connector
3xNf
Weight
2.5 kg
Operating temperature
from -40 +70°C to °C
from -40°F to 32°F
Mounting Kit
Dimensions
9.9 x 10.5 x 14.8 cm
3.9 x 4.13 x 5.83 inch
Regulation Range
+/- 30°
Weight
0.87 kg
Mast Dimensions Range
25 - 65mm
Material
Polyamide with fiberglass + galvanized steel U-Bolts
Systems
  • LTE band - 40, 41, 53
  • WLAN - 2.4 GHz
  • WiMAX - 2.3 GHz, 2.5 GHz
  • RFiD - 2400 - 2483 MHz
  • Bluetooth - 2400-2483 MHz
  • ISM - 2400-2483 MHz
Plots

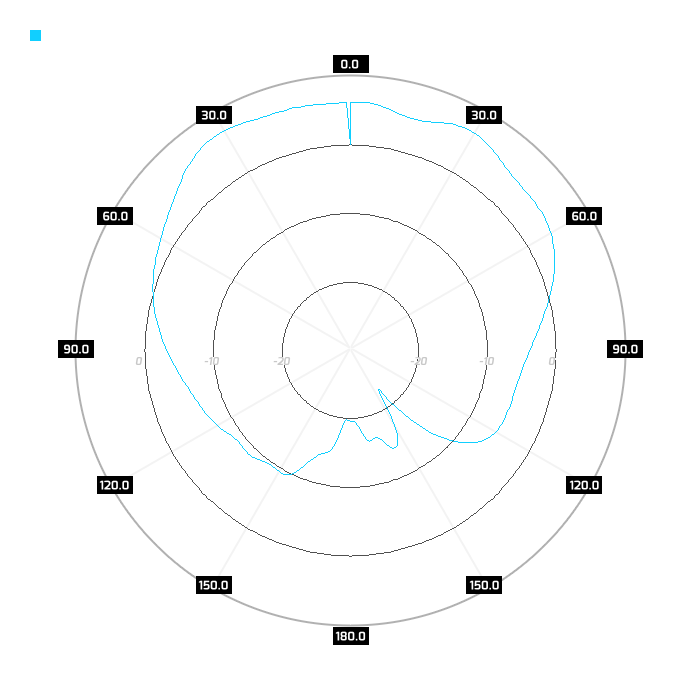

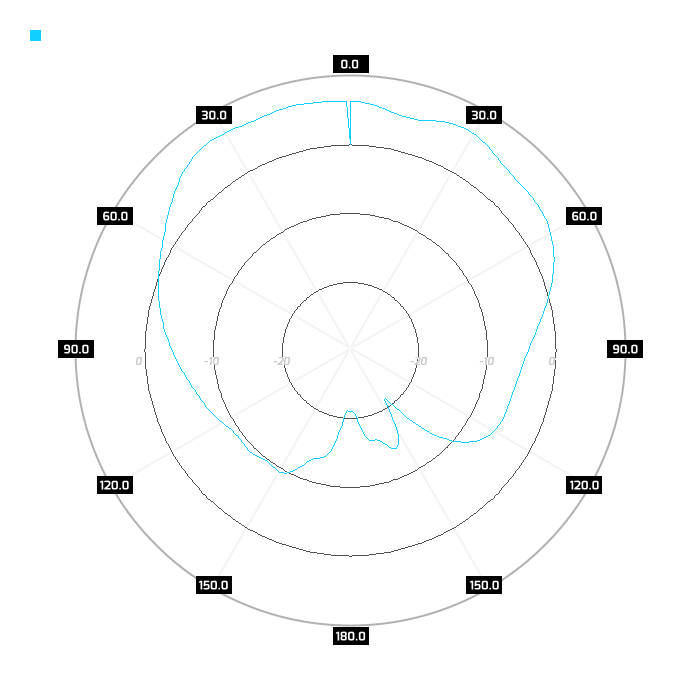

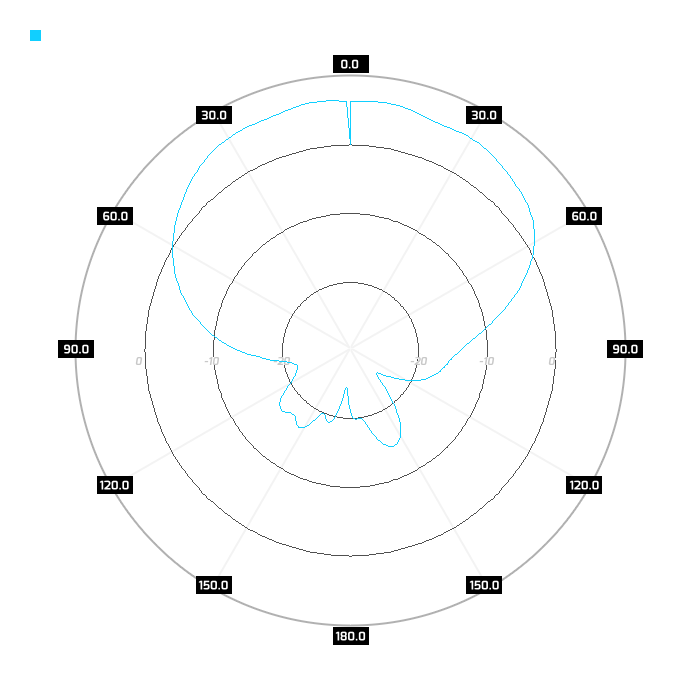

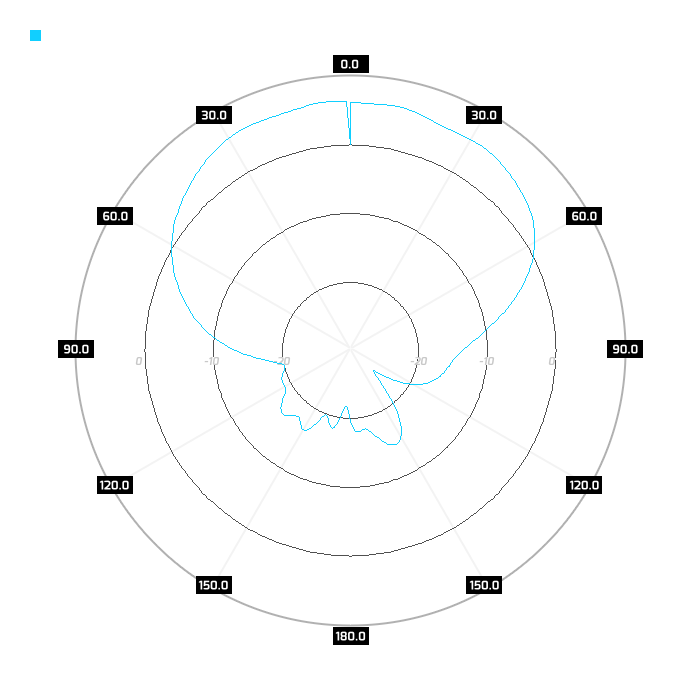

pol. H, azimuthpol. H, elev.pol. V, azimuthpol. V, elev.
Solid WiBOX for any outdoor conditions

Every WiBOX systems are predicted to use outdoor, they are made of UV resistant ABS plastic material, which is also resistant for bad weather conditions like rain, snow, humidity. Special designed sealing systems guarantees IP67 waterproof level. WiBOX systems can work in any weather conditions, temperature range is from -40°C up to 80°C.

Wall or pole mast mounting

Comprehensiveness of WiBOX system installation, WiBOX system can be installed using WiMount mounting system on a pole mast or a wall.

Special mounting system
WiMount

WiMount bracket is designed to connect stability and attractive shape in one product. This aesthetic design is made of a special fiberglass reinforced plastic, which is rigid even in extremely weather conditions. Innovative shape and the plastic instead of metal bracket, offers better performances and no rust during all life-time. WiMount enables the antenna position aligning in two polarizations.

Any information provided by Wireless Instruments Sp. z o.o. is believed to be accurate and reliable. All specifications are subject to change without notice.
