WiBOX PA MMB0727-5V Low PIM, 2x 4.3/10 male

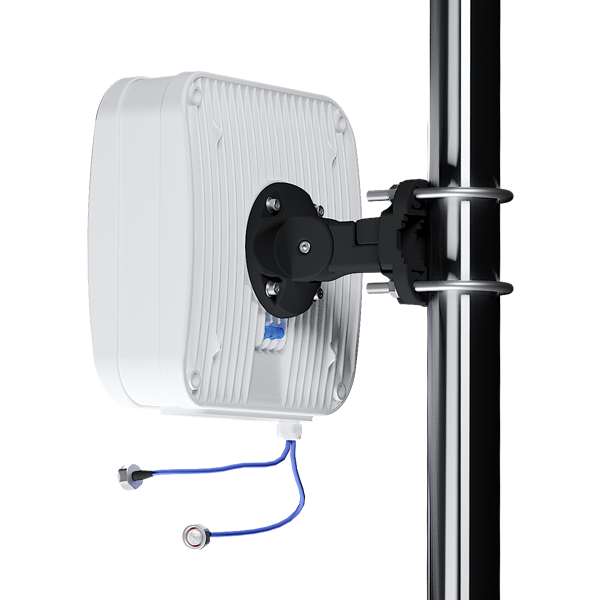

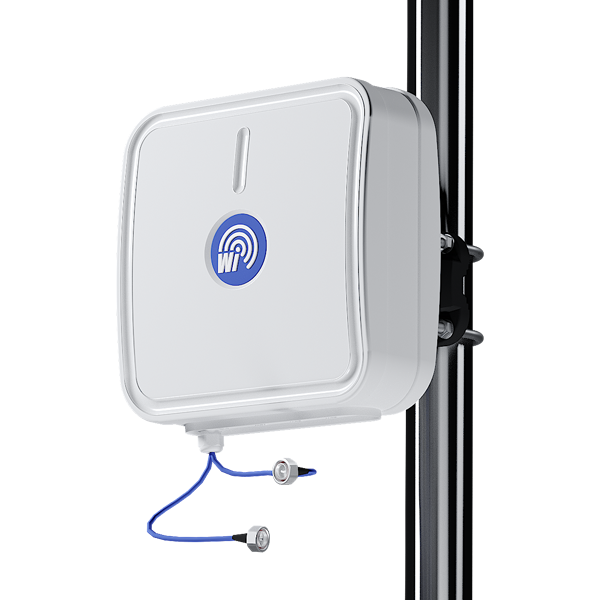

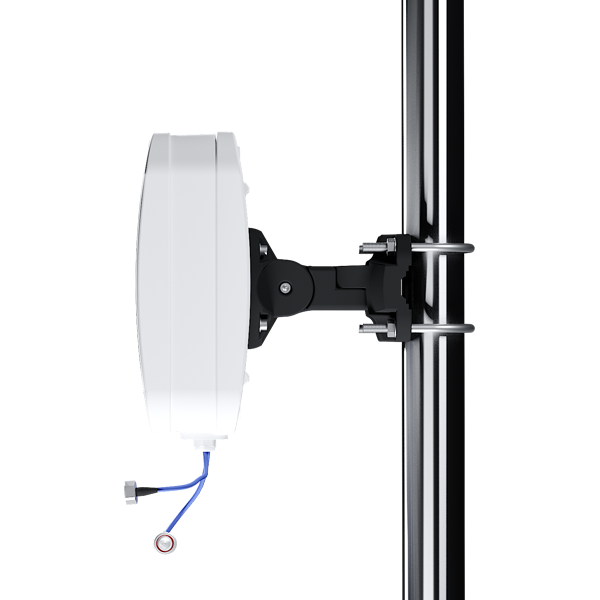

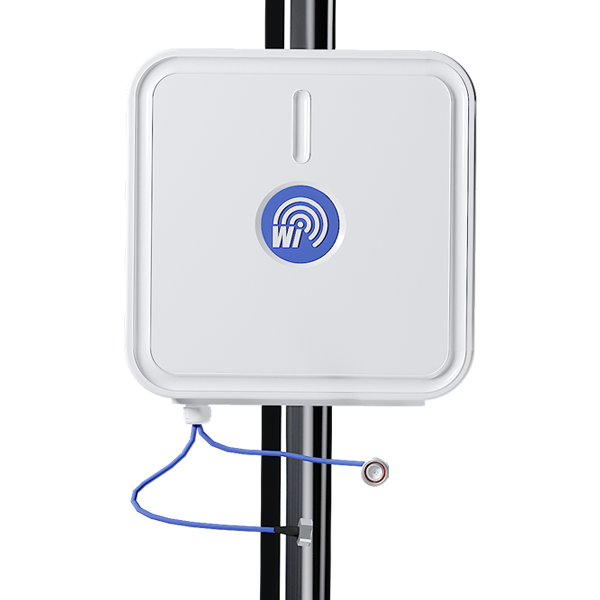

WiBOX PA MMB0727-5V Low PIM, 4.3/10 male connector is a MIMO 2x2 directional antenna desired for LTE connections, works as MIMO2x2 VV-polarity system. The antenna can be used for the most popular available LTE bands. WiBOX PA MMB0727-5V Low PIM can be used to build client side station operating in all available operator´s bands (the range 694-2700 MHz). That antenna is predicted to be installed indoor and outdoor to get LTE signal, its aesthetic shape makes it adaptative for most of buildings. WiBOX PA MMB0727-5V Low PIM comes with pigtails inbuilt inside the antenna, it can be attached to the mast or the wall by WiMount mounting system.



MIMO 2x2
ABS
DownloadDatasheetWiBOX PA MMB0727-5V Low PIM, 2x 4.3/10 male
Download
Need more information about this product ?
Contact with our
sales manager
Where to buy
Share this product on
Electrical specification
● Band 1
● Band 2
● Band 3
Frequency
●0.694 - 0.96 GHz
●1.7 - 2.2 GHz
●2.2 - 2.7 GHz
Gain
●4 dBi
●5 dBi
●6 dBi
VSWR
●<1.50, max < 2.00
●<1.30, max < 1.60
●<1.30, max < 1.60
Beamwidth
●90°/90°   +/- 30°
●90°/90°   +/- 30°
●90°/90°   +/- 30°
Polarization
●V
●V
●V
Impedance
50 Ω
Max Input Power
50 W
Lighting Protection
No
DC Ground
Yes
Mechanic specification
Material
ABS
Outer dimensions
27.2 x 9.6 x 27.6 cm
10.71 x 3.78 x 10.87 inch
Connector
2x4.3/10 male
Weight
1.2 kg
Operating temperature
from from -40°C to 80°C°C to °C
from 32°F to 32°F
Mounting Kit
Dimensions
9.9 x 10.5 x 14.8 cm
3.9 x 4.13 x 5.83 inch
Regulation Range
+/- 30°
Weight
0.87 kg
Mast Dimensions Range
25 - 65mm
Material
Polyamide with fiberglass + galvanized steel U-Bolts
Systems
  • LTE band - 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 70, 85
  • WiMAX - 2.3 GHz, 2.5 GHz, 700 MHz
  • 3G - 2100 MHz, 850 MHz, 900 MHz
  • GSM - 1800 MHz, 1900 MHz, 850 MHz
  • RFiD - 2400 - 2483 MHz, 865 - 868 MHz, 902 - 928 MHz
  • ISM - 2400-2483 MHz, 868-870 MHz
  • WLAN - 2.4 GHz
  • Bluetooth - 2400-2483 MHz
Plots
  •
  • No plots available for this antenna.
Solid WiBOX for any outdoor conditions

Every WiBOX systems are predicted to use outdoor, they are made of UV resistant ABS plastic material, which is also resistant for bad weather conditions like rain, snow, humidity. Special designed sealing systems guarantees IP67 waterproof level. WiBOX systems can work in any weather conditions, temperature range is from -40°C up to 80°C.

Wall or pole mast mounting

Comprehensiveness of WiBOX system installation, WiBOX system can be installed using WiMount mounting system on a pole mast or a wall.

Waterproof WiBOX construction

WiBOX system has certified IP67 waterproof level. It predicts the system to be used in any outdoor applications on the mast or on a wall. WiBOX system is equipped with top quality RJ45 waterproof system or with standard see-thru unit to install Ethernet cable to the WiBOX, keeping the waterproof performances.

Special mounting system
WiMount

WiMount bracket is designed to connect stability and attractive shape in one product. This aesthetic design is made of a special fiberglass reinforced plastic, which is rigid even in extremely weather conditions. Innovative shape and the plastic instead of metal bracket, offers better performances and no rust during all life-time. WiMount enables the antenna position aligning in two polarizations.

Made for Mikrotik®

This product was qualified for Made For MikroTik programm, which signify the products MikroTik friendly. The antennas and enclosures are compatible with MikroTik Routerboards and other stuff which is predicted to work with MT products. The reason why this product its certification is a big installation compartment, which gives possibility to install almost every electronic stuff available on the market, which probably makes it the most usable and compatible product there is.

Any information provided by Wireless Instruments Sp. z o.o. is believed to be accurate and reliable. All specifications are subject to change without notice.
