WiBOX PA M19-8HV

WiBOX PA M19-8HV is designed mainly for mobile cellular systems 3G, 3.5G, 3.75G and especially 4G - LTE as an 8 dBi dual polarization client antenna (CPE) in H&V polarization. Its wide range of work permits to operate in the systems such as GSM, UMTS and LTE. It can be used as client antenna for point-to-point (PTP) or point-to-multipoint (PMP) or for hotspots in offices, halls and public areas. Due to an innovative antenna design with great parameters it enables to work in a wide range of frequencies for LTE systems: band 1, 2, 3, 4, 9, 10, 25, 29, 33, 34, 35 , 36, 37, 39. The system can operate indoor and outdoor (IP67). The antenna is integrated with the top quality WiBOX Medium. It comes with 2 x SMA connector.

MIMO 2x2
ABS
DownloadDatasheetWiBOX PA M19-8HV
Download
Need more information about this product ?
Contact with our
sales manager
Where to buy
Share this product on
Electrical specification
Frequency
1.71 - 2.17 GHz
Gain
8 dBi
VSWR
<1.60, max < 2.00
Beamwidth
60°/60°
Polarization
H&V
Front-to-Back
> 17 dB
Separation between Connectors
> 18 dB
Impedance
50 Ω
Max Input Power
50 W
Lighting Protection
No
DC Ground
Yes
Mechanic specification
Material
ABS
Outer dimensions
27.2 x 27.6 x 9.6 cm
10.71 x 10.87 x 3.78 inch
Connector
RJ45 & 2xSMA
Weight
1.5 kg
Operating temperature
from -40°C to 80°C
from -40°F to 176°F
Mounting Kit
Dimensions
9.9 x 10.5 x 14.8 cm
3.9 x 4.13 x 5.83 inch
Regulation Range
+/- 30°
Weight
0.87 kg
Mast Dimensions Range
25 - 65mm
Material
Polyamide with fiberglass + galvanized steel U-Bolts
Systems
  • LTE band - 1, 2, 3, 4, 9, 10, 25, 33, 34, 35, 36, 37, 39, 65, 66, 70
  • 3G - 2100 MHz
  • GSM - 1800 MHz, 1900 MHz
Applications
  • Stadiums, Public Places
  • Hotspot
  • PtP connections
  • PtM Connections
  • System Integration

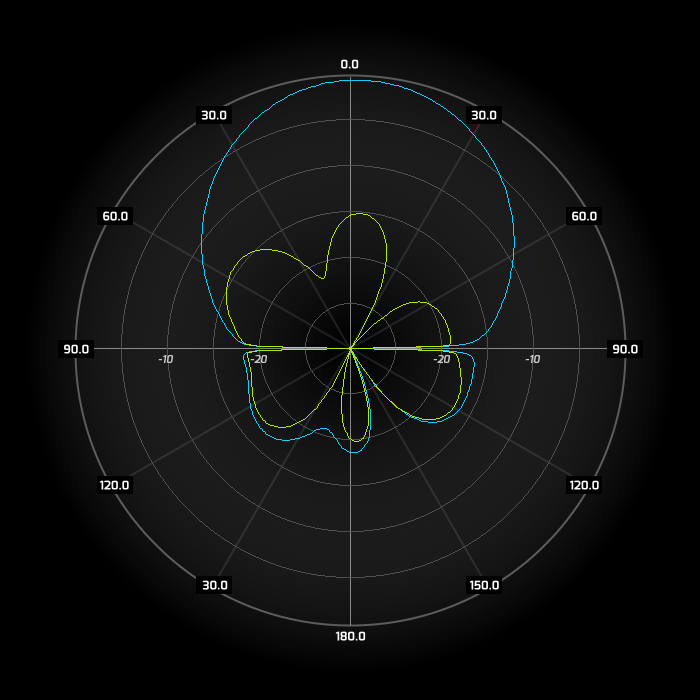

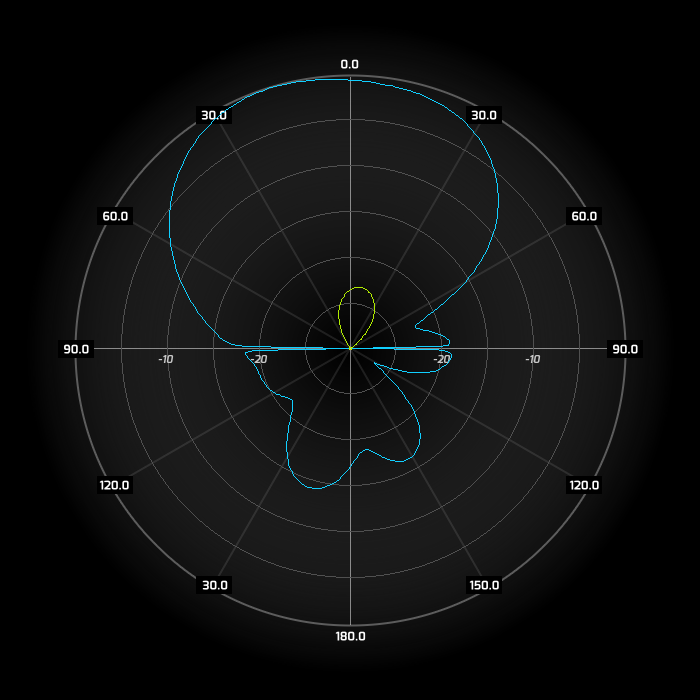

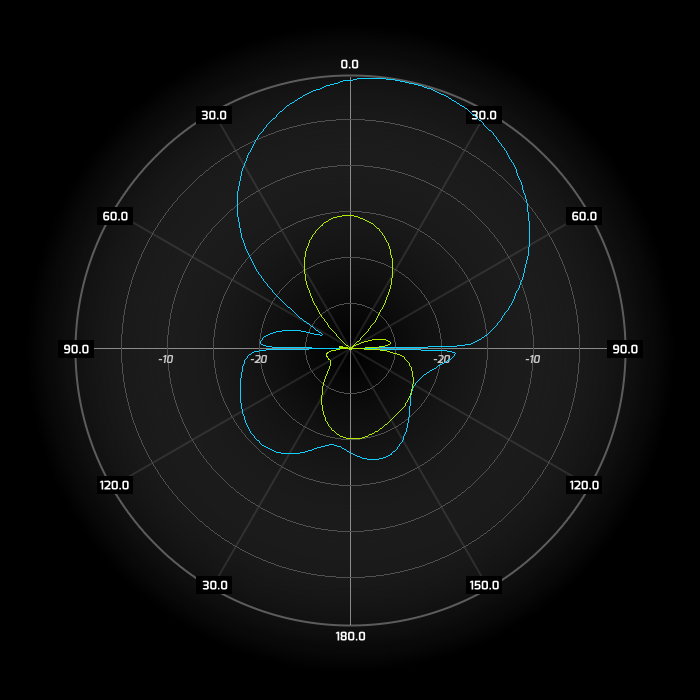

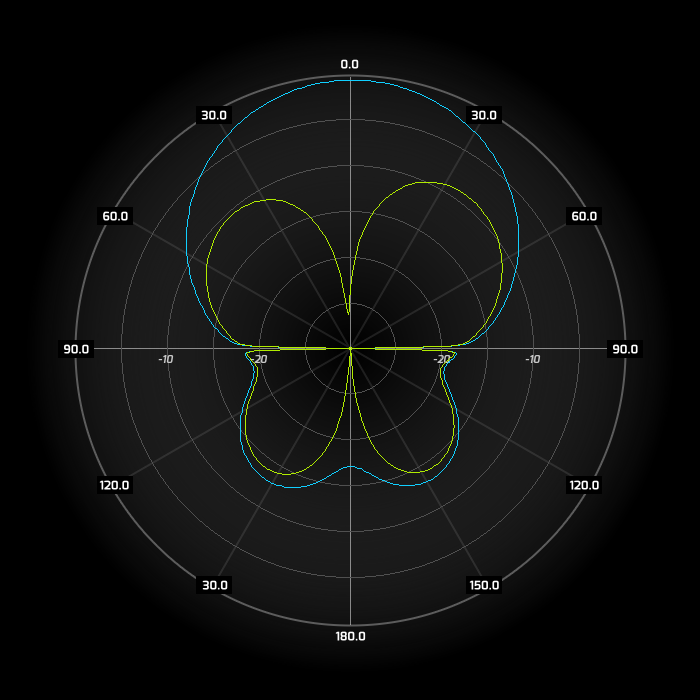

Plots
WiBOX Medium
Big, ergonomic box

Big and voluminous BOX in WiBOX systems enables the possibility to instal different radio equipment inside.

Outer dimensions
Inner dimensions
Solid WiBOX for any outdoor conditions

Every WiBOX systems are predicted to use outdoor, they are made of UV resistant ABS plastic material, which is also resistant for bad weather conditions like rain, snow, humidity. Special designed sealing systems guarantees IP67 waterproof level. WiBOX systems can work in any weather conditions, temperature range is from -40°C up to 80°C.

Wall or pole mast mounting

Comprehensiveness of WiBOX system installation, WiBOX system can be installed using WiMount mounting system on a pole mast or a wall.

Waterproof WiBOX construction

WiBOX system has certified IP67 waterproof level. It predicts the system to be used in any outdoor applications on the mast or on a wall. WiBOX system is equipped with top quality RJ45 waterproof system or with standard see-thru unit to install Ethernet cable to the WiBOX, keeping the waterproof performances.

WiBOX System Integration

WiBOX system is desired for building systems composed of few antenna systems. To realize this possibility, there are 4  additional holes for another antenna connectors.

Special mounting system
WiMount

WiMount bracket is designed to connect stability and attractive shape in one product. This aesthetic design is made of a special fiberglass reinforced plastic, which is rigid even in extremely weather conditions. Innovative shape and the plastic instead of metal bracket, offers better performances and no rust during all life-time. WiMount enables the antenna position aligning in two polarizations.

Any information provided by Wireless Instruments Sp. z o.o. is believed to be accurate and reliable. All specifications are subject to change without notice.
