Antenna for MIMOSA A5C

Antenna for MIMOSA A5C
Produkty
styczeń 24, 2017



Wireless Instruments sp. z o.o. company has launched the new antenna WiBOX SA D4M49-90-16X Slim NF dedicated to be used with the newest Mimosa A5C unit.

“With the fastest client speeds, access point capacity are combined with local and network wide spectrum reuse, the Mimosa A5c delivers the highest possible scale for any unlicensed fixed wireless network.” – Mimosa website

     Wireless Instruments sp. z o.o. company has launched the new antenna WiBOX SA D4M49-90-16X Slim NF dedicated to be used with the newest Mimosa A5C unit.

“With the fastest client speeds, access point capacity are combined with local and network wide spectrum reuse, the Mimosa A5c delivers the highest possible scale for any unlicensed fixed wireless network.” – Mimosa website (https://mimosa.co/Products/Access-Point/A5c)

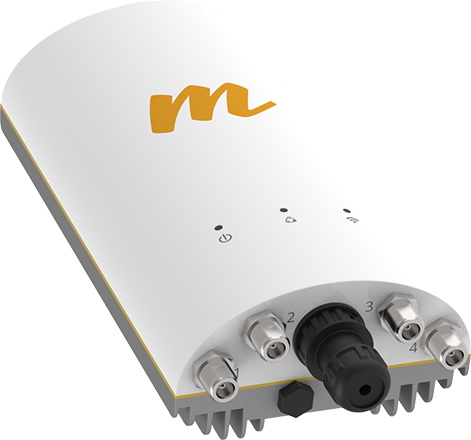

MIMOSA A5C

What is the unit without the antenna ?:) Is it still the fastest ?



    To keep this performances Mimosa A5C needs high-quality antenna. Using WiBOX antennas You will get the aesthetic and rugged product which provides You with superior parameters required for this unit.

    Using that solution You will be able to mount Your Mimosa A5C to the aesthetic product which can be mounted to the pole mast or to the wall by the reinforced WiMount fiberglass mounting systems and You will enjoy the antenna without any rust during long-time operation.

WiBOX SA D4M49-90-16X SLIM NF

WiBOX SA D4M49-90-16X SLIM NF



    WiBOX is made from durable ABS UV-protected material, it’s resistant for ever the worse climate conditions.

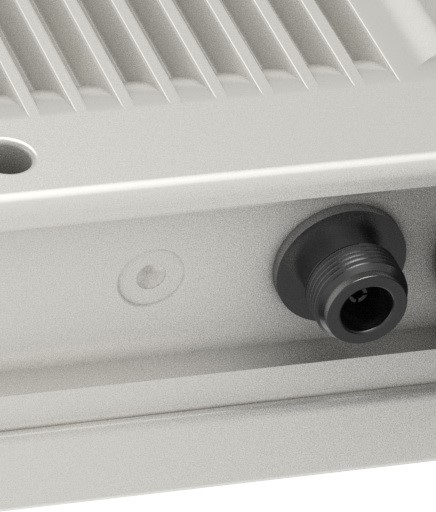

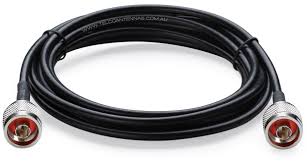

    The WiBOX SA D4M49-90-16X SLIM NF antenna comes with No. 4  N Female bulkhead connectors enabling easy junction by N Male to N Male connectors.



Electrical Specification
Frequency 4900-5900 MHz
Gain 16 dBi
Polarization X
Horizontal Beamwidth 85 º
Vartical Beamwidth 8 º
Front to back >30dB
Port to port >25dB
VSWR < 1,6
Impedance 50 Ohm
Connector No. 4 N Female bulkhead



Mechanical specification
Outer Dimensions 292 x 486 x 71 [mm]
Weight 2,9 [kg]
Mounting system (WiMount) Pole mast mounting 60 [mm], 2,76 [inch]
Operating temperature -40 to 70º C



For more information please contact with us pl@wireless-instruments.com or call us +48 693 953 666.
