WiPanel PA M5-24X

WiPanel PA M5-24X is an innovative PTFE microstrip dual slant polarity (MIMO 2x2) planar antenna operating at the frequency range of 5,1 – 5,95 GHz with 24 dBi gain in both polarizations. It is desired for Point-to-Point, bridge and Point-to-Multipoint connections as a client antenna where the high-gained antennas are required. The reduced side-lobes level makes a gain more focused into the front direction than the standard antennas. Front shield of WiPanel PA M5-24X is made from the durable plastic material resistant against the UV radiation and bad weather conditions. The special reinforced WiMount bracket, made from fiberglass ensures the stability even in case of the strong wind. It comes with No. 2 of N Female connector.

MIMO 2x2
ABS
Need more information about this product ?
Contact with our
sales manager
Where to buy
Share this product on
Electrical specification
Frequency
5.1 - 5.95 GHz
Gain
24 dBi
VSWR
<1.80, max < 2.00
Beamwidth
8°/8°
Polarization
X
Front-to-Back
> 30 dB
Separation between Connectors
> 40 dB
Impedance
50 Ω
Max Input Power
50 W
Lighting Protection
No
DC Ground
No
Mechanic specification
Material
ABS
Outer dimensions
392 x 396 x 9.5 cm
154.33 x 155.91 x 3.74 inch
Connector
RJ45 & 2xNF
Weight
2.2 kg
Operating temperature
from -40 + 70°C to °C
from -40°F to 32°F
Mounting Kit
Dimensions
9.9 x 10.5 x 14.8 cm
3.9 x 4.13 x 5.83 inch
Regulation Range
+/- 30°
Weight
0.87 kg
Mast Dimensions Range
250 - 650mm
Material
Polyamide with fiberglass + galvanized steel U-Bolts
Systems
  • WLAN - 5 GHz
  • WiMAX - 5 GHz
  • RFiD - 5725 - 5875 MHz
  • ISM - 5725-5875 MHz
Applications
  • PtP connections
Plots

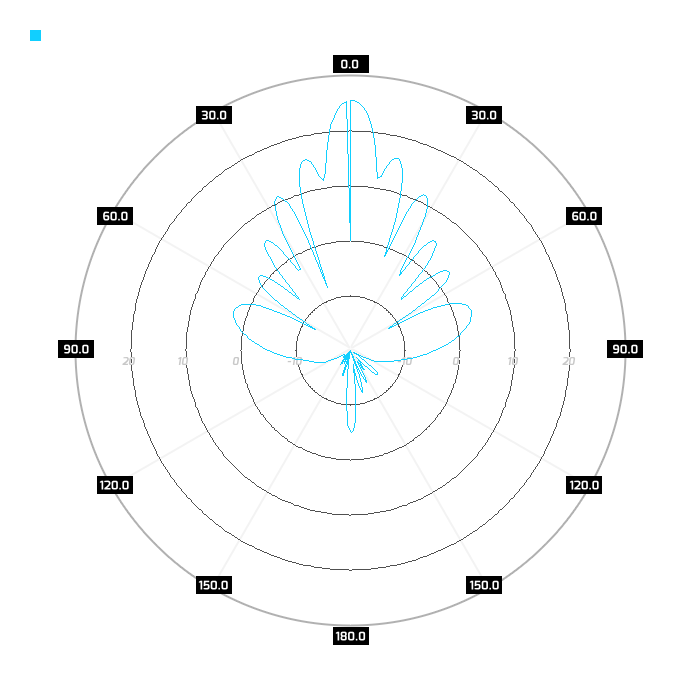

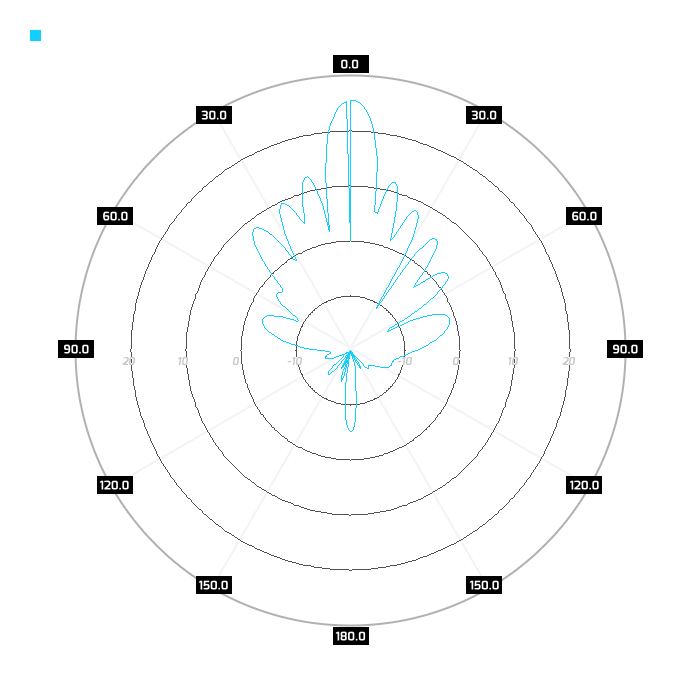

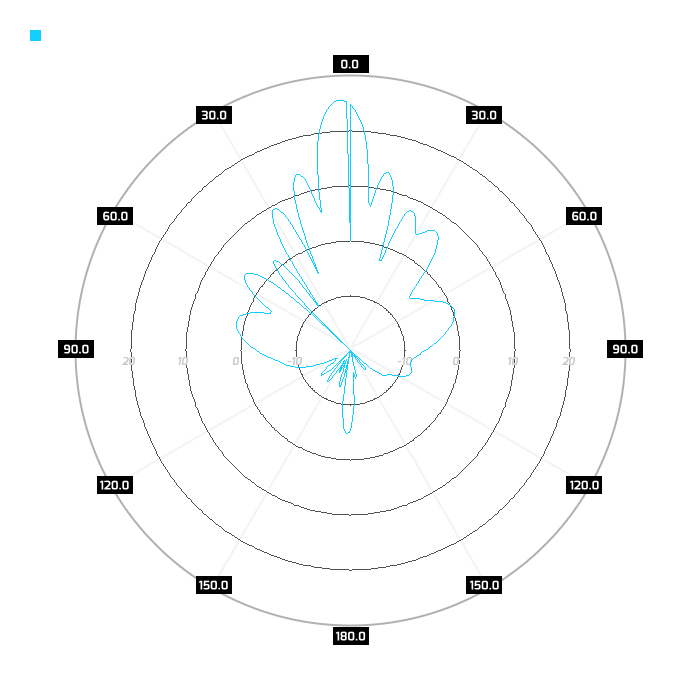

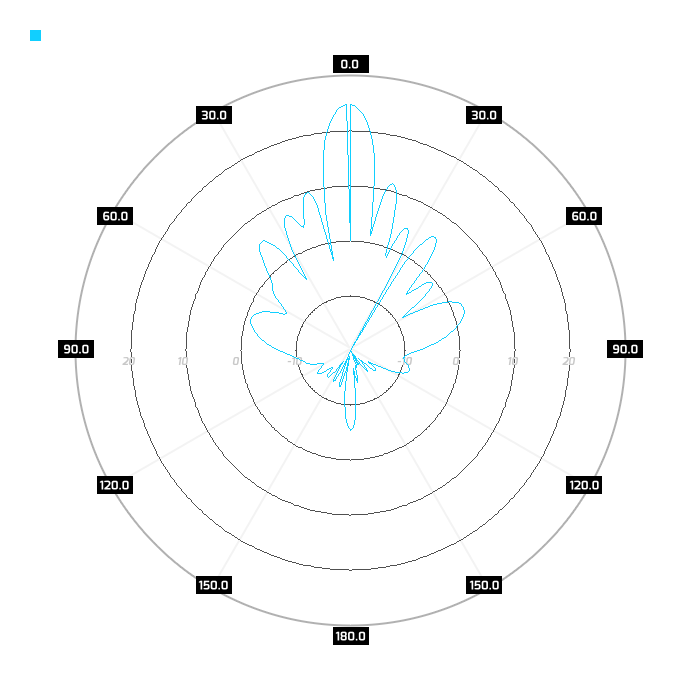

port 1, azimuthport 1, elev.port 2, azimuthport 2, elev.
Solid WiBOX for any outdoor conditions

Every WiBOX systems are predicted to use outdoor, they are made of UV resistant ABS plastic material, which is also resistant for bad weather conditions like rain, snow, humidity. Special designed sealing systems guarantees IP67 waterproof level. WiBOX systems can work in any weather conditions, temperature range is from -40°C up to 80°C.

Wall or pole mast mounting

Comprehensiveness of WiBOX system installation, WiBOX system can be installed using WiMount mounting system on a pole mast or a wall.

Special mounting system
WiMount

WiMount bracket is designed to connect stability and attractive shape in one product. This aesthetic design is made of a special fiberglass reinforced plastic, which is rigid even in extremely weather conditions. Innovative shape and the plastic instead of metal bracket, offers better performances and no rust during all life-time. WiMount enables the antenna position aligning in two polarizations.

Made for Mikrotik®

This product was qualified for Made For MikroTik programm, which signify the products MikroTik products friendly. There are the products of antennas with cases compatible with MikroTik Routerboards and other stuff which is predicted to work with MT products. The reason because this product got this sign is a big installation compartment, which gives possibility to install even every electronic stuff available on the market, which makes it possible the most usable and compatible product on the market.

Any information provided by Wireless Instruments Sp. z o.o. is believed to be accurate and reliable. All specifications are subject to change without notice.
