WiSpot BOX OA M3DBC245-7V

WiSpot BOX OA M3DBC245-7V is an omnidirectional MIMO 3x3 dual-band concurrent (2.4&5GHz) antenna, working in VV-polarization, it´s desired for WiFi connections. On the bottom side the WiSpot has the full IP67 installation compartment, where You can easily install an electronic board with WiFi radio modem to get the ready-to-use IP67 device powered by PoE (802.3af) - RJ45 waterproof high-quality connector. That antenna is predicted to be installed as the hotspot in parks, stadiums, warehouses, production halls, malls, lecture halls or another public places. Its aesthetic design is acceptable in most of the visible places. WiSpot BOX OA M3DBC245-7V can be installed on the mast, a wall or the flat surface.

NOTE: The installation compartment is: 11,3 x 14,5 x 5 [cm] / 4,45´´ x 5,71´´ x 1,97´´ [inch].

MIMO 3x3
ABS
DownloadDatasheetWiSpot BOX OA M3DBC245-7V
Download
Need more information about this product ?
Contact with our
sales manager
Where to buy
Share this product on
Electrical specification
● Band 1
● Band 2
Frequency
●2.4 - 2.5 GHz
●4.7 - 6 GHz
Gain
●6 dBi
●7 dBi
VSWR
●<1.70, max < 2.00
●<1.70, max < 2.00
Beamwidth
●360°/25°   +/- 5°
●360°/25°   +/- 5°
Polarization
●V
●V
Impedance
50 Ω
Max Input Power
50 W
Lighting Protection
No
DC Ground
No
Mechanic specification
Material
ABS
Outer dimensions
16 x 24 x 16 cm
6.3 x 9.45 x 6.3 inch
Connector
RJ45 & 3xMMCX/U.FL
Weight
1.6 kg
Operating temperature
from -40°C to 80°C
from -40°F to 176°F
Systems
  • LTE band - 40, 41, 46, 47, 53, 252, 255
  • WLAN - 2.4 GHz, 5 GHz
  • WiMAX - 2.3 GHz, 2.5 GHz, 5 GHz
  • RFiD - 2400 - 2483 MHz, 5725 - 5875 MHz
  • Bluetooth - 2400-2483 MHz
  • ISM - 2400-2483 MHz, 5725-5875 MHz
Applications
  • Stadiums, Public Places
  • Hotspot
  • PtM Connections
Plots

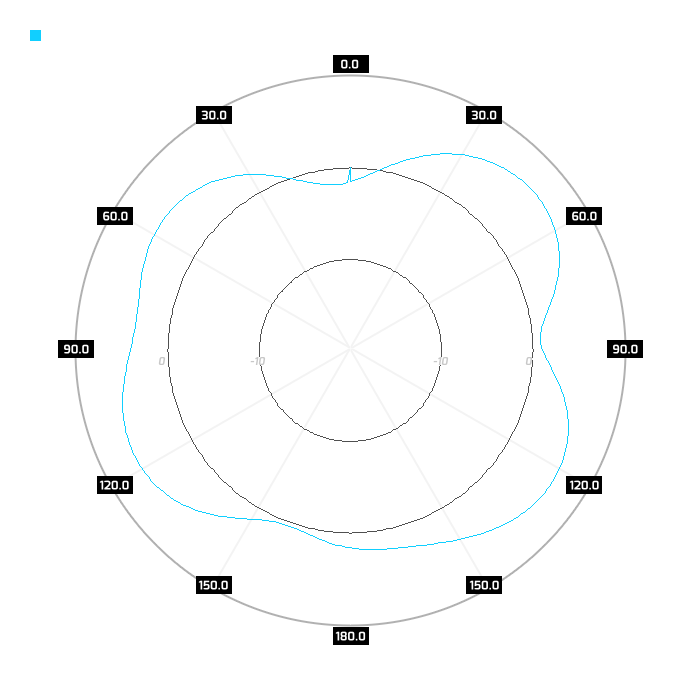

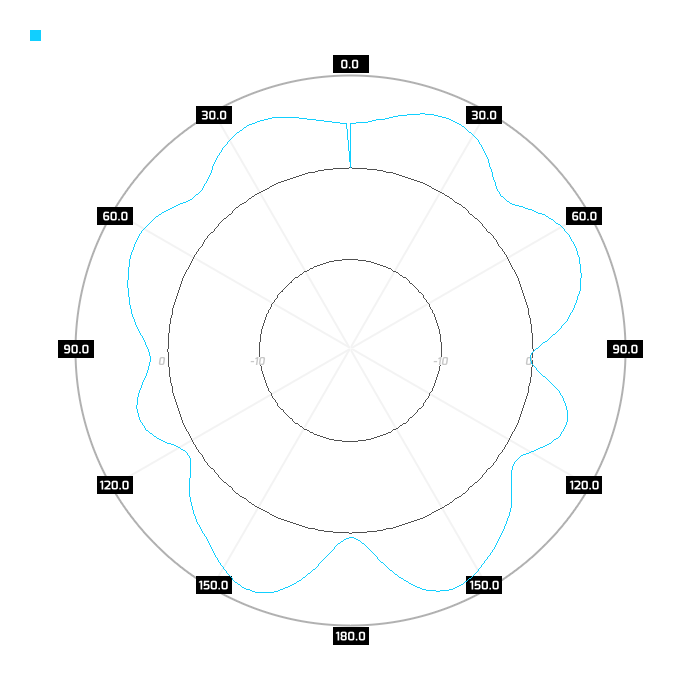

2.4Ghz, azimuth5.5Ghz, azimuth
WiSpot
Big, ergonomic box

Big and voluminous BOX in WiBOX systems enables the possibility to instal different radio equipment inside.

Outer dimensions
Inner dimensions
Solid WiBOX for any outdoor conditions

Every WiBOX systems are predicted to use outdoor, they are made of UV resistant ABS plastic material, which is also resistant for bad weather conditions like rain, snow, humidity. Special designed sealing systems guarantees IP67 waterproof level. WiBOX systems can work in any weather conditions, temperature range is from -40°C up to 80°C.

Waterproof WiBOX construction

WiBOX system has certified IP67 waterproof level. It predicts the system to be used in any outdoor applications on the mast or on a wall. WiBOX system is equipped with top quality RJ45 waterproof system or with standard see-thru unit to install Ethernet cable to the WiBOX, keeping the waterproof performances.

Made for Mikrotik®

This product was qualified for Made For MikroTik programm, which signify the products MikroTik friendly. The antennas and enclosures are compatible with MikroTik Routerboards and other stuff which is predicted to work with MT products. The reason why this product its certification is a big installation compartment, which gives possibility to install almost every electronic stuff available on the market, which probably makes it the most usable and compatible product there is.

Any information provided by Wireless Instruments Sp. z o.o. is believed to be accurate and reliable. All specifications are subject to change without notice.
