WiSector SA M5-90-17X

WiSector SA M5-90-17X is an X (slant +/- 45º) polarity MIMO 2x2 sector antenna operating at a frequency range of: 5.0 - 6.0 GHz with 17 dBi gain. The antenna is predicted for point-to-multipoint (PMP) connections, can be used for covering medium and big areas as a base station for client stations or as the hotspot in schools, halls, stadiums or another public places. It can work indoor and outdoor. It works with the WLAN 802.11n/ac systems. The antenna comes with No. 2 N Female connector, it enables WiSector SA M5-90-17X to create complete MIMO2x2 base station.

MIMO 2x2
PVC
DownloadDatasheetWiSector SA M5-90-17X
Download
Need more information about this product ?
Contact with our
sales manager
Where to buy
Share this product on
Electrical specification
Frequency
5 - 6 GHz
Gain
17 dBi
VSWR
<2.00
Beamwidth
8°/80°
Polarization
X
Cross-Polar Isolation
25 dB
Front-to-Back
> 24 dB
Separation between Connectors
> 22 dB
Impedance
50 Ω
Max Input Power
50 W
Lighting Protection
No
DC Ground
No
Mechanic specification
Material
PVC
Outer dimensions
12 x 44.5 x 5.5 cm
4.72 x 17.52 x 2.17 inch
Connector
2xN Female
Weight
1.8 kg
Operating temperature
from -40°C to 70°C
from -40°F to 158°F
Mounting Kit
Dimensions
9.9 x 10.5 x 14.8 cm
3.9 x 4.13 x 5.83 inch
Regulation Range
+/- 30°
Weight
0.87 kg
Mast Dimensions Range
25 - 65mm
Material
Polyamide with fiberglass + galvanized steel U-Bolts
Systems
  • LTE band - 46, 47, 252, 255
  • WLAN - 5 GHz
  • WiMAX - 5 GHz
  • RFiD - 5725 - 5875 MHz
  • ISM - 5725-5875 MHz
Applications
  • Stadiums, Public Places
  • Hotspot
  • PtM Connections
Plots

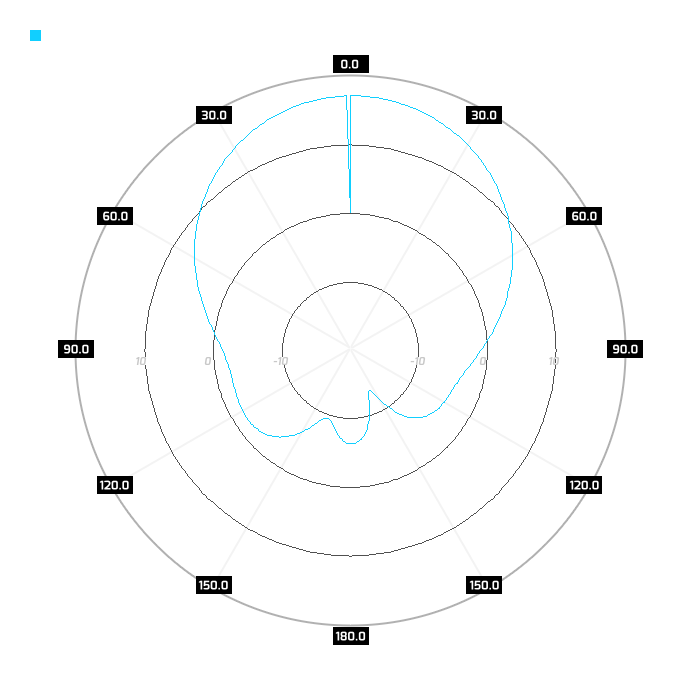

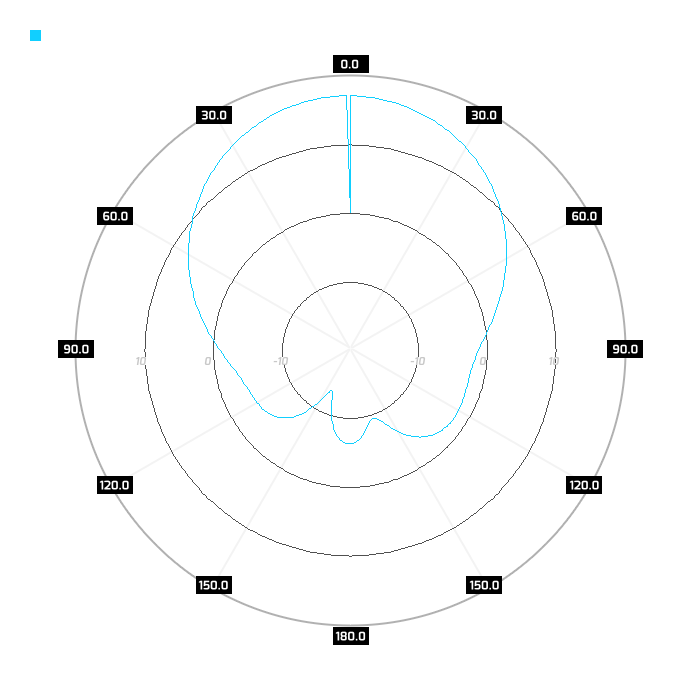

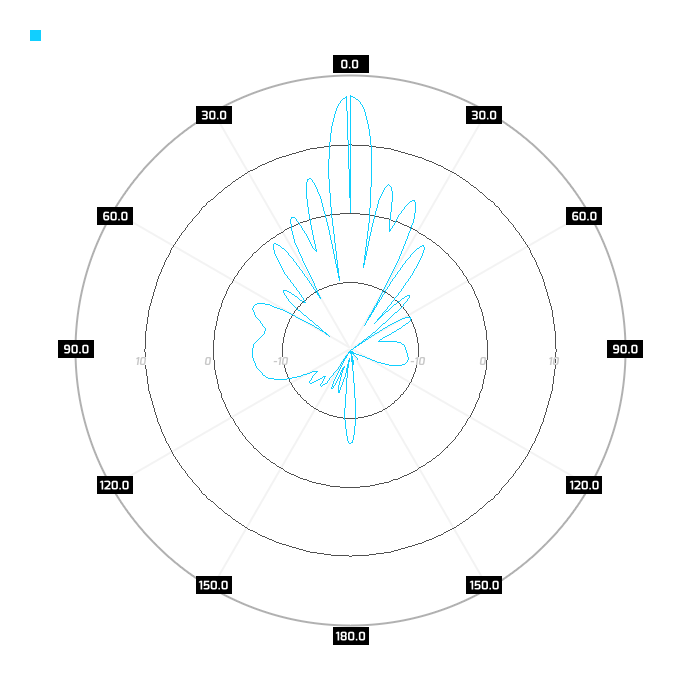

Port 1, azimuthPort 1, elev.Port 2, azimuthPort 2, elev.
Wall or pole mast mounting

Comprehensiveness of WiBOX system installation, WiBOX system can be installed using WiMount mounting system on a pole mast or a wall.

Special mounting system
WiMount

WiMount bracket is designed to connect stability and attractive shape in one product. This aesthetic design is made of a special fiberglass reinforced plastic, which is rigid even in extremely weather conditions. Innovative shape and the plastic instead of metal bracket, offers better performances and no rust during all life-time. WiMount enables the antenna position aligning in two polarizations.

Any information provided by Wireless Instruments Sp. z o.o. is believed to be accurate and reliable. All specifications are subject to change without notice.
