WiSector SA M5-90-17HV ProBOX

WiSector SA M5-90-17HV ProBOX is an H&V polarity MIMO 2x2 sector antenna operating at a frequency range of: 5.1 - 5.95 GHz with 17 dBi gain. The antenna is predicted for point-to-multipoint (PMP) connections, can be used for covering medium and big areas as a base station for client stations or as the hotspot in schools, halls, stadiums or another public places. It can work indoor and outdoor. It works with the WLAN 802.11n/ac systems. The antenna has a special installation compartment ("drawer for electronic board") and the highest quality PoE RJ45 waterproof system which enables to create complete PoE supplied base station.

MIMO 2x2
PVC
Need more information about this product ?
Contact with our
sales manager
Where to buy
Share this product on
Electrical specification
Frequency
5.1 - 5.95 GHz
Gain
17 dBi
VSWR
<1.40, max < 1.80
Beamwidth
90°/9°
Polarization
H&V
Front-to-Back
> 20 dB
Separation between Connectors
> 25 dB
Impedance
50 Ω
Max Input Power
50 W
Lighting Protection
No
DC Ground
No
Mechanic specification
Material
PVC
Outer dimensions
18 x 40 x 9 cm
7.09 x 15.75 x 3.54 inch
Connector
RJ45 & 2xNf
Weight
3 kg
Operating temperature
from -40 + 70°C to °C
from -40°F to 32°F
Systems
  • WLAN - 5 GHz
  • WiMAX - 5 GHz
  • RFiD - 5725 - 5875 MHz
  • ISM - 5725-5875 MHz
Applications
  • Stadiums, Public Places
  • Hotspot
  • PtM Connections
Plots

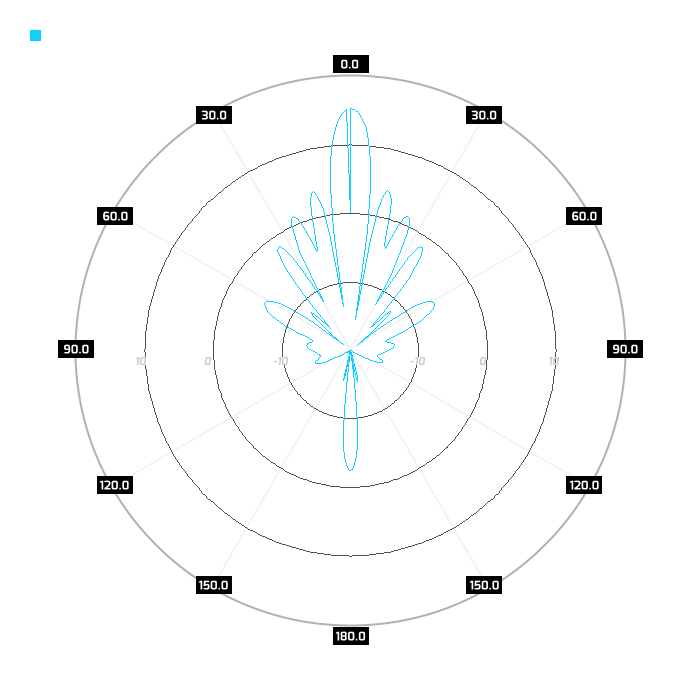

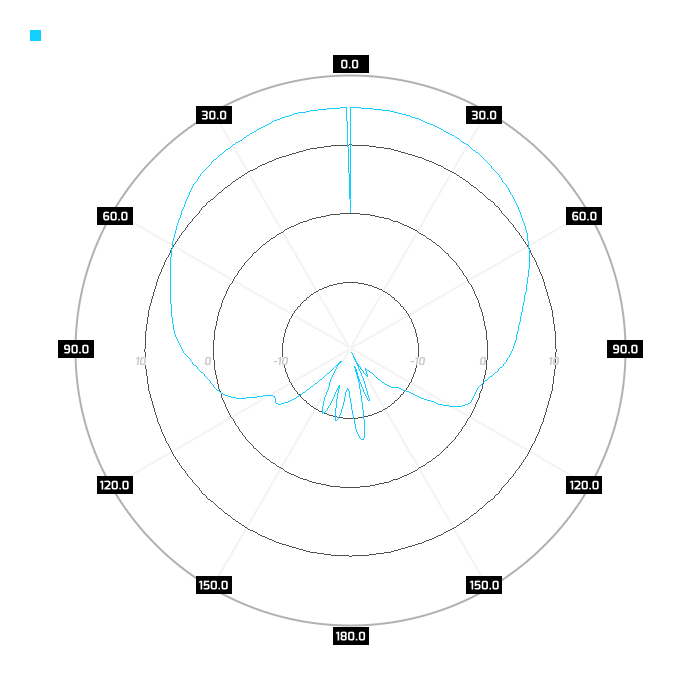

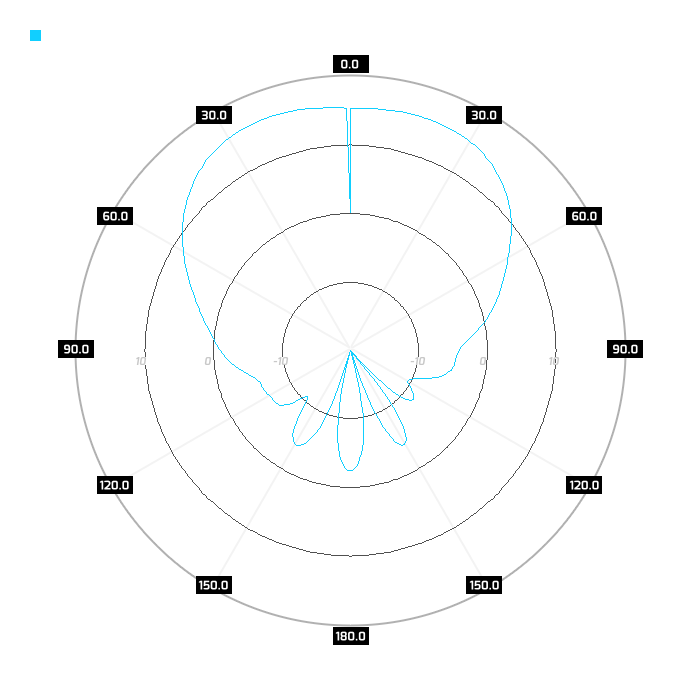

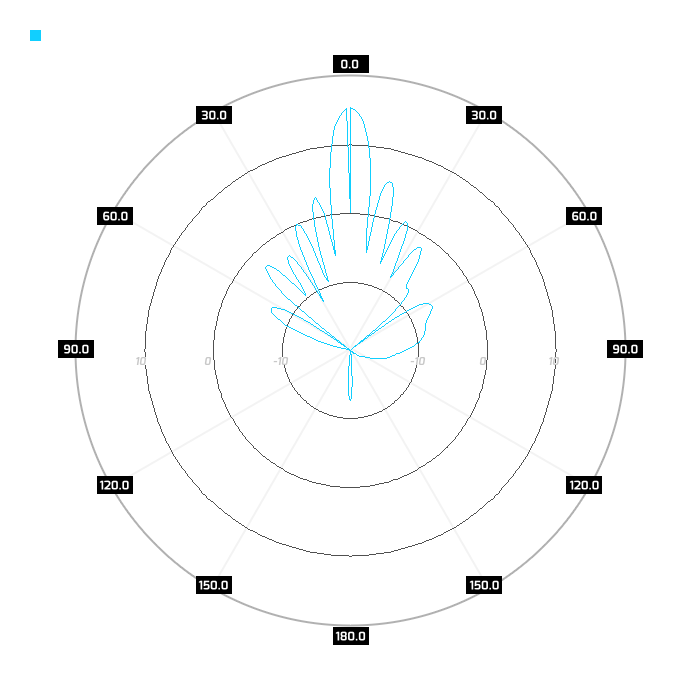

pol. H, azimuthpol. H, elev.pol. V, azimuthpol. V, elev.
Made for Mikrotik®

This product was qualified for Made For MikroTik programm, which signify the products MikroTik products friendly. There are the products of antennas with cases compatible with MikroTik Routerboards and other stuff which is predicted to work with MT products. The reason because this product got this sign is a big installation compartment, which gives possibility to install even every electronic stuff available on the market, which makes it possible the most usable and compatible product on the market.

Any information provided by Wireless Instruments Sp. z o.o. is believed to be accurate and reliable. All specifications are subject to change without notice.
