WiSector SA 3518X-65-M4

WiSector SA 3518X-65-M4 is an 2x Slant +/- 45º polarity MIMO 4x4 sector antenna operating at a frequency range of: 3.3 - 3.8 GHz with 18 dBi gain and 2 deg. electrical tilt. The antenna is predicted for point-to-multipoint (PMP) connections, can be used for covering medium and big areas as a base station for client stations or as the hotspot in schools, halls, stadiums or another public places. It can work indoor and outdoor. It works with the WLAN 802.11n/ac systems. The antenna comes with No. 2 N Female connector, it enables WiSector SA 3518X-65-M4 to create complete MIMO4x4 base station.

MIMO 4x4
PVC
DownloadDatasheetWiSector SA 3518X-65-M4
Download
Need more information about this product ?
Contact with our
sales manager
Where to buy
Share this product on
Electrical specification
Frequency
3.3 - 3.8 GHz
Gain
18 dBi ±1
VSWR
<1.40, max < 1.50
Beamwidth
8°/73°
Polarization
X
Cross-Polar Isolation
25 dB
Front-to-Back
> 35 dB   +/- 1 dB
Separation between Connectors
> 40 dB   +/- 2 dB
Impedance
50 Ω
Max Input Power
50 W
Lighting Protection
No
DC Ground
Yes
Mechanic specification
Material
PVC
Outer dimensions
12 x 75.5 x 7 cm
4.72 x 29.72 x 2.76 inch
Connector
4xN Female
Weight
4.7 kg
Operating temperature
from -40°C to 70°C
from -40°F to 158°F
Systems
  • LTE band - 22, 42, 43, 48, 49, 52
  • WLAN - 3.6 GHz
  • WiMAX - 3.5 GHz
Applications
  • Stadiums, Public Places
  • Hotspot
  • PtM Connections

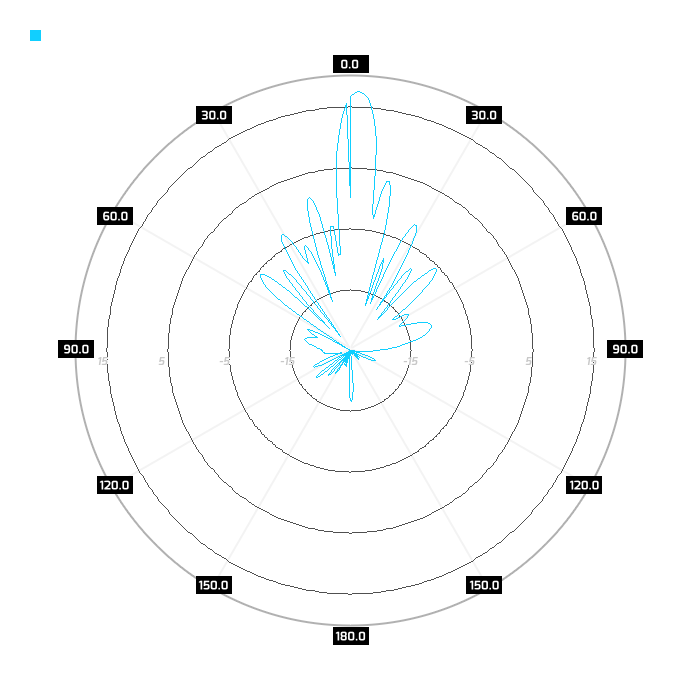

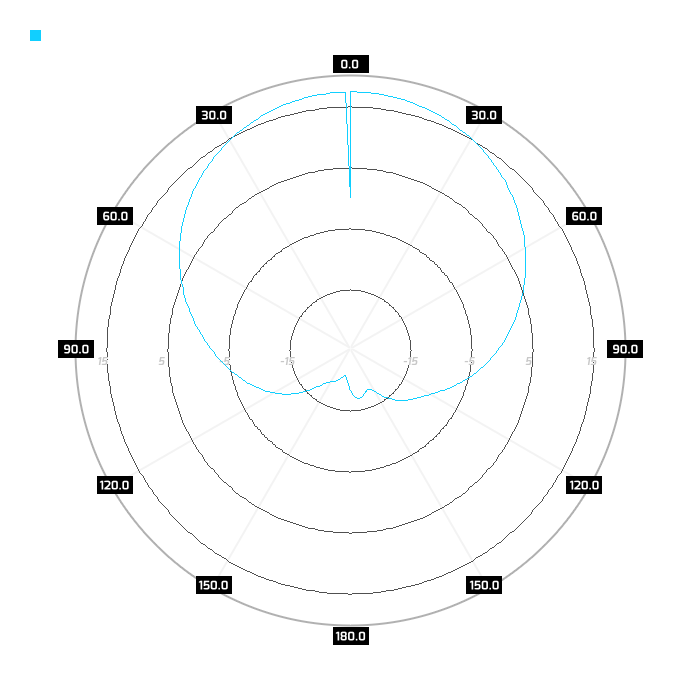

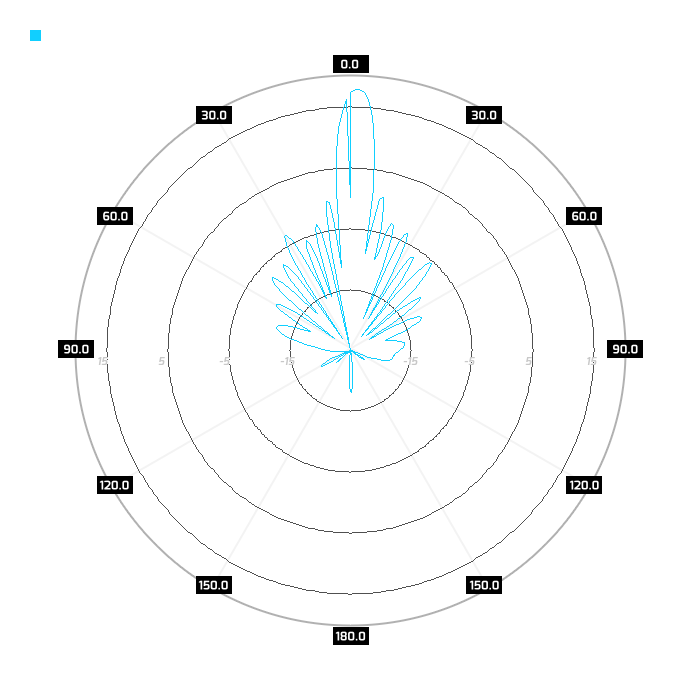

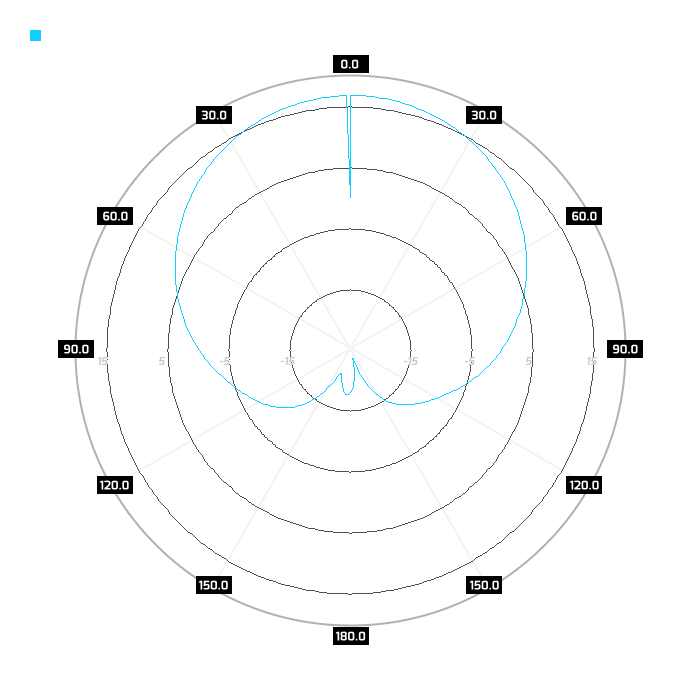

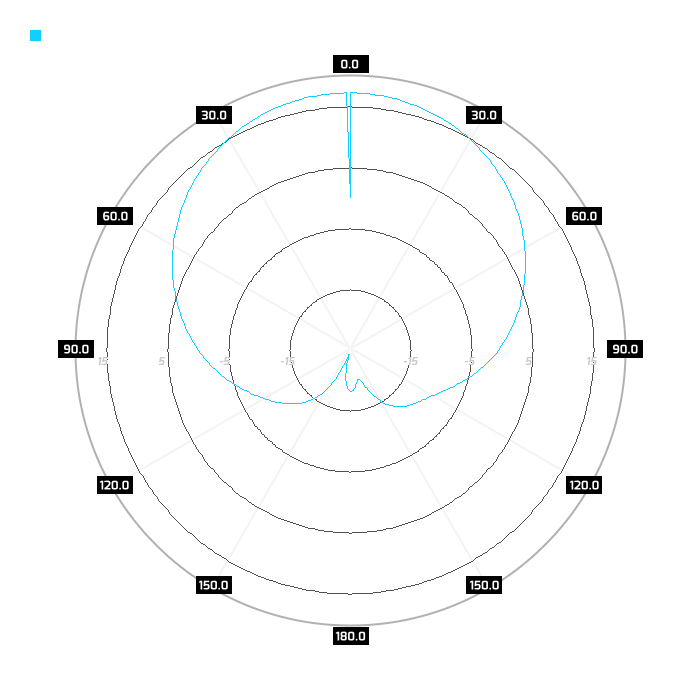

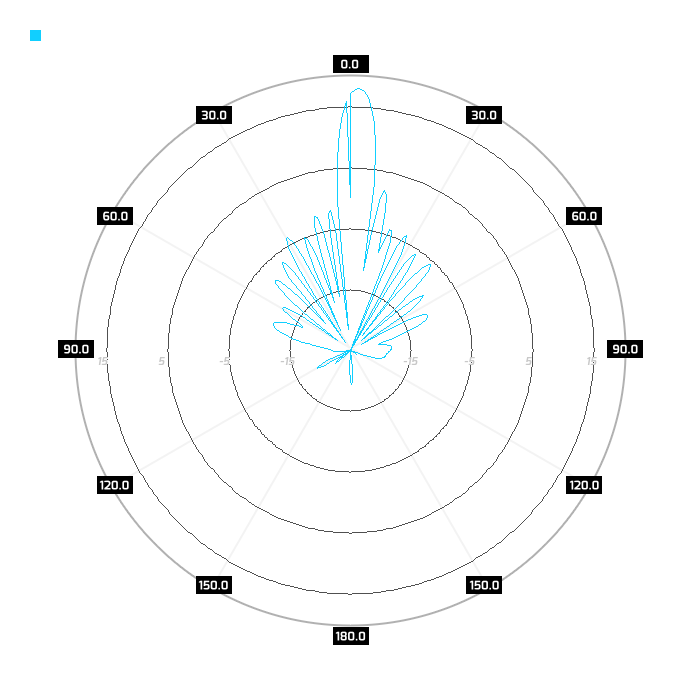

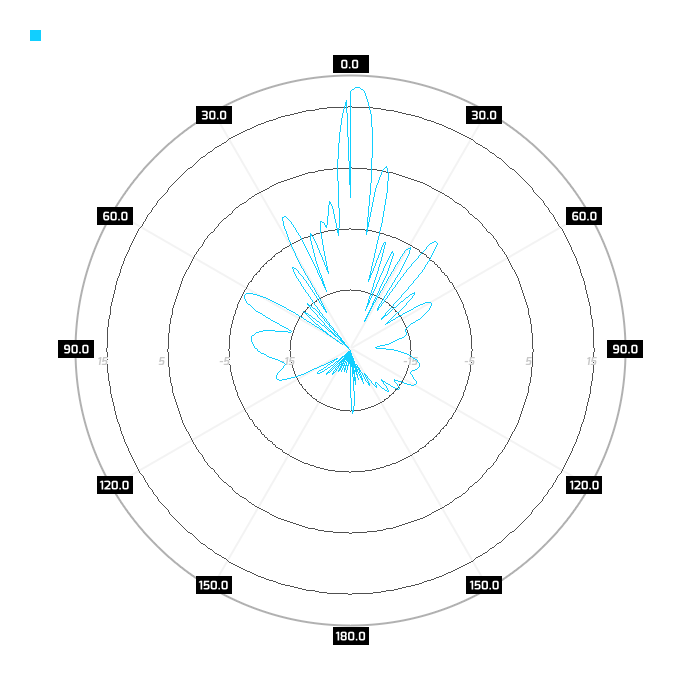

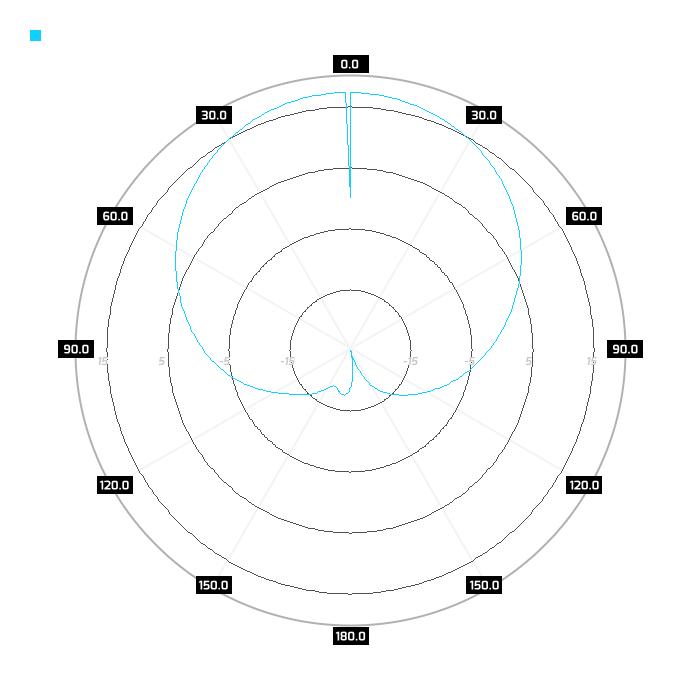

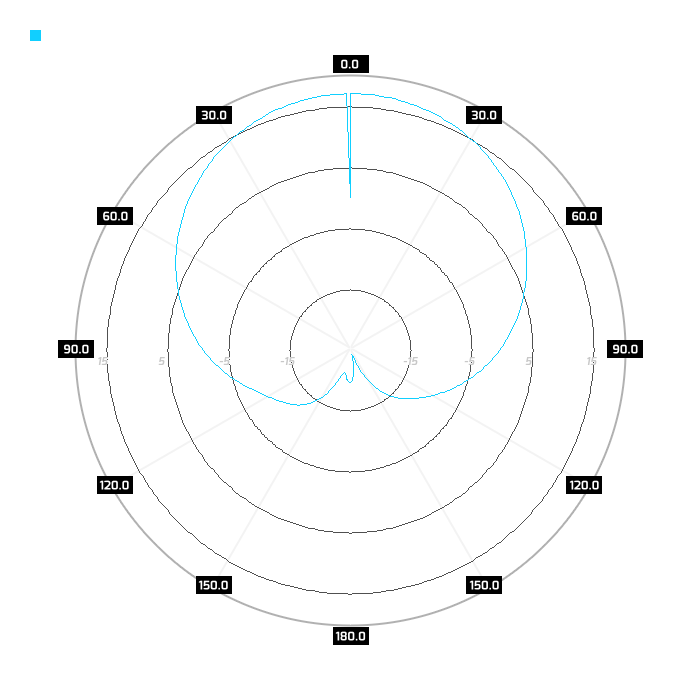

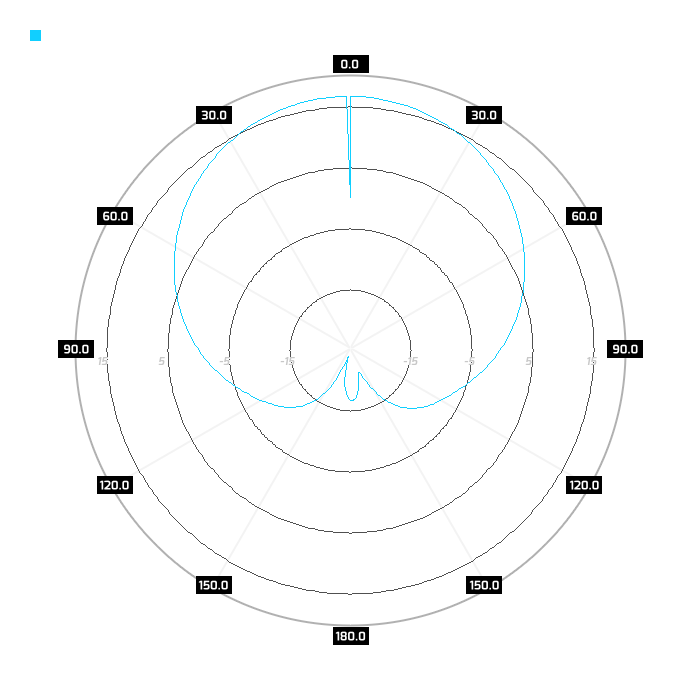

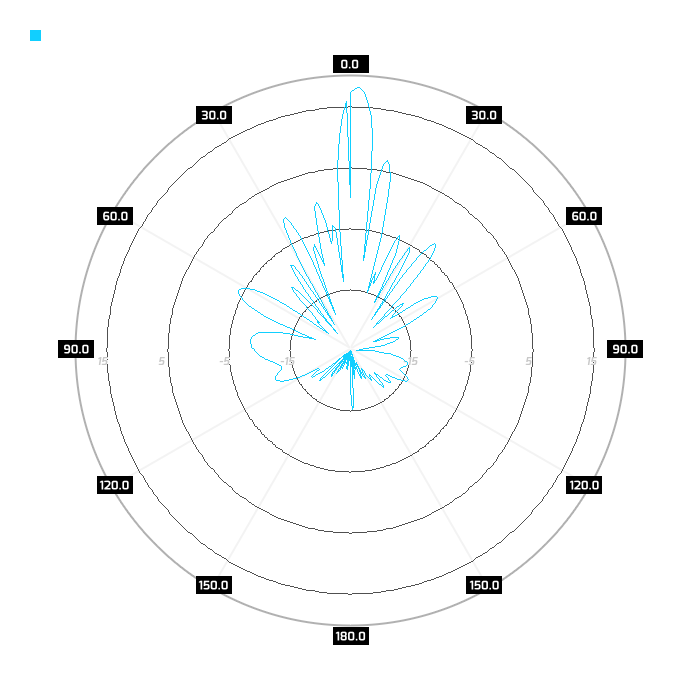

Plots
Port 1 & 3, 3300 MHzPort 2 & 4, 3300 MHzPort 1 & 3, 3500 MHzPort 2 & 4, 3500 MHzPort 1 & 3, 3800 MHzPort 2 & 4, 3800 MHzPort 1 & 3, 3300 MHzPort 2 & 4, 3300 MHzPort 1 & 3, 3500 MHz Port 2 & 4, 3500 MHzPort 1 & 3, 3800 MHz Port 2 & 4, 3800 MHz
Any information provided by Wireless Instruments Sp. z o.o. is believed to be accurate and reliable. All specifications are subject to change without notice.
