base sector antenna

WiSector PRO M5-90-17HV for Cambium PMP 450

WiSector PRO M5-90-17HV for Cambium PMP 450 is a 90 degrees sector antenna dedicated for Cambium PMP450 product. The antenna enables PMP450 for creating medium range links in outdoor environment (IP67). The set consists of the solid mounting system, made from the highest quality stainless steel, dedicated for PMP450 Cambium model. WiSector comes with No. 2 N Female connectors located at the bottom of the enclosure, the connectors are protected against watering by the special collar surrounding them. Due to PTFE material used for the antenna PCB, WiSector PRO M5-90-17HV has better parameters than antennas available on the market. The antenna is predicted for point-to-multipoint (PMP) connections, for different applications like hotspots, stadiums or another public places.





MIMO 2x2
PET
Need more information about this product ?
Contact with our
sales manager
Where to buy
Share this product on
Electrical specification
Frequency
5.1 - 5.95 GHz
Gain
17 dBi
VSWR
<2.00
Beamwidth
90°/8°
Polarization
H&V
Front-to-Back
> 25 dB
Separation between Connectors
> 35 dB
Impedance
50 Ω
Max Input Power
50 W
Lighting Protection
No
DC Ground
No
Mechanic specification
Material
PET
Outer dimensions
12 x 44.5 x 5.5 cm
4.72 x 17.52 x 2.17 inch
Connector
2xSMA
Weight
3.5 kg
Operating temperature
from -40°C to 70°C
from -40°F to 158°F
Mounting Kit
Dimensions
9.9 x 10.5 x 14.8 cm
3.9 x 4.13 x 5.83 inch
Regulation Range
+/- 30°
Weight
0.87 kg
Mast Dimensions Range
250 - 650mm
Material
Polyamide with fiberglass + galvanized steel U-Bolts
Systems
  • WLAN - 5 GHz
  • WiMAX - 5 GHz
  • RFiD - 5725 - 5875 MHz
  • ISM - 5725-5875 MHz
Applications
  • Stadiums, Public Places
  • Hotspot
  • PtM Connections
Compatible with
  • Cambium Networks - PMP 450
Plots

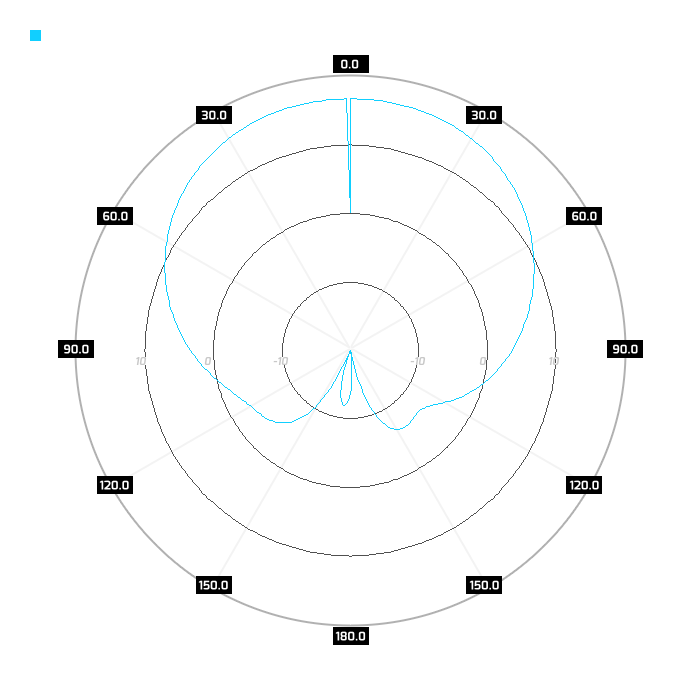

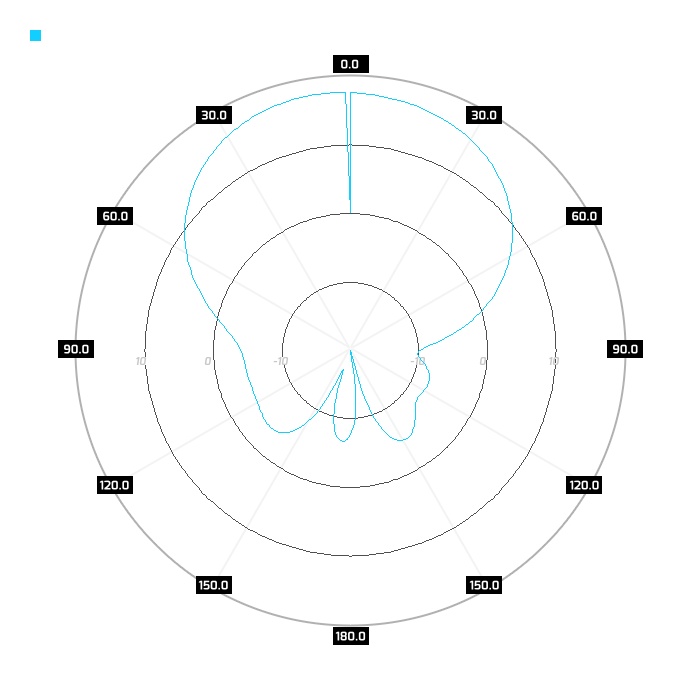

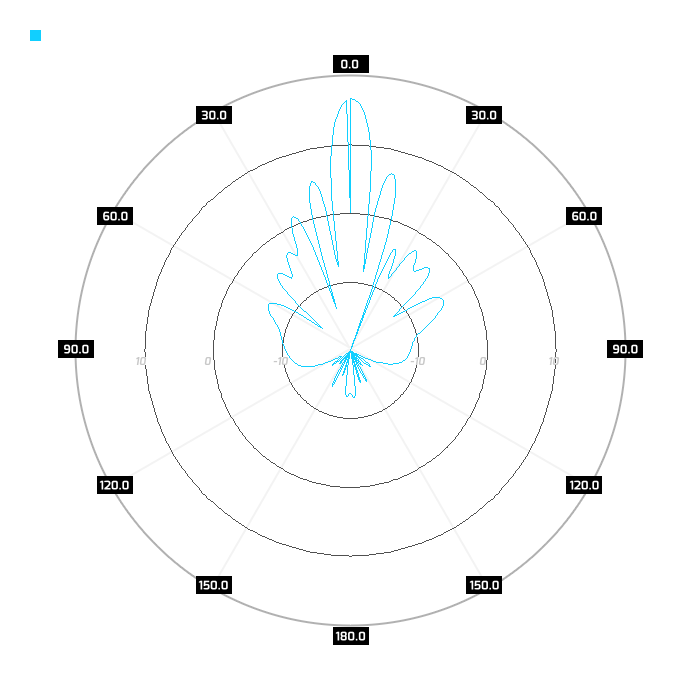

H-pol, azimuthH-pol, elev.V-pol, azimuthV-pol, elev.
Any information provided by Wireless Instruments Sp. z o.o. is believed to be accurate and reliable. All specifications are subject to change without notice.
