high-density triple band OMNI antenna

WiOmni 0727-4V

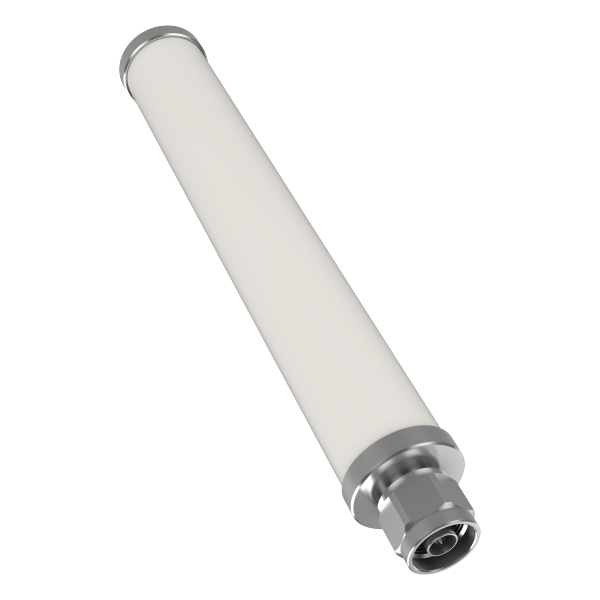

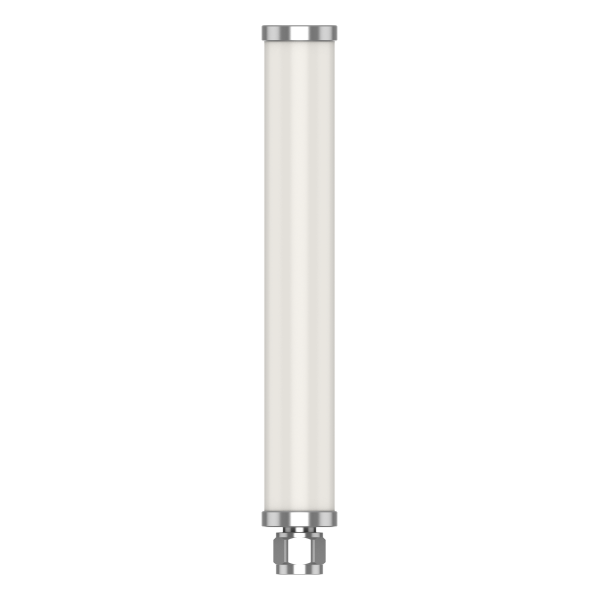

WiOmni 0727-4V is an omnidirectional antenna, working in V-polarization, it´s desired for LTE connections. The antenna can be used for the most popular LTE bands (3,7, 20), frequencies 694-2700 MHz. The system comes with NMale connector and is designed to be mounted on NFemale connector on the BOXes. WiOmni 0727-4V is predicted, among others, for being installed with WiBOX Medium, Large and Extra Large IP67 enslosures (they can be ordered with N-connectors installed).

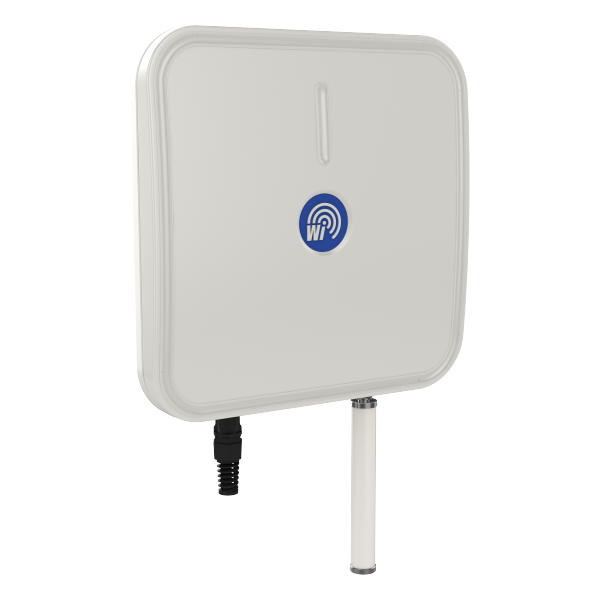

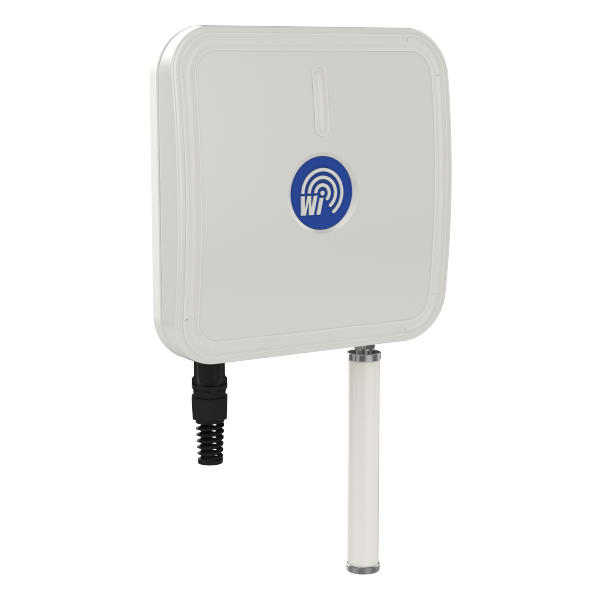

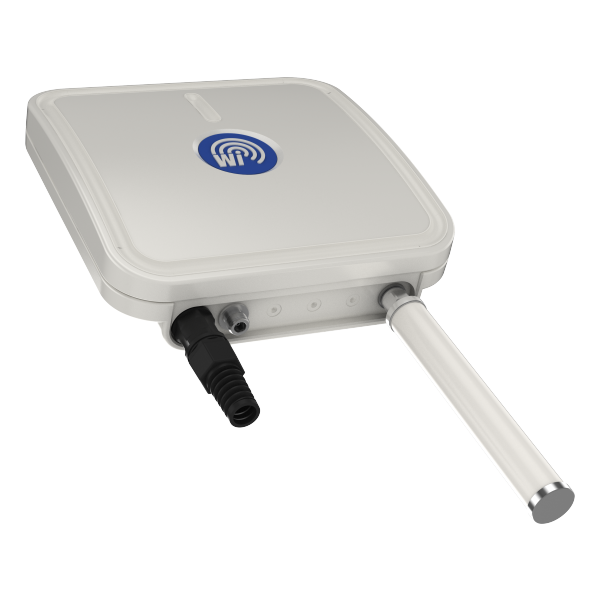

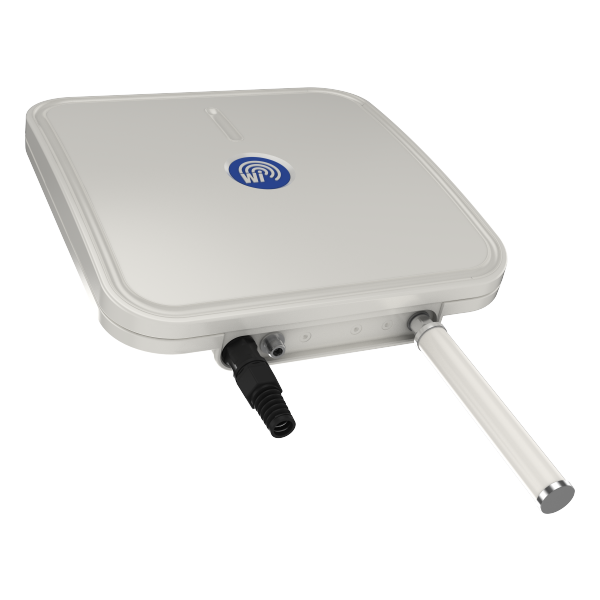

The antenna doesn´t come with WiBOX enclosures, photos are for demonstrative purposes.



SISO
ABS
Need more information about this product ?
Contact with our
sales manager
Where to buy
Share this product on
Electrical specification
Band 1
Band 2
Band 3
Frequency
0.694 - 0.96 GHz
1.7 - 2.2 GHz
0.0025 - 0.0028 GHz
Gain
2 dBi ±1
2 dBi ±1
4 dBi ±1
VSWR
<1.80
<1.70
<1.50
Beamwidth
360°/25°   +/- 5°
360°/25°   +/- 5°
360°/25°   +/- 5°
Polarization
V
V
V
Impedance
50 Ω
Max Input Power
50 W
Lighting Protection
No
DC Ground
No
Mechanic specification
Material
ABS
Outer dimensions
3 x 22 x 0 cm
1.18 x 8.66 x 0 inch
Connector
1xN Male
Weight
0.2 kg
Operating temperature
from -40°C to 80°C
from -40°F to 176°F
Systems
  • LTE band - 1, 2, 3, 4, 5, 6, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 33, 34, 35, 36, 37, 39, 44
  • WiMAX - 700 MHz
  • 3G - 2100 MHz, 850 MHz, 900 MHz
  • GSM - 1800 MHz, 1900 MHz, 850 MHz
  • RFiD - 865 - 868 MHz, 902 - 928 MHz
  • ISM - 868-870 MHz
Applications
  • PtM Connections
Compatible with
  • Teltonika - RUT230, RUT240, RUT950, RUT955
Plots
  •
  • No plots available for this antenna.
WiBOX System Integration

WiBOX system is desired for building systems composed of few antenna systems. To realize this possibility, there are No. 4 of additional holes for another antenna connectors.

Any information provided by Wireless Instruments Sp. z o.o. is believed to be accurate and reliable. All specifications are subject to change without notice.
