WiBOX SA MDBC245-30-12HV

WiBOX SA MDBC245-30-12HV is concurrent dual band (DBC) (2,4 and 5 GHz) H&V polarity MIMO 2x2 panel antenna. It can operate at two frequencies simulteneously, at 2.4 GHz and at 5 GHz. According to medium gain, it can be used on short and medium distances, for example for hotspots in schools, stadiums, offices or some public places. Can work also with mobile devices. It can work indoor and outdoor (IP67) as well. Wide frequency band (2.4-2.5 GHz & 5.1-5.9 GHz) allows to easily find suitable frequency for the operation. The antenna comes with No. 2 RP SMA plug connectors (it could be also with RP TNC plug, MMCX, u.FL or Nf outside conectors), and it’s designed for work in concurrent dual band technology, which means that SA MDBC245-30-12HV radiates simultaneously at both operating frequencies using only one single connector for 2.4 and 5 GHz signals. It’s predicted mainly for special access points working in the systems where two bands "frequencies" are diplexed for one antenna connector, from the companies as Cisco, Aruba Networks, Huawei, Xirrus and other. The antenna is integrated with the top quality WiBOX Medium box system.

MIMO 2x2
ABS
Need more information about this product ?
Contact with our
sales manager
Where to buy
Share this product on
Electrical specification
Band 1
Band 2
Frequency
2.4 - 2.5 GHz
5.1 - 5.9 GHz
Gain
12 dBi
12 dBi
VSWR
<1.50, max < 2.00
<1.50, max < 2.00
Beamwidth
30°/30°   +/- 5°
30°/30°   +/- 5°
Polarization
H&V
H&V
Front-to-Back
> 20 dB
> 20 dB
Separation between Connectors
> 30 dB
> 25 dB
Impedance
50 Ω
Max Input Power
50 W
Lighting Protection
No
DC Ground
Yes
Mechanic specification
Material
ABS
Outer dimensions
27.2 x 27.6 x 9.6 cm
10.71 x 10.87 x 3.78 inch
Connector
RJ45 & 2xSMA
Weight
1.6 kg
Operating temperature
from -40°C to 80°C
from -40°F to 176°F
Mounting Kit
Dimensions
9.9 x 10.5 x 14.8 cm
3.9 x 4.13 x 5.83 inch
Regulation Range
+/- 30°
Weight
0.87 kg
Mast Dimensions Range
250 - 650mm
Material
Polyamide with fiberglass + galvanized steel U-Bolts
Systems
  • LTE band - 40, 41
  • WLAN - 2.4 GHz, 5 GHz
  • WiMAX - 2.3 GHz, 2.5 GHz, 5 GHz
  • RFiD - 2400 - 2483 MHz, 5725 - 5875 MHz
  • Bluetooth - 2400-2483 MHz
  • ISM - 2400-2483 MHz, 5725-5875 MHz
Applications
  • Stadiums, Public Places
  • Hotspot
  • PtP connections
  • PtM Connections
  • System Integration
Compatible with
  • Ruckus Wireless - ZoneFlex 7372-E
  • Aruba Networks - AP-204, IAP-204
Plots

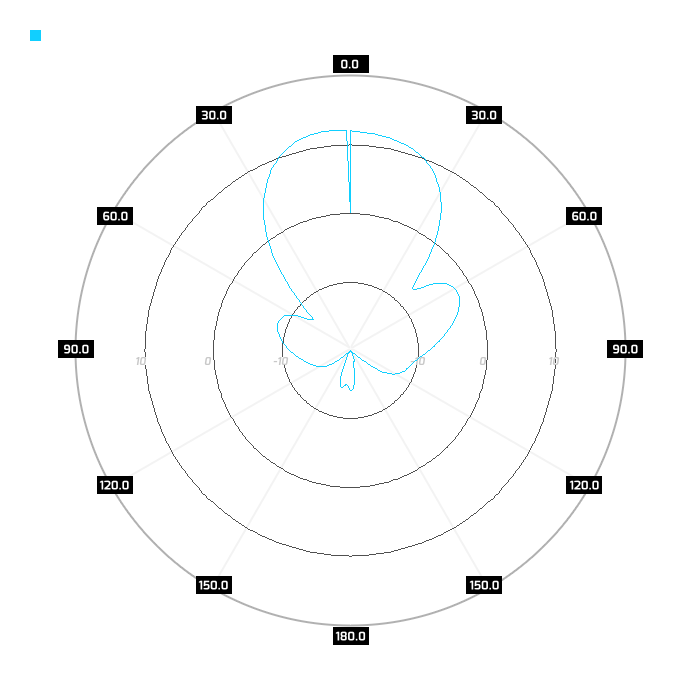

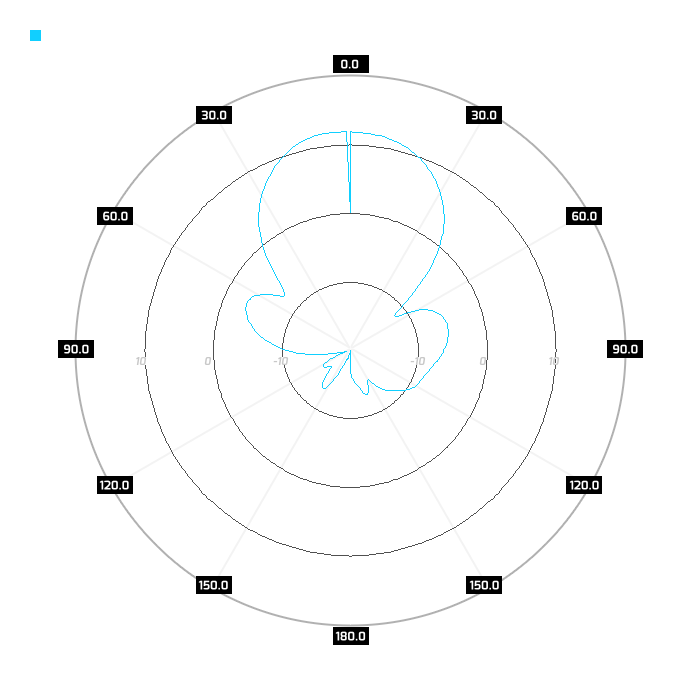

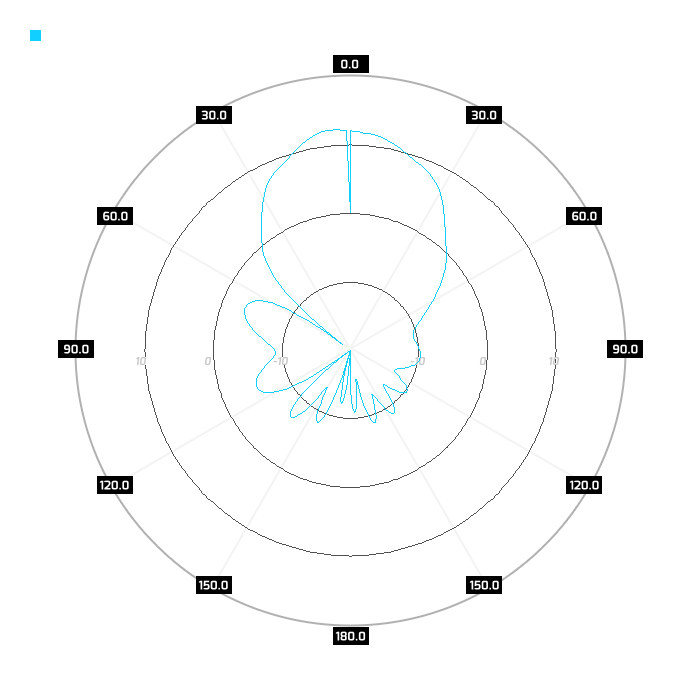

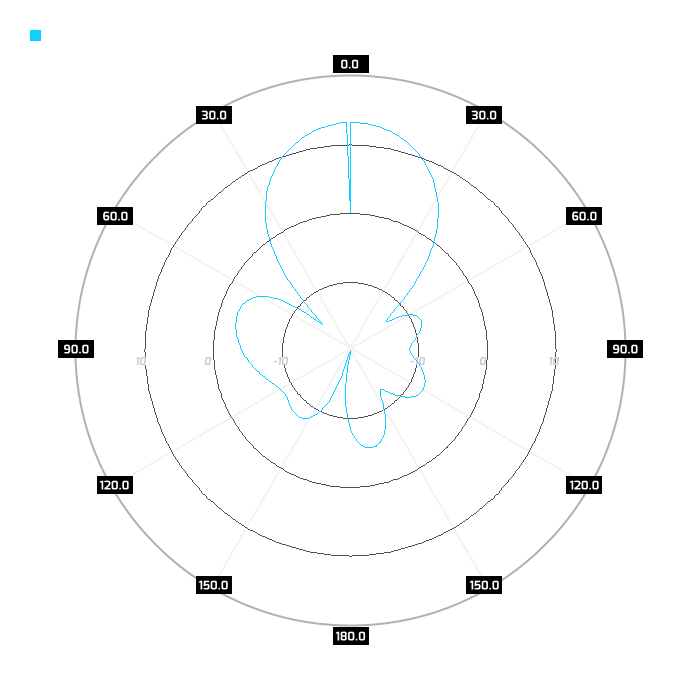

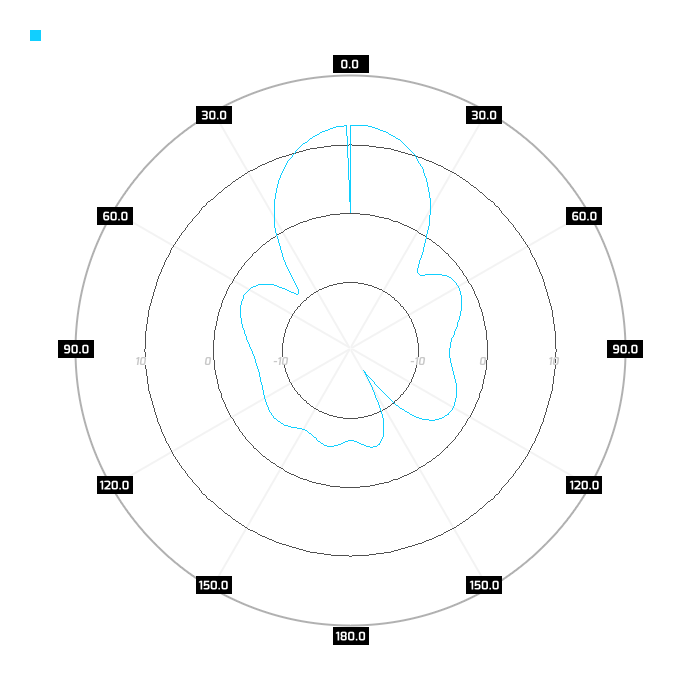

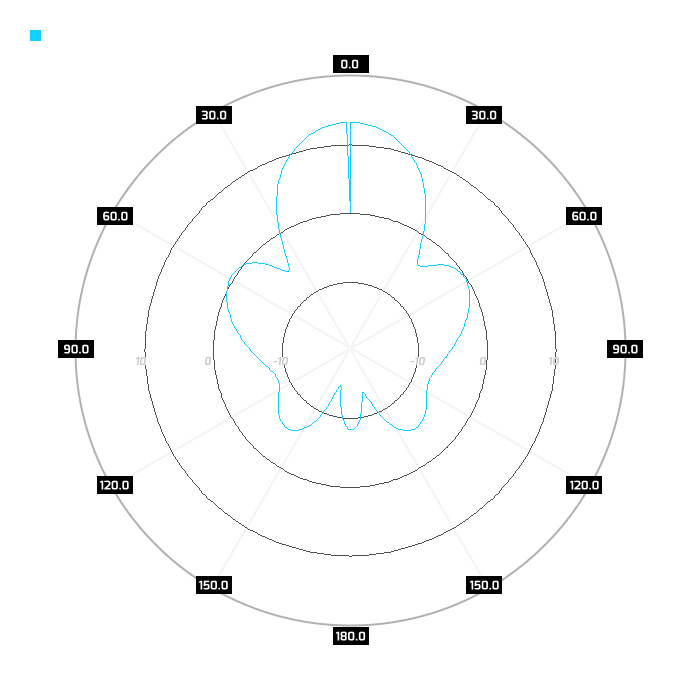

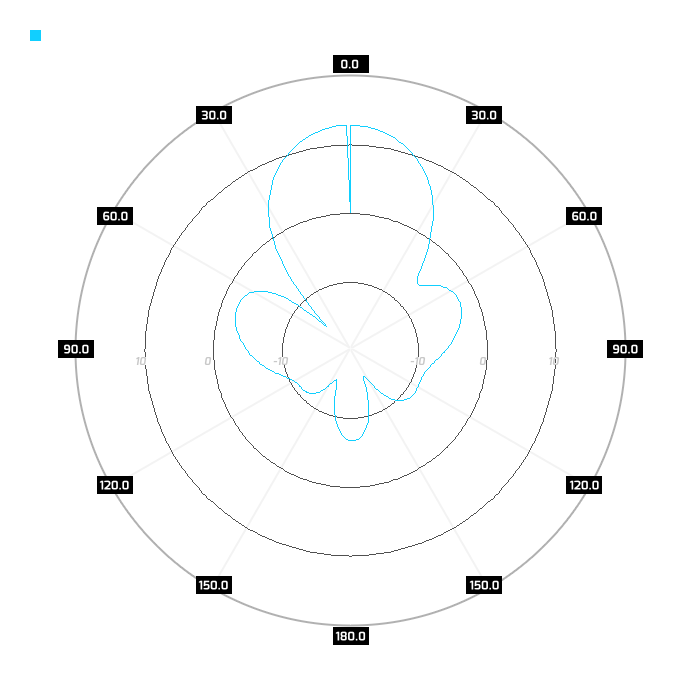

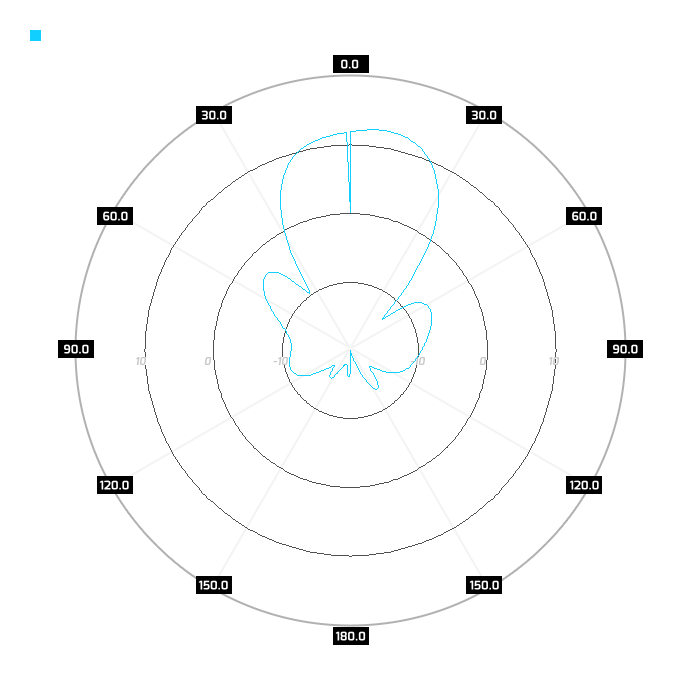

H-pol, azimuth, 2.45GHzH-pol, elev, 2.45GHzV-pol, azimuth, 2.45GHzV-pol, elev, 2.45GHzH-pol, azimuth, 5.5GHzH-pol, elev, 5.5GHzV-pol, azimuth, 5.5GHzV-pol, elev, 5.5GHz
WiBOX Medium
Big, ergonomic box

Big and voluminous BOX in WiBOX systems enables the possibility to instal different radio equipment inside.

Outer dimensions
Inner dimensions
Solid WiBOX for any outdoor conditions

Every WiBOX systems are predicted to use outdoor, they are made of UV resistant ABS plastic material, which is also resistant for bad weather conditions like rain, snow, humidity. Special designed sealing systems guarantees IP67 waterproof level. WiBOX systems can work in any weather conditions, temperature range is from -40°C up to 80°C.

Wall or pole mast mounting

Comprehensiveness of WiBOX system installation, WiBOX system can be installed using WiMount mounting system on a pole mast or a wall.

Waterproof WiBOX construction

WiBOX system has certified IP67 waterproof level. It predicts the system to be used in any outdoor applications on the mast or on a wall. WiBOX system is equipped with top quality RJ45 waterproof system or with standard fee-thru unit to install Ethernet cable to the WiBOX, keeping the waterproof performances.

WiBOX System Integration

WiBOX system is desired for building systems composed of few antenna systems. To realize this possibility, there are No. 4 of additional holes for another antenna connectors.

Special mounting system
WiMount

WiMount bracket is designed to connect stability and attractive shape in one product. This aesthetic design is made of a special fiberglass reinforced plastic, which is rigid even in extremely weather conditions. Innovative shape and the plastic instead of metal bracket, offers better performances and no rust during all life-time. WiMount enables the antenna position aligning in two polarizations.
