WiBOX SA M25-90-15X

WiBOX SA M25-90-15X is a MIMO 2x2 sector antenna operating at the frequency band: 2.4 – 2.7 GHz with 15 dBi gain. The antenna can be used in point-to-multipoint (PMP) topology for covering small and medium size areas as the hotspot in schools, halls, stadiums or another public places. It can work indoor and outdoor (IP 67). It works with the systems of: WLAN (802.11b/g/n), WiMAX, LTE, Bluetooth, ISM, RFiD. The antenna is integrated with the top quality WiBOX Extra Large box system.

MIMO 2x2
ABS
DownloadDatasheetWiBOX SA M25-90-15X
Download
Need more information about this product ?
Contact with our
sales manager
Where to buy
Share this product on
Electrical specification
Frequency
2.4 - 2.7 GHz
Gain
15 dBi
VSWR
<1.50, max < 1.80
Beamwidth
15°/86°
Polarization
X
Cross-Polar Isolation
>24 dB
Front-to-Back
> 20 dB
Separation between Connectors
> 25 dB
Impedance
50 Ω
Max Input Power
50 W
Lighting Protection
No
DC Ground
Yes
Mechanic specification
Material
ABS
Outer dimensions
29.2 x 48.6 x 10.6 cm
11.5 x 19.13 x 4.17 inch
Connector
RJ45 & 2xSMA
Weight
2 kg
Operating temperature
from -40°C to 80°C
from -40°F to 176°F
Mounting Kit
Dimensions
9.9 x 10.5 x 14.8 cm
3.9 x 4.13 x 5.83 inch
Regulation Range
+/- 30°
Weight
0.87 kg
Mast Dimensions Range
25 - 65mm
Material
Polyamide with fiberglass + galvanized steel U-Bolts
Systems
  • LTE band - 7, 38, 40, 41, 53, 69
  • WLAN - 2.4 GHz
  • WiMAX - 2.3 GHz, 2.5 GHz
  • RFiD - 2400 - 2483 MHz
  • Bluetooth - 2400-2483 MHz
  • ISM - 2400-2483 MHz
Applications
  • System Integration
Plots

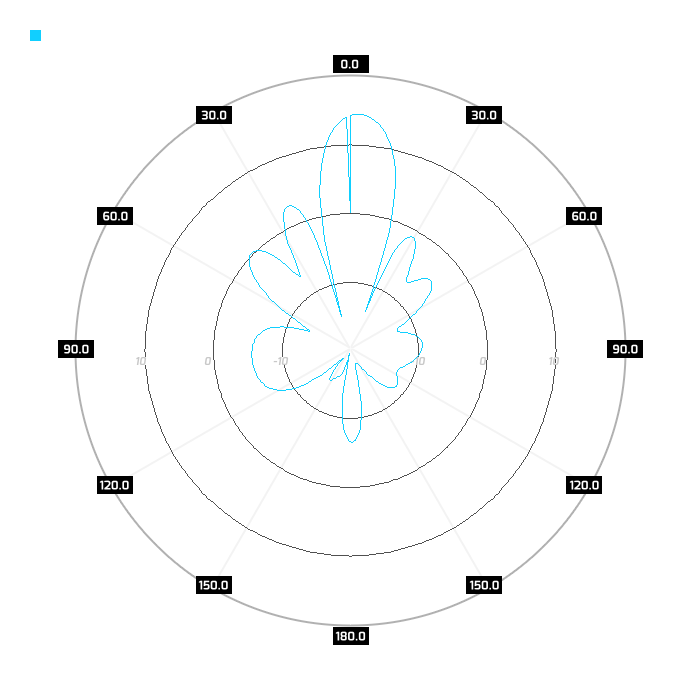

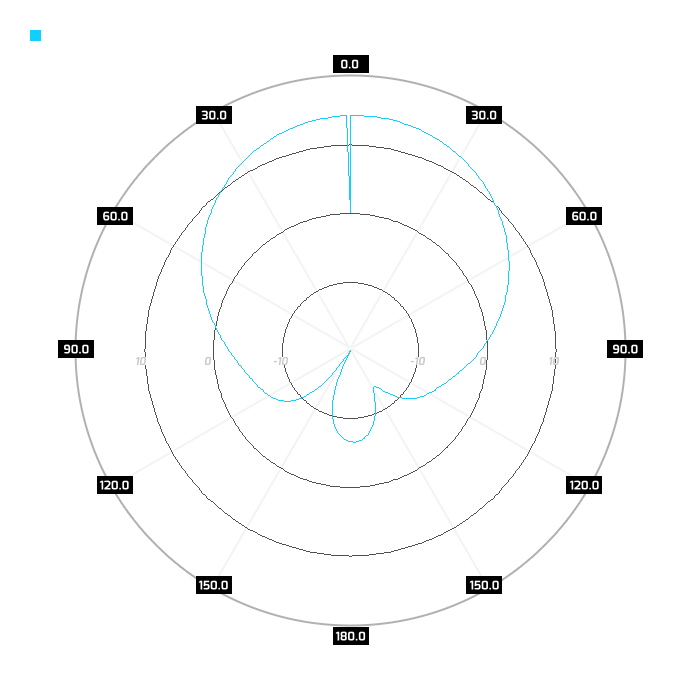

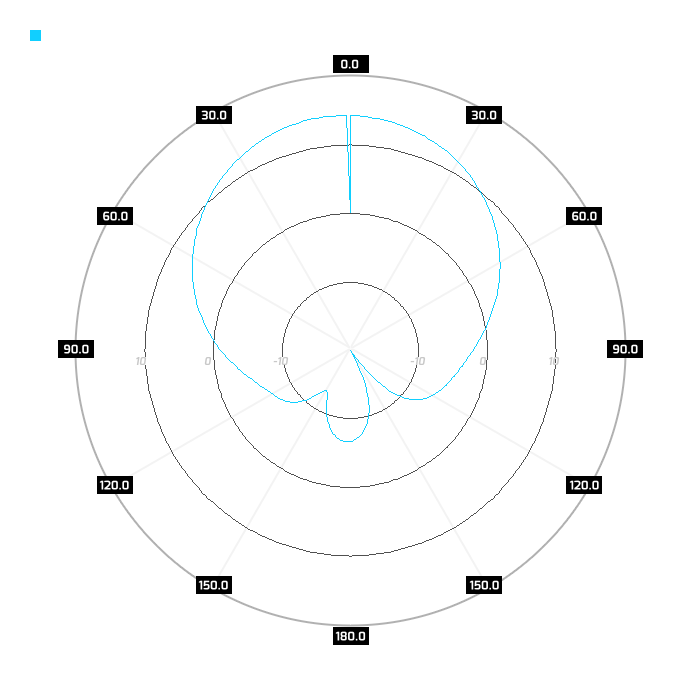

Port 1, azimuthPort 1, elev.Port 2, azimuthPort 2, elev.
WiBOX Extra Large
Big, ergonomic box

Big and voluminous BOX in WiBOX systems enables the possibility to instal different radio equipment inside.

Outer dimensions
Inner dimensions
Solid WiBOX for any outdoor conditions

Every WiBOX systems are predicted to use outdoor, they are made of UV resistant ABS plastic material, which is also resistant for bad weather conditions like rain, snow, humidity. Special designed sealing systems guarantees IP67 waterproof level. WiBOX systems can work in any weather conditions, temperature range is from -40°C up to 80°C.

Wall or pole mast mounting

Comprehensiveness of WiBOX system installation, WiBOX system can be installed using WiMount mounting system on a pole mast or a wall.

Waterproof WiBOX construction

WiBOX system has certified IP67 waterproof level. It predicts the system to be used in any outdoor applications on the mast or on a wall. WiBOX system is equipped with top quality RJ45 waterproof system or with standard see-thru unit to install Ethernet cable to the WiBOX, keeping the waterproof performances.

WiBOX System Integration

WiBOX system is desired for building systems composed of few antenna systems. To realize this possibility, there are 4  additional holes for another antenna connectors.

Special mounting system
WiMount

WiMount bracket is designed to connect stability and attractive shape in one product. This aesthetic design is made of a special fiberglass reinforced plastic, which is rigid even in extremely weather conditions. Innovative shape and the plastic instead of metal bracket, offers better performances and no rust during all life-time. WiMount enables the antenna position aligning in two polarizations.

Made for Mikrotik®

This product was qualified for Made For MikroTik programm, which signify the products MikroTik friendly. The antennas and enclosures are compatible with MikroTik Routerboards and other stuff which is predicted to work with MT products. The reason why this product its certification is a big installation compartment, which gives possibility to install almost every electronic stuff available on the market, which probably makes it the most usable and compatible product there is.

Any information provided by Wireless Instruments Sp. z o.o. is believed to be accurate and reliable. All specifications are subject to change without notice.
