WiBOX SA D8M5-90-17HV SLIM SMA

Antenna WiBOX SA D8M5-90-17HV SLIM SMA is designed specially for the Mimosa A5C. The antenna comes wth No. 8 SMA Female connectors (MIMO 8x8 - No. 8 ports), the solution offers 90° of coverage with the gain of 17 dBi in HV polariztion which is recommended by Mimosa technical team. You need only one antenna for Mimosa A5C. The antenna is equipped with the fiber-glass WiMount mounting. Additional 3dBi of beam forming gain achieved by using the Mimosa A5C. Include special mounting kit for 2x Mimosa A5C.

MIMO 4x4
ABS
Need more information about this product ?
Contact with our
sales manager
Where to buy
Share this product on
Electrical specification
Frequency
5.1 - 5.95 GHz
Gain
17 dBi
VSWR
<1.60, max < 2.00
Beamwidth
90°/9°
Polarization
H&V
Front-to-Back
> 20 dB
Separation between Connectors
> 25 dB
Impedance
50 Ω
Max Input Power
50 W
Lighting Protection
No
DC Ground
Yes
Mechanic specification
Material
ABS
Outer dimensions
39.2 x 39.6 x 7.7 cm
15.43 x 15.59 x 3.03 inch
Connector
RJ45 & 8xSMA
Weight
0 kg
Operating temperature
from -40 +70°C to °C
from -40°F to 32°F
Mounting Kit
Dimensions
9.9 x 10.5 x 14.8 cm
3.9 x 4.13 x 5.83 inch
Regulation Range
+/- 30°
Weight
0.87 kg
Mast Dimensions Range
25 - 65mm
Material
Polyamide with fiberglass + galvanized steel U-Bolts
Systems
  • WLAN - 5 GHz
  • WiMAX - 5 GHz
  • RFiD - 5725 - 5875 MHz
  • ISM - 5725-5875 MHz
Compatible with
  • MIMOSA - A5C
Plots

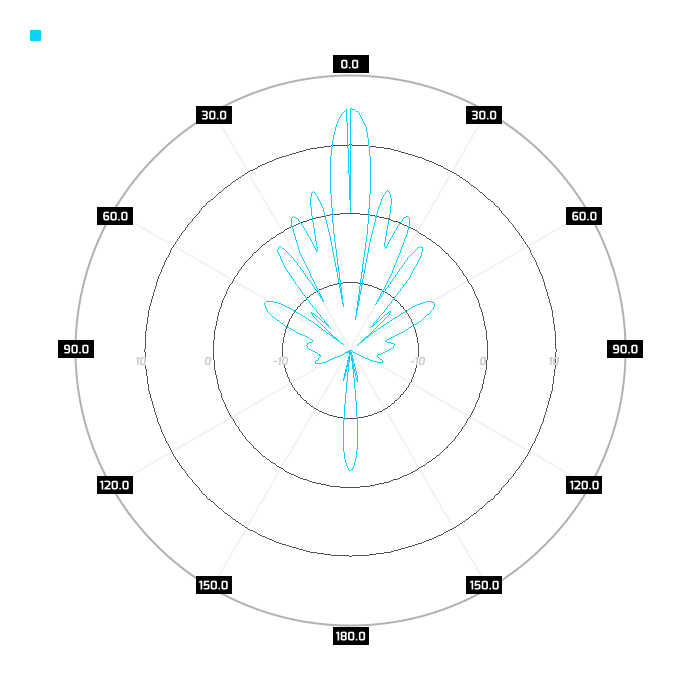

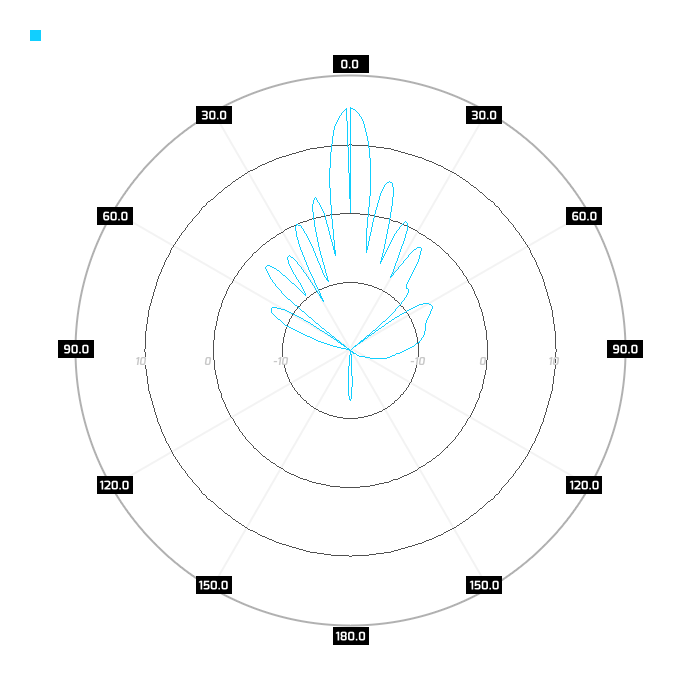

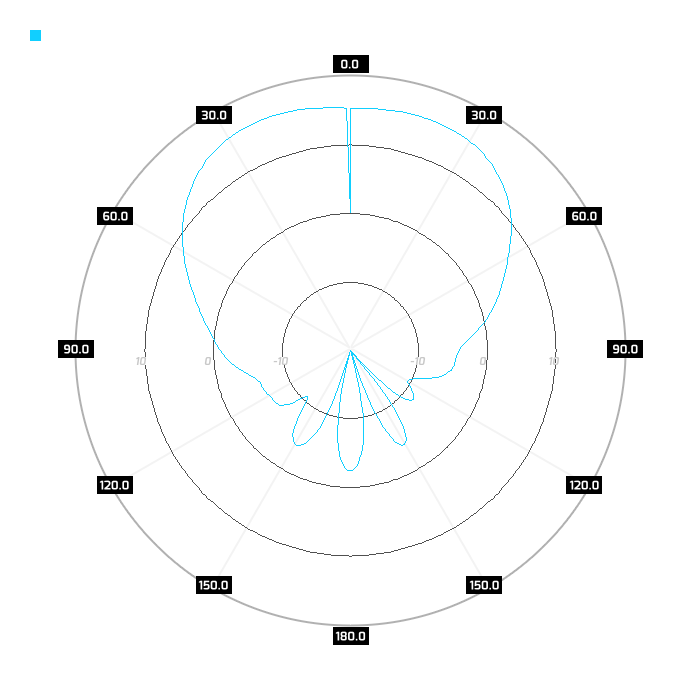

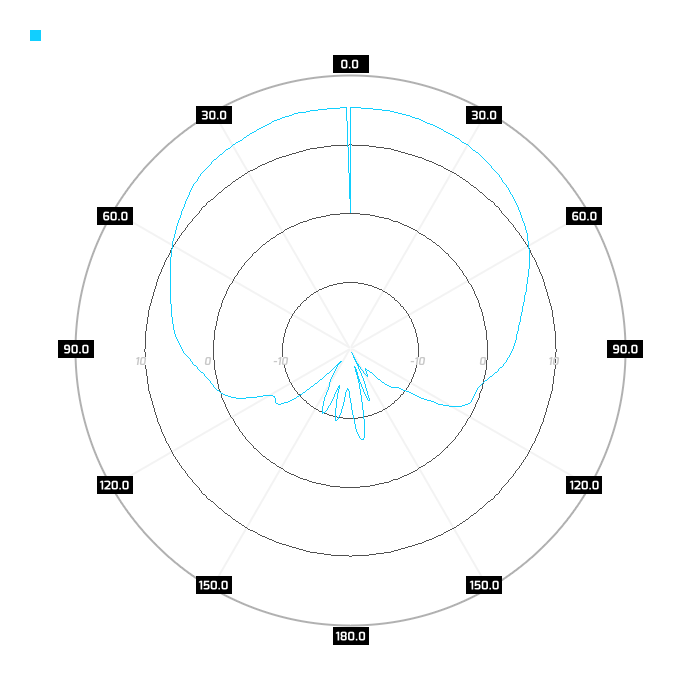

azimuth, pol. Helev., pol. Hazimuth, pol. Helev., pol. V
Solid WiBOX for any outdoor conditions

Every WiBOX systems are predicted to use outdoor, they are made of UV resistant ABS plastic material, which is also resistant for bad weather conditions like rain, snow, humidity. Special designed sealing systems guarantees IP67 waterproof level. WiBOX systems can work in any weather conditions, temperature range is from -40°C up to 80°C.

Wall or pole mast mounting

Comprehensiveness of WiBOX system installation, WiBOX system can be installed using WiMount mounting system on a pole mast or a wall.

Waterproof WiBOX construction

WiBOX system has certified IP67 waterproof level. It predicts the system to be used in any outdoor applications on the mast or on a wall. WiBOX system is equipped with top quality RJ45 waterproof system or with standard fee-thru unit to install Ethernet cable to the WiBOX, keeping the waterproof performances.

WiBOX System Integration

WiBOX system is desired for building systems composed of few antenna systems. To realize this possibility, there are No. 4 of additional holes for another antenna connectors.

Special mounting system
WiMount

WiMount bracket is designed to connect stability and attractive shape in one product. This aesthetic design is made of a special fiberglass reinforced plastic, which is rigid even in extremely weather conditions. Innovative shape and the plastic instead of metal bracket, offers better performances and no rust during all life-time. WiMount enables the antenna position aligning in two polarizations.
