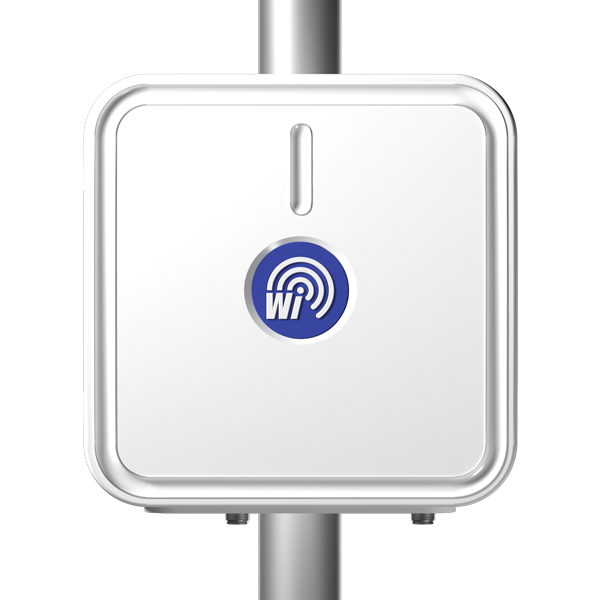

WiBOX PA MMB0727-8X Nf

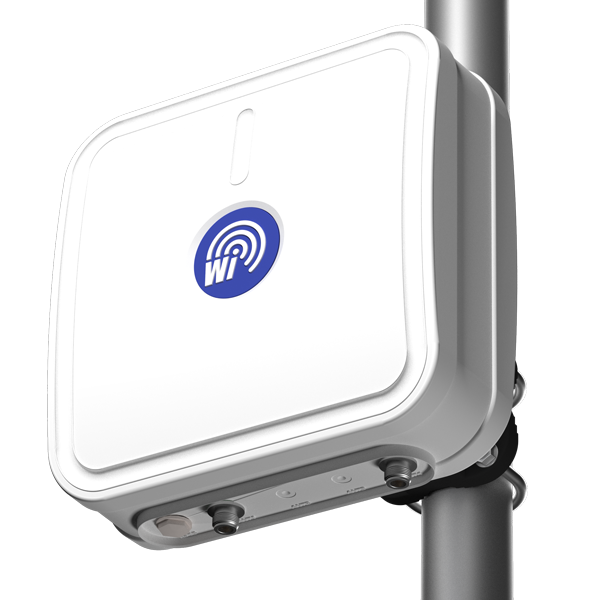

WiBOX PA MMB0727-8X NF is antenna predicted for 4G LTE mainly, but is compatible with 3G and 2G as well. The antenna improves the signal in rural/suburban and locations where the mobile signal is weak. Due to very wide working frequency range, the antenna is universal client side station for LTE bands like LTE700/800/1800/1900/2100/2300/2600 (including new 800MHz frequency using for LTE). Due to small dimensions, aesthetic look and highest quality, the system can be installed in any location, even for the most demanding customers. WiBOX PA MMB0727-8X NF can operate indoor and outdoor (IP67). The antenna is integrated with the top quality WiBOX Medium. It comes with 2 x NFemale panel mount outdoor connector.



MIMO 2x2
ABS
Need more information about this product ?
Contact with our
sales manager
Where to buy
Share this product on
Electrical specification
Band 1
Band 2
Band 3
Frequency
0.694 - 0.96 GHz
1.7 - 2.2 GHz
2.2 - 2.7 GHz
Gain
7 dBi ±1
7 dBi ±1
7 dBi ±1
VSWR
<1.60, max < 2.00
<1.70, max < 2.00
<1.70, max < 2.00
Beamwidth
70°/70°   +/- 15°
70°/70°   +/- 15°
70°/70°   +/- 15°
Polarization
X
X
X
Front-to-Back
> 10 dB
> 10 dB
> 10 dB
Separation between Connectors
> 20 dB
> 20 dB
> 20 dB
Impedance
50 Ω
Max Input Power
50 W
Lighting Protection
No
DC Ground
No
Mechanic specification
Material
ABS
Outer dimensions
27.2 x 27.6 x 9.6 cm
10.71 x 10.87 x 3.78 inch

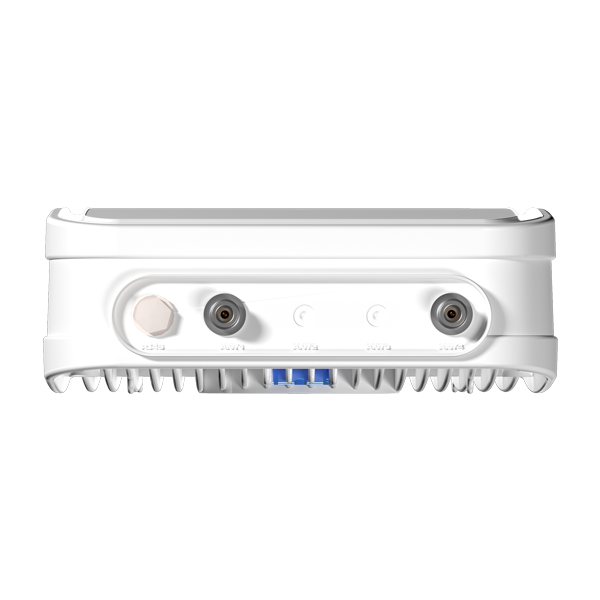

Connector
2xNF
Weight
2.5 kg
Operating temperature
from -40 +50°C to °C
from -40°F to 32°F
Mounting Kit
Dimensions
9.9 x 10.5 x 14.8 cm
3.9 x 4.13 x 5.83 inch
Regulation Range
+/- 30°
Weight
0.87 kg
Mast Dimensions Range
250 - 650mm
Material
Polyamide with fiberglass + galvanized steel U-Bolts
Systems
  • LTE band - 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 2305-2360
  • WiMAX - 2.3 GHz, 2.5 GHz, 700 MHz
  • 3G - 2100 MHz, 850 MHz, 900 MHz
  • GSM - 1800 MHz, 1900 MHz, 850 MHz
  • RFiD - 2400 - 2483 MHz, 865 - 868 MHz, 902 - 928 MHz
  • ISM - 2400-2483 MHz, 868-870 MHz
  • WLAN - 2.4 GHz
  • Bluetooth - 2400-2483 MHz

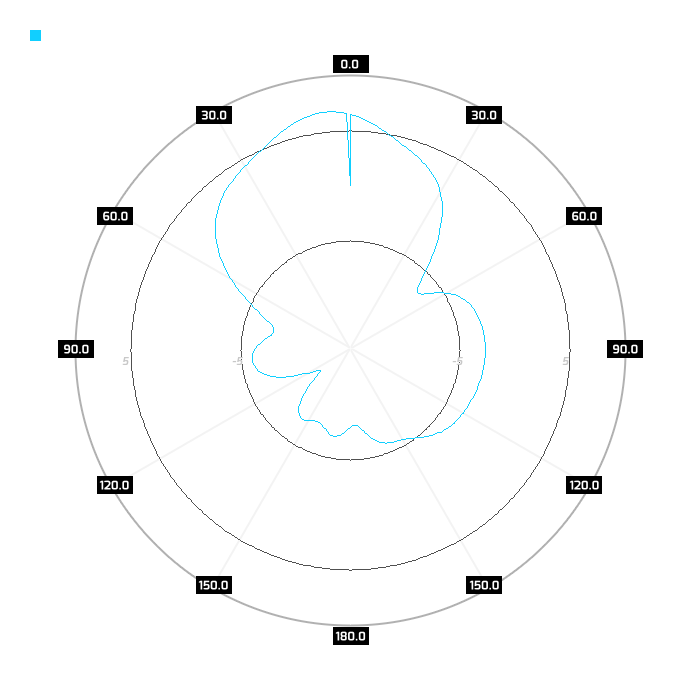

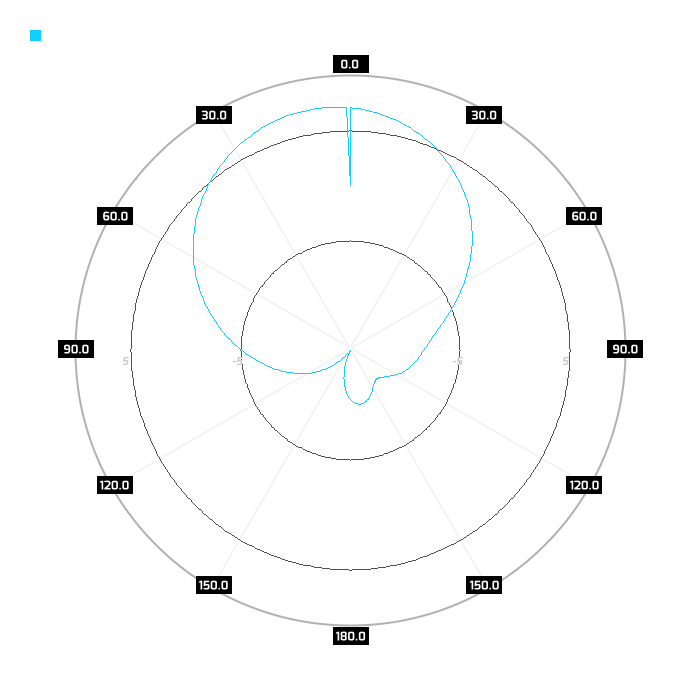

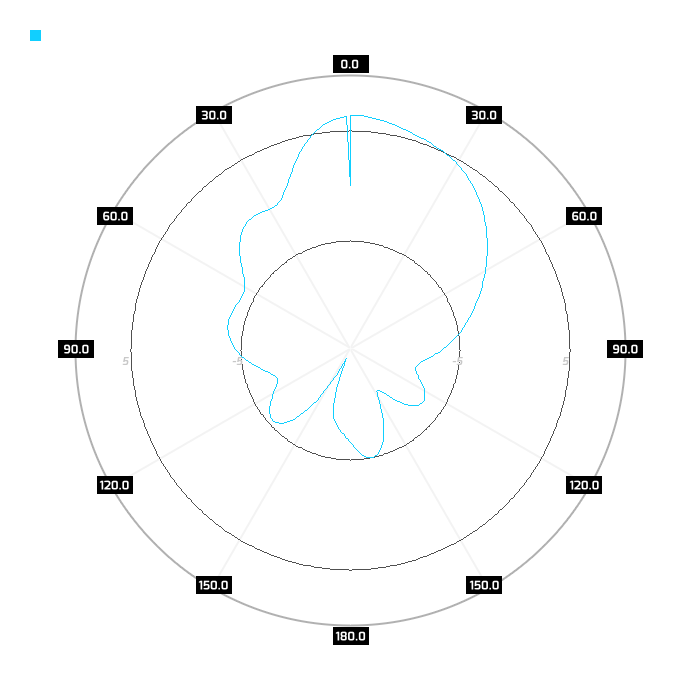

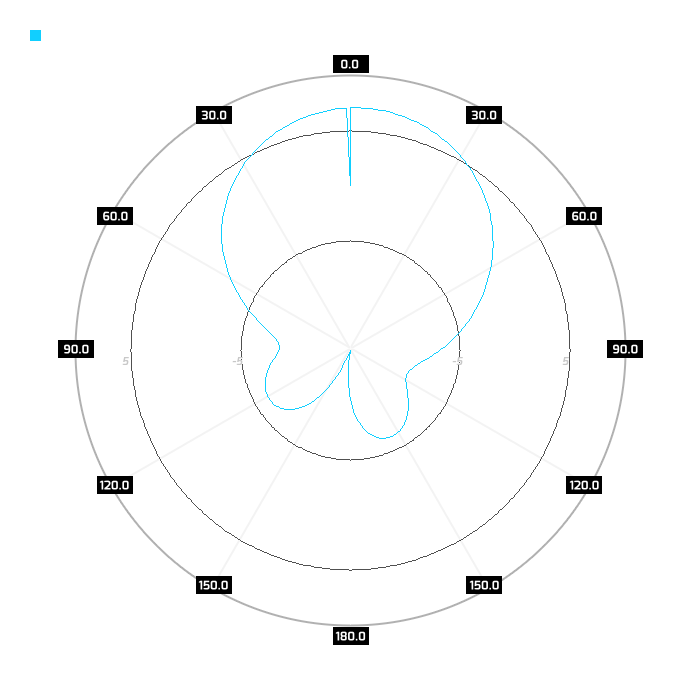

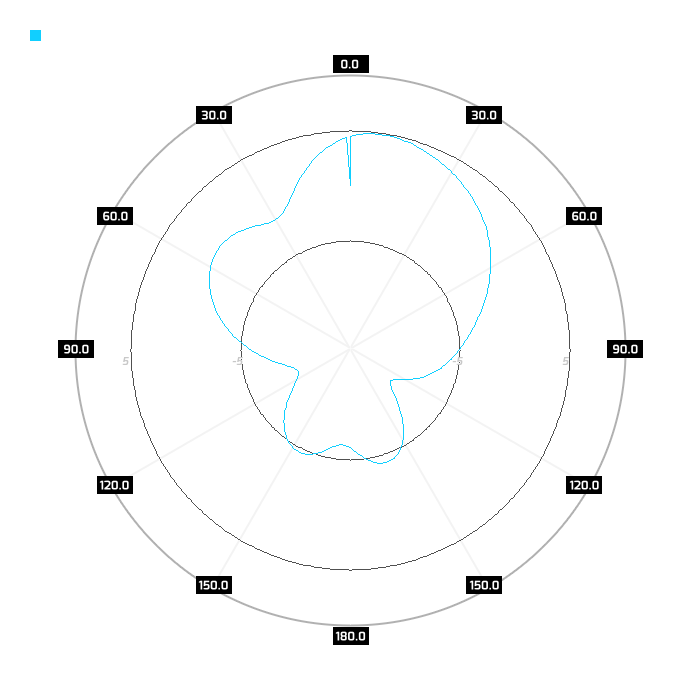

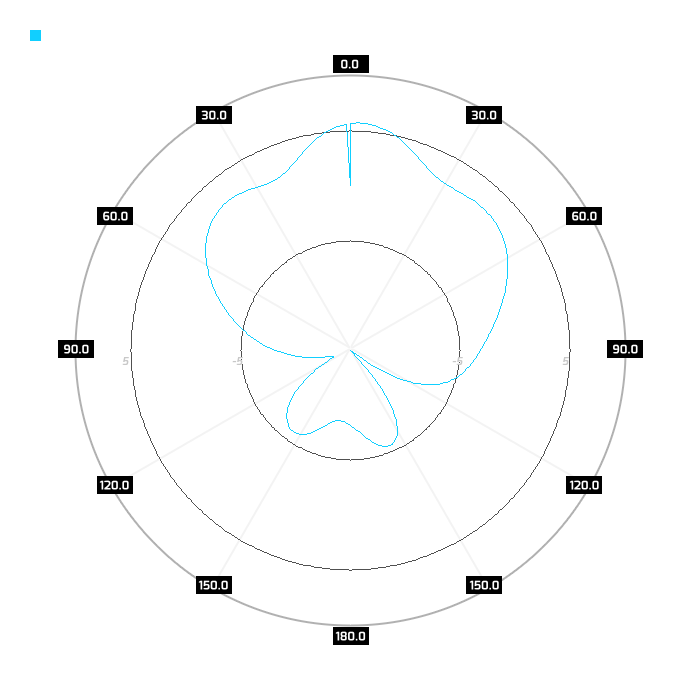

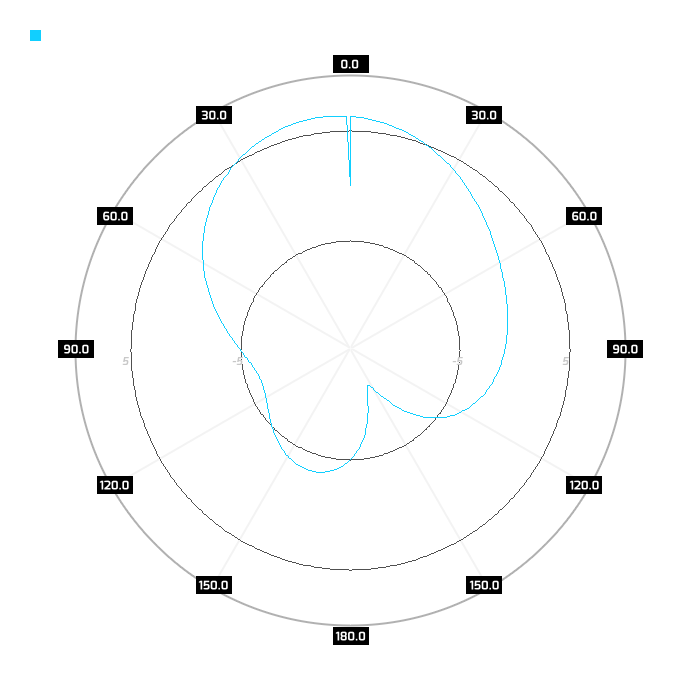

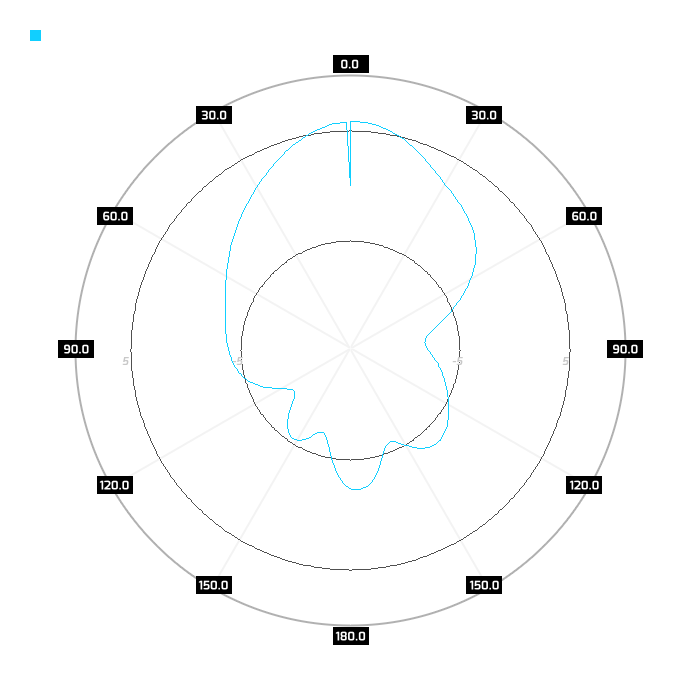

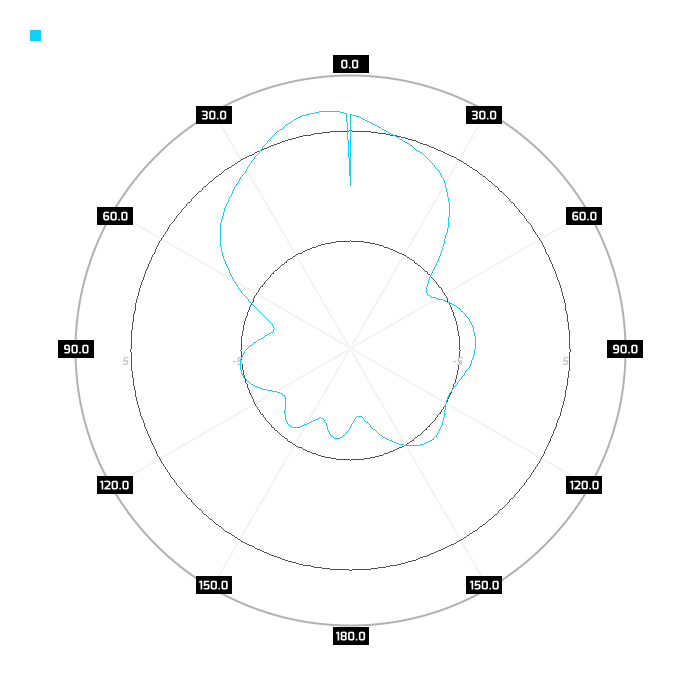

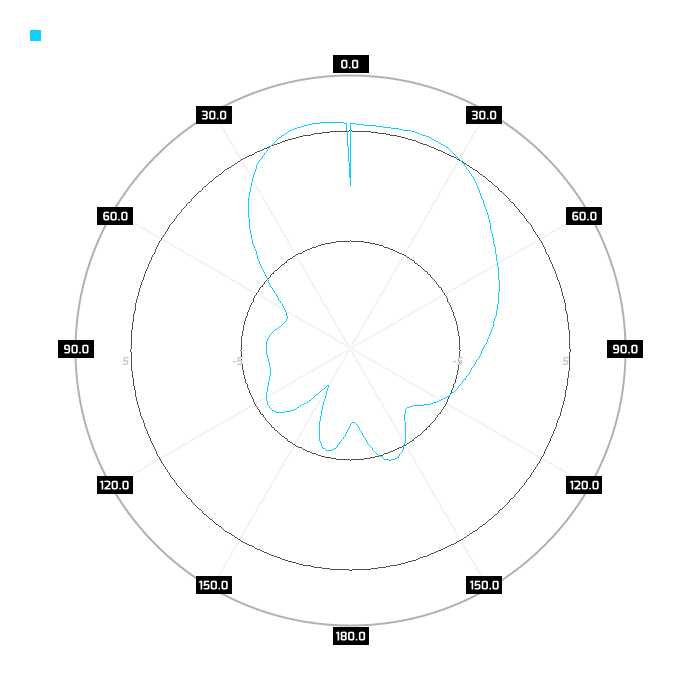

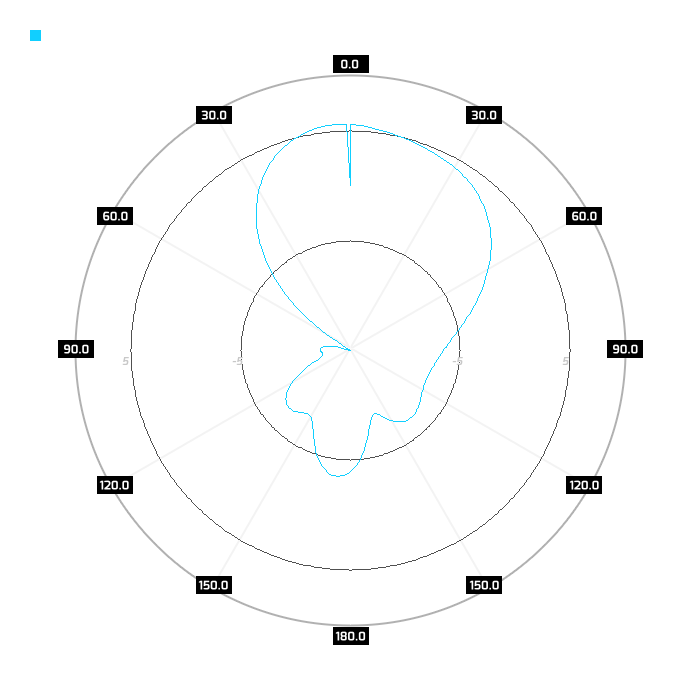

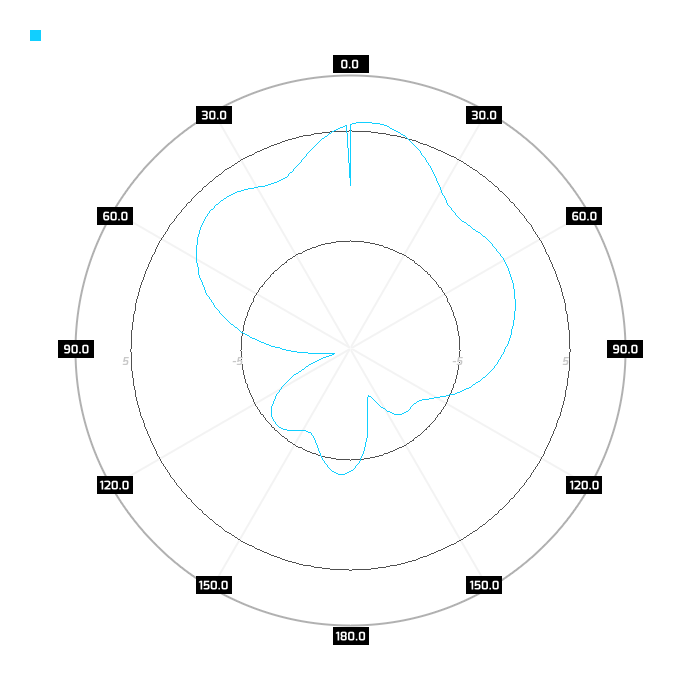

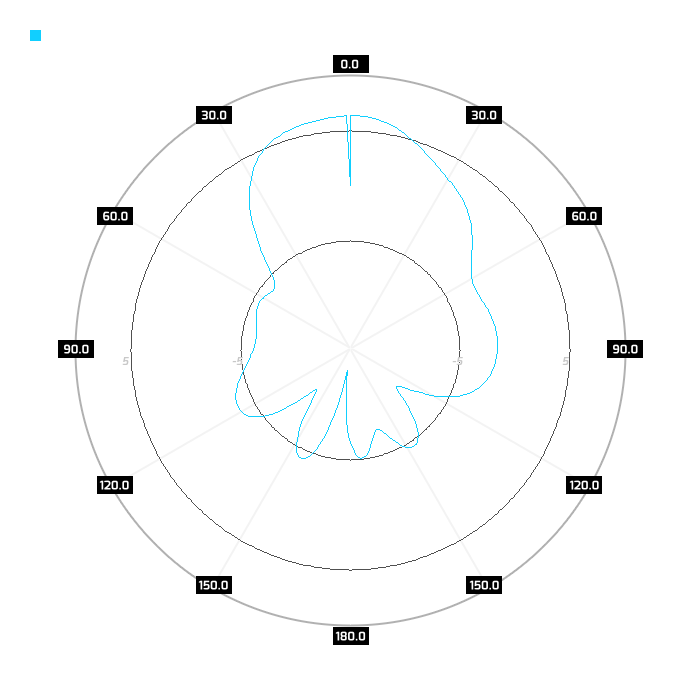

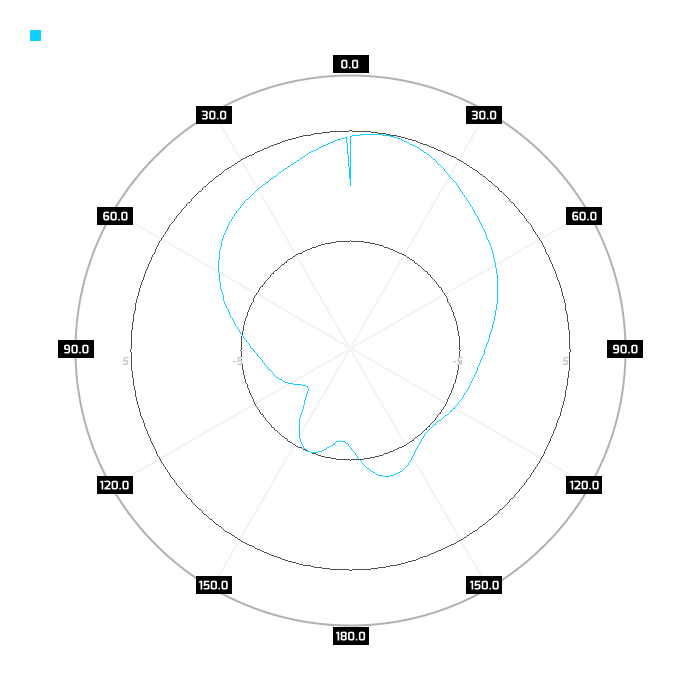

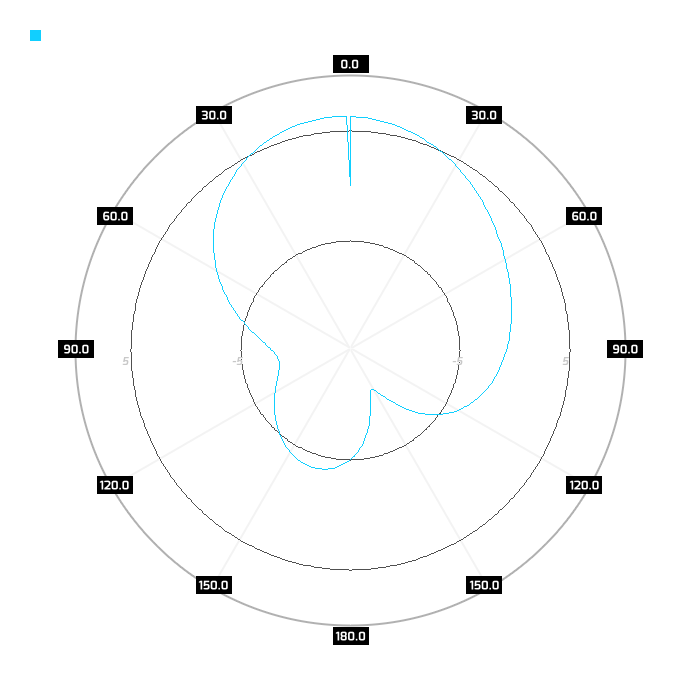

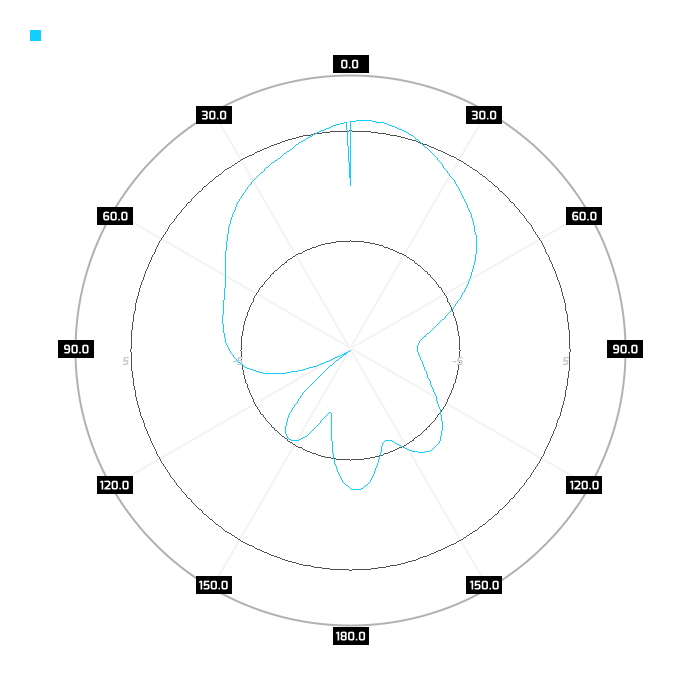

Plots
800Mhz, port 1, azimuth800Mhz, port 1, elev.800Mhz, port 2, azimuth800Mhz, port 2, elev.1800Mhz, port 1, azimuth1800Mhz, port 1, elev.1800Mhz, port 2, azimuth1800Mhz, port 2, elev.2100Mhz, port 1, azimuth2100Mhz, port 1, elev.2100Mhz, port 2, azimuth2100Mhz, port 2, elev.2600Mhz, port 1, azimuth2600Mhz, port 1, elev.2600Mhz, port 2, azimuth2600Mhz, port 2, elev.
Solid WiBOX for any outdoor conditions

Every WiBOX systems are predicted to use outdoor, they are made of UV resistant ABS plastic material, which is also resistant for bad weather conditions like rain, snow, humidity. Special designed sealing systems guarantees IP67 waterproof level. WiBOX systems can work in any weather conditions, temperature range is from -40°C up to 80°C.

Wall or pole mast mounting

Comprehensiveness of WiBOX system installation, WiBOX system can be installed using WiMount mounting system on a pole mast or a wall.

Waterproof WiBOX construction

WiBOX system has certified IP67 waterproof level. It predicts the system to be used in any outdoor applications on the mast or on a wall. WiBOX system is equipped with top quality RJ45 waterproof system or with standard fee-thru unit to install Ethernet cable to the WiBOX, keeping the waterproof performances.

Special mounting system
WiMount

WiMount bracket is designed to connect stability and attractive shape in one product. This aesthetic design is made of a special fiberglass reinforced plastic, which is rigid even in extremely weather conditions. Innovative shape and the plastic instead of metal bracket, offers better performances and no rust during all life-time. WiMount enables the antenna position aligning in two polarizations.

Any information provided by Wireless Instruments Sp. z o.o. is believed to be accurate and reliable. All specifications are subject to change without notice.
