WiBOX PA M4M3-18X Nf

WiBOX PA M4M3-18X Nf jest innowacyjnym projektem zrealizowanym na bazie teflonowego laminatu niskostratnego PTFE. Zawiera dwie anteny panelowe o zysku 18 dBi przeznaczone do zastosowań MIMO 2x2 (Polaryzacja X - skośna +/- 45°) w paśmie pracy anten 3.3 – 3.8 GHz. Laminat teflonowy PTFE zapewnia lepsze parametry i stabilniejszą pracę niż standardowy laminat FR4 powszechnie wykorzystywany do realizacji anten panelowych.  Anteny przeznaczone są do realizacji połączeń punkt- punkt (PTP point-to-point), jak również do połączeń puntu-wielopunkt (PTMP point-to-multipoint) jako antena kliencka, dla technologii WiMAX 3.5 GHz, jak również dla innych systemów bezprzewodowych pracujących w paśmie 3.3 – 3.8 GHz. Zastosowanie znajduje również w systemach 4G – LTE w kanałach: 22, 42, 43. Antena zintegrowana jest z wysokiej jakości obudową WiBOX Medium.

MIMO 2x2
ABS
Need more information about this product ?
Contact with our
sales manager
Where to buy
Share this product on
Electrical specification
Frequency
3.35 - 3.85 GHz
Gain
18 dBi
VSWR
<1.80
Beamwidth
20°/20°   +/- 1°
Polarization
X
Front-to-Back
> 30 dB
Separation between Connectors
> 25 dB
Impedance
50 Ω
Max Input Power
50 W
Lighting Protection
No
DC Ground
Yes
Mechanic specification
Material
ABS
Outer dimensions
27.2 x 27.6 x 9.6 cm
10.71 x 10.87 x 3.78 inch
Connector
RJ45 & 4xNf
Weight
2.7 kg
Operating temperature
from -40°C to 80°C
from -40°F to 176°F
Mounting Kit
Dimensions
9.9 x 10.5 x 14.8 cm
3.9 x 4.13 x 5.83 inch
Regulation Range
+/- 30°
Weight
0.87 kg
Mast Dimensions Range
25 - 65mm
Material
Polyamide with fiberglass + galvanized steel U-Bolts
Systems
  • LTE band - 22, 42, 43, 48, 49, 52
  • WLAN - 3.6 GHz
  • WiMAX - 3.5 GHz
Applications
  • System Integration
Plots

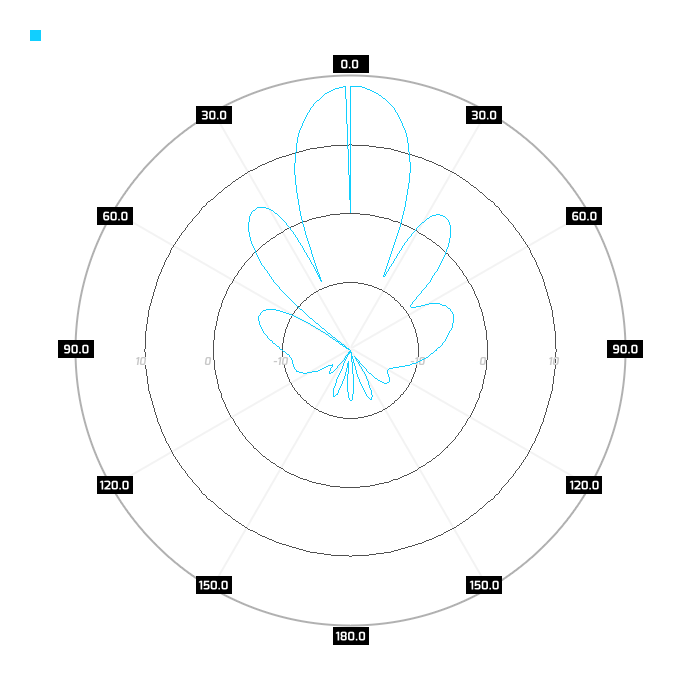

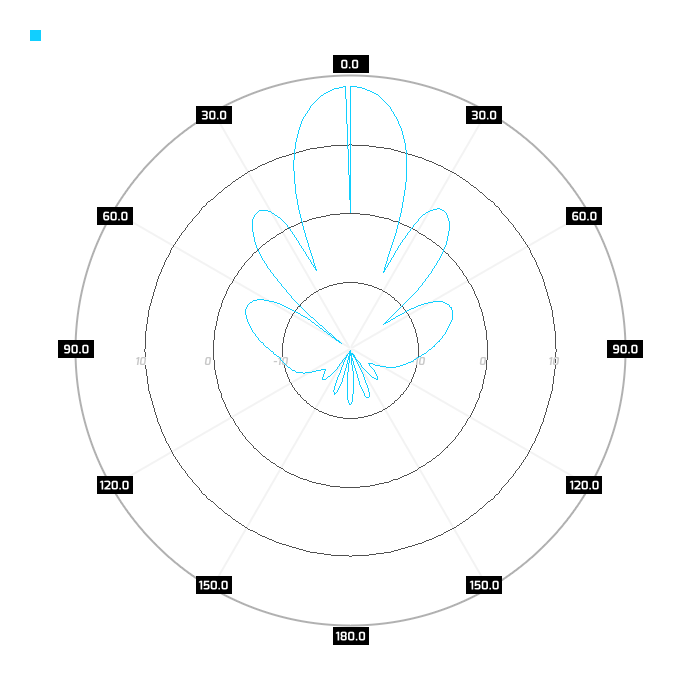

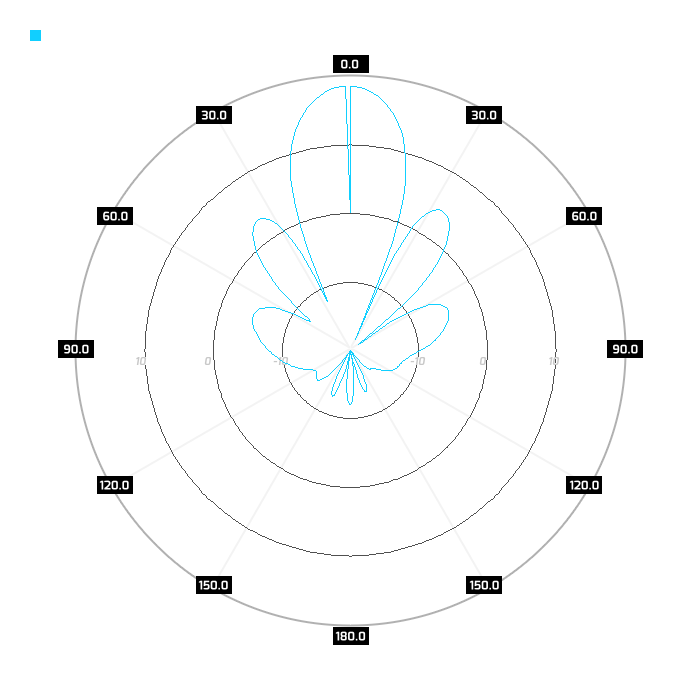

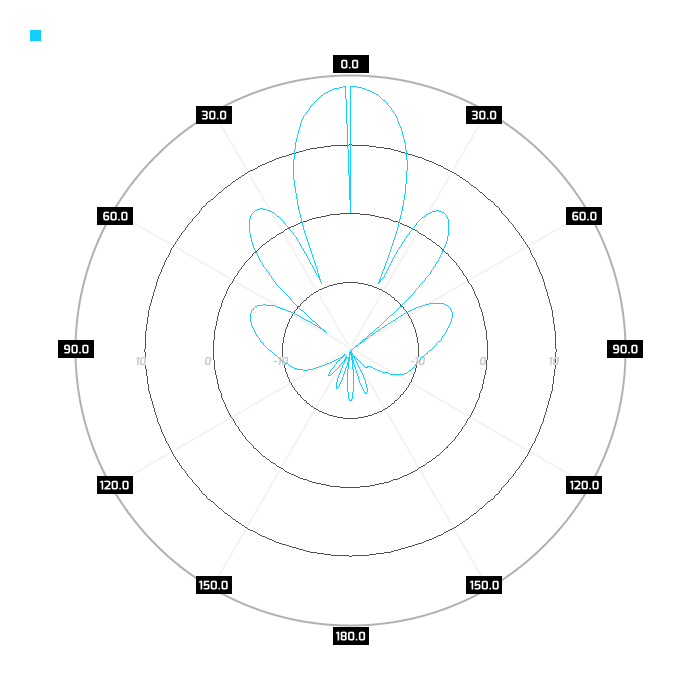

Port 2, elev.Port 1, azimuthPort 1, elev.Port 2, azimuth
WiBOX Medium
Big, ergonomic box

Big and voluminous BOX in WiBOX systems enables the possibility to instal different radio equipment inside.

Outer dimensions
Inner dimensions
Solid WiBOX for any outdoor conditions

Every WiBOX systems are predicted to use outdoor, they are made of UV resistant ABS plastic material, which is also resistant for bad weather conditions like rain, snow, humidity. Special designed sealing systems guarantees IP67 waterproof level. WiBOX systems can work in any weather conditions, temperature range is from -40°C up to 80°C.

Wall or pole mast mounting

Comprehensiveness of WiBOX system installation, WiBOX system can be installed using WiMount mounting system on a pole mast or a wall.

Waterproof WiBOX construction

WiBOX system has certified IP67 waterproof level. It predicts the system to be used in any outdoor applications on the mast or on a wall. WiBOX system is equipped with top quality RJ45 waterproof system or with standard see-thru unit to install Ethernet cable to the WiBOX, keeping the waterproof performances.

WiBOX System Integration

WiBOX system is desired for building systems composed of few antenna systems. To realize this possibility, there are 4  additional holes for another antenna connectors.

Special mounting system
WiMount

WiMount bracket is designed to connect stability and attractive shape in one product. This aesthetic design is made of a special fiberglass reinforced plastic, which is rigid even in extremely weather conditions. Innovative shape and the plastic instead of metal bracket, offers better performances and no rust during all life-time. WiMount enables the antenna position aligning in two polarizations.
