PTP/client antenna

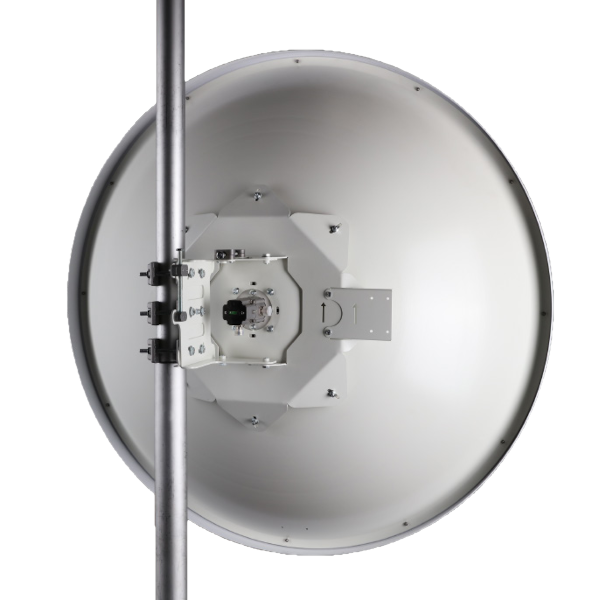

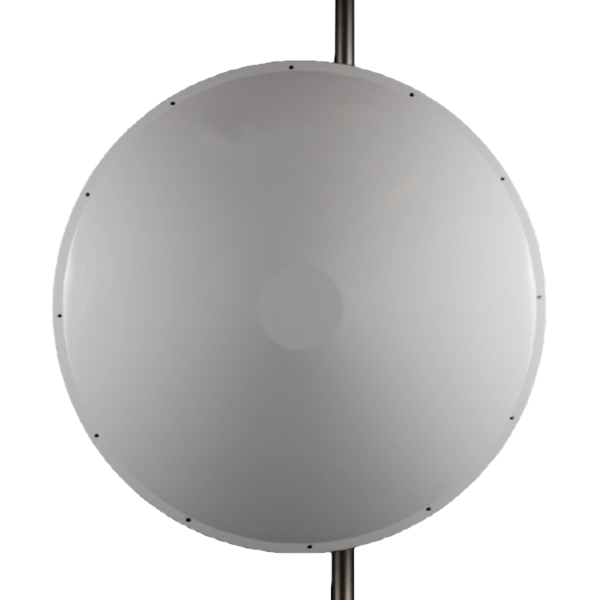

WI-HP537NF-ST 4FT

Dual Polarity High Performance Dish
4.8 - 6.1 GHz, 37 dBi

Features:

  • Wide Band Operation
  • Vertically and Horizontally Polarized
  • Best Solution for Ultra long range links



MIMO 2x2
DownloadDatasheetWI-HP537NF-ST 4FT
Download
Need more information about this product ?
Contact with our
sales manager
Where to buy
Share this product on
Electrical specification
Frequency
4.8 - 6.1 GHz
Gain
37 dBi
VSWR
<1.40
Beamwidth
3°/3°
Polarization
H&V
Cross-Polar Isolation
35 dB
Front-to-Back
> 48 dB
Separation between Connectors
> 45 dB
Impedance
50 Ω
Max Input Power
25 W
Lighting Protection
No
DC Ground
No
Mechanic specification
Material
Aluminium & stainless steel
Outer dimensions
121.9 x 121.9 x 6 cm
47.99 x 47.99 x 2.36 inch
Connector
2xN-Female
Weight
16.5 kg
Operating temperature
from -50°C to 70°C
from -58°F to 158°F
Systems
  • LTE band - 46, 47, 252, 255
  • WLAN - 5 GHz
  • WiMAX - 5 GHz
  • RFiD - 5725 - 5875 MHz
  • ISM - 5725-5875 MHz
Applications
  • PtP connections
  • PtM Connections
Plots
No plots available for this antenna.
  •
  • No plots available for this antenna.
Any information provided by Wireless Instruments Sp. z o.o. is believed to be accurate and reliable. All specifications are subject to change without notice.
