triple band OMNI antenna

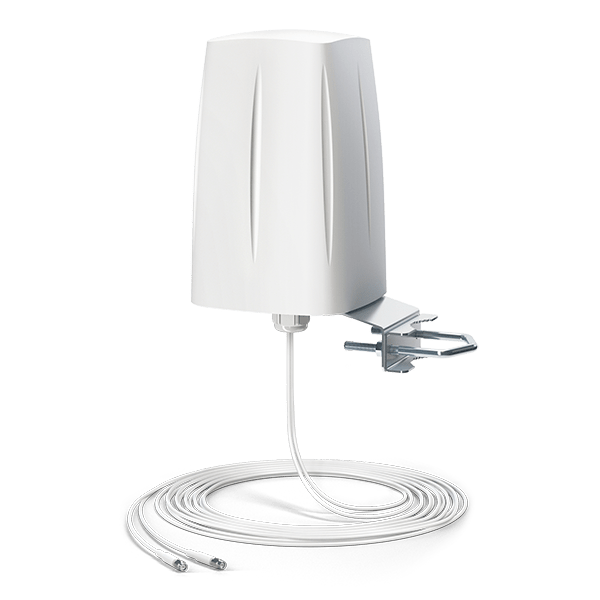

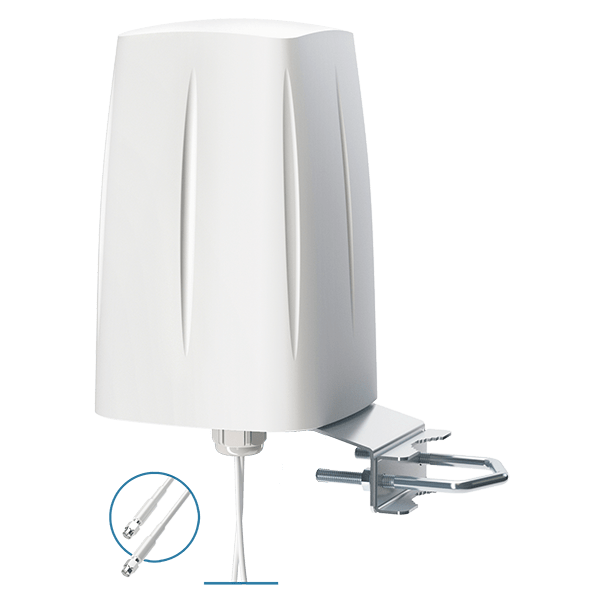

WiSpot LTE MMB0727-4V, MIMO 2x2, 5m SMA

WiSpot LTE MMB0727-4V omnidirectional MIMO 2x2 LTE antenna is working in Vertical polarization, it´s desired for LTE/3G/2G connections. The antenna can be used for the most popular LTE bands (e.g. 3,7,20), frequencies 694-2700 MHz. That antenna is predicted to be installed on the buildings (on the pole or on the wall) as the client antenna or on the moving points like trains, buses, lorries, yachts, boats to receive Internet by LTE/3G. It’s compatible with Teltonika: RUT240, RUT900, RUT950, RUT955, RUTX09, RUTX11 and other MIMO 2x2 LTE/3G/2G modems and routers.

MIMO 2x2
ABS
DownloadDatasheetWiSpot LTE MMB0727-4V, MIMO 2x2, 5m SMA
Download
Need more information about this product ?
Contact with our
sales manager
Where to buy
Share this product on
Electrical specification
● Band 1
● Band 2
● Band 3
Frequency
●0.694 - 0.96 GHz
●1.7 - 2.2 GHz
●2.2 - 2.7 GHz
Gain
●2 dBi
●2 dBi
●4 dBi
VSWR
●<1.60, max < 2.00
●<1.60, max < 2.00
●<1.60, max < 2.00
Beamwidth
●360°/35°   +/- 5°
●360°/35°   +/- 5°
●360°/35°   +/- 5°
Polarization
●V
●V
●V
Impedance
50 Ω
Max Input Power
50 W
Lighting Protection
No
DC Ground
No
Mechanic specification
Material
ABS
Outer dimensions
16 x 24 x 16 cm
6.3 x 9.45 x 6.3 inch
Connector
RJ45 & 2xSMA
Weight
1.5 kg
Operating temperature
from -40°C to 75°C
from -40°F to 167°F
Mounting Kit
Dimensions
9 x 12 x 15 cm
3.54 x 4.72 x 5.91 inch
Regulation Range
°
Weight
0 kg
Mast Dimensions Range
mm
Material
stainless steel
Systems
  • LTE band - 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 70, 85
  • WiMAX - 2.3 GHz, 2.5 GHz, 700 MHz
  • 3G - 2100 MHz, 850 MHz, 900 MHz
  • GSM - 1800 MHz, 1900 MHz, 850 MHz
  • RFiD - 2400 - 2483 MHz, 865 - 868 MHz, 902 - 928 MHz
  • ISM - 2400-2483 MHz, 868-870 MHz
  • WLAN - 2.4 GHz
  • Bluetooth - 2400-2483 MHz
Plots
  •
  • No plots available for this antenna.

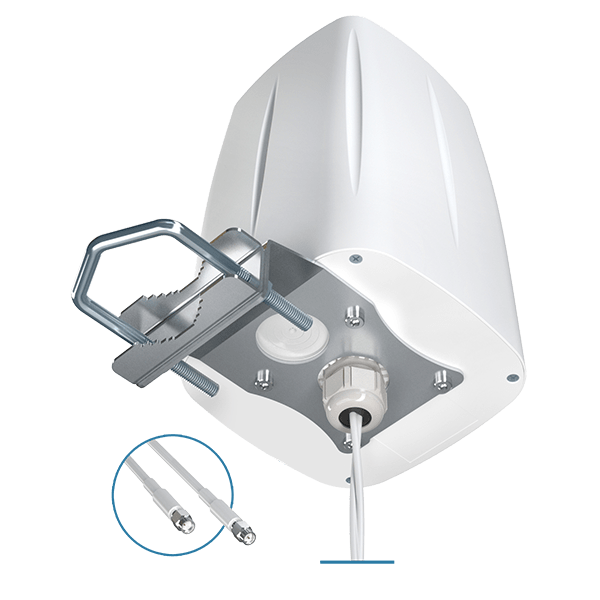

WiSpot + 2x SMA
Big, ergonomic box

Big and voluminous BOX in WiBOX systems enables the possibility to instal different radio equipment inside.

Outer dimensions
Inner dimensions
Solid WiBOX for any outdoor conditions

Every WiBOX systems are predicted to use outdoor, they are made of UV resistant ABS plastic material, which is also resistant for bad weather conditions like rain, snow, humidity. Special designed sealing systems guarantees IP67 waterproof level. WiBOX systems can work in any weather conditions, temperature range is from -40°C up to 80°C.

Waterproof WiBOX construction

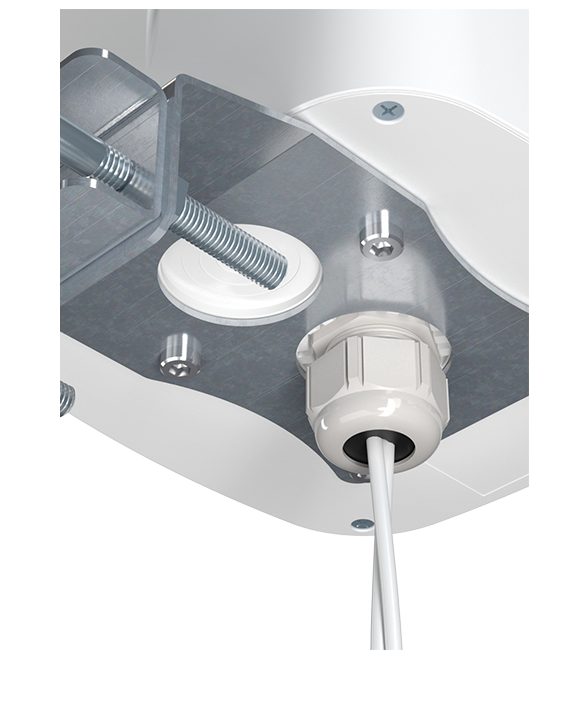

WiBOX system has certified IP67 waterproof level. It predicts the system to be used in any outdoor applications on the mast or on a wall. WiBOX system is equipped with top quality RJ45 waterproof system or with standard see-thru unit to install Ethernet cable to the WiBOX, keeping the waterproof performances.

Any information provided by Wireless Instruments Sp. z o.o. is believed to be accurate and reliable. All specifications are subject to change without notice.
