WiSector SA D2M5-90-17X

WiSector SA D2M5-90-17X is double dual polarity sector antenna. It contains 2 dual polarity X 5 GHz 90 degrees sector antennas. Antenna is predicted to create medium links in outdoor environment, at the frequency of 5 GHz. WiSector SA D2M5-90-17X comes with 4 N Female connector located at the bottom of the enclosure. The antenna PCBs are made from efficient PTFE material, due to this, the antenna performances are improved. The aerial system is equipped with WiMount mounting system, which is made from very durable fiberglass material.

MIMO 2x2
PVC
DownloadDatasheetWiSector SA D2M5-90-17X
Download
Need more information about this product ?
Contact with our
sales manager
Where to buy
Share this product on
Electrical specification
Frequency
5 - 6 GHz
Gain
17 dBi
VSWR
<2.00
Beamwidth
8°/80°
Polarization
X
Cross-Polar Isolation
25 dB
Front-to-Back
> 24 dB
Separation between Connectors
> 22 dB
Impedance
50 Ω
Max Input Power
50 W
Lighting Protection
No
DC Ground
No
Mechanic specification
Material
PVC
Outer dimensions
12 x 44.5 x 5.5 cm
4.72 x 17.52 x 2.17 inch
Weight
2 kg
Operating temperature
from -40°C to 70°C
from -40°F to 158°F
Mounting Kit
Dimensions
9.9 x 10.5 x 14.8 cm
3.9 x 4.13 x 5.83 inch
Regulation Range
+/- 30°
Weight
0.87 kg
Mast Dimensions Range
25 - 65mm
Material
Polyamide with fiberglass + galvanized steel U-Bolts
Systems
  • LTE band - 46, 47, 252, 255
  • WLAN - 5 GHz
  • WiMAX - 5 GHz
  • RFiD - 5725 - 5875 MHz
  • ISM - 5725-5875 MHz
Applications
  • Stadiums, Public Places
  • Hotspot
  • PtM Connections

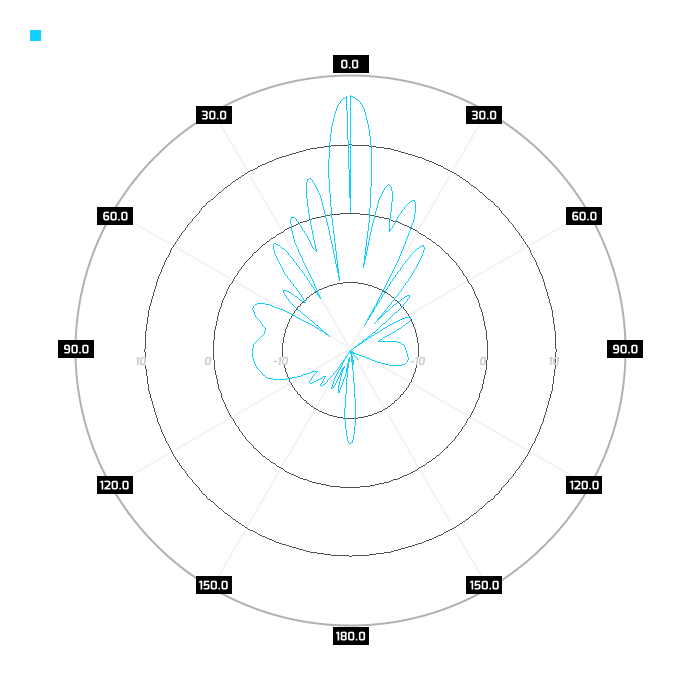

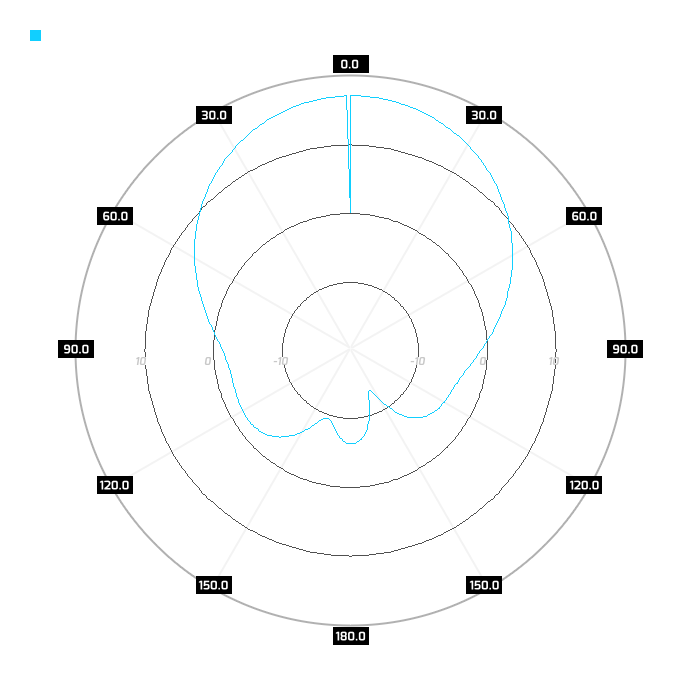

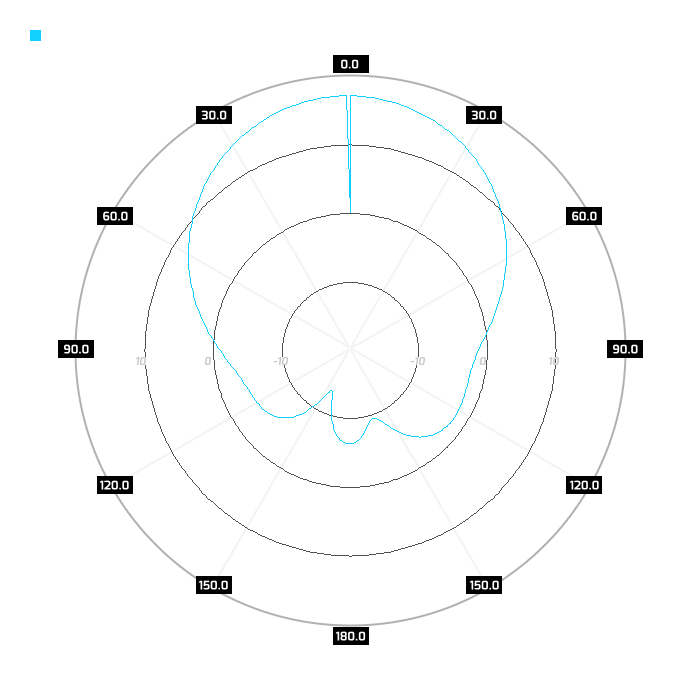

Plots
Port 1, azimuthPort 1, elev.Port 2, azimuthPort 2, elev.
Wall or pole mast mounting

Comprehensiveness of WiBOX system installation, WiBOX system can be installed using WiMount mounting system on a pole mast or a wall.

Special mounting system
WiMount

WiMount bracket is designed to connect stability and attractive shape in one product. This aesthetic design is made of a special fiberglass reinforced plastic, which is rigid even in extremely weather conditions. Innovative shape and the plastic instead of metal bracket, offers better performances and no rust during all life-time. WiMount enables the antenna position aligning in two polarizations.

Any information provided by Wireless Instruments Sp. z o.o. is believed to be accurate and reliable. All specifications are subject to change without notice.
