high-density dual band OMNI antenna

WiOmni 245-7V

WiOmni 245-7V is omnidirectional concurrent panel mount antenna. The antenna is for the omnidirectional data distribution like hotspots or small cells in outdoor environment. The system comes with NMale connector and is designed to be mounted on NFemale connector on the BOXes. WiOmni 245-7V is predicted, among others, for being installed with WiBOX Medium, Large and Extra Large IP67 enslosures (they can be ordered with N-connectors installed).

The antenna doesn´t come with WiBOX enclosures, photos are for demonstrative purposes.



SISO
ABS
DownloadDatasheetWiOmni 245-7V
Download
Need more information about this product ?
Contact with our
sales manager
Where to buy
Share this product on
Electrical specification
● Band 1
● Band 2
Frequency
●2.4 - 2.5 GHz
●4.7 - 6 GHz
Gain
●6 dBi
●7 dBi
VSWR
●<1.70, max < 2.00
●<1.70, max < 2.00
Beamwidth
●360°/25°   +/- 5°
●360°/25°   +/- 5°
Polarization
●V
●V
Impedance
50 Ω
Max Input Power
50 W
Lighting Protection
No
DC Ground
No
Mechanic specification
Material
ABS
Outer dimensions
3 x 22 x 0 cm
1.18 x 8.66 x 0 inch
Connector
1xN Male
Weight
0.2 kg
Operating temperature
from -40°C to 80°C
from -40°F to 176°F
Systems
  • LTE band - 40, 41, 46, 47, 53, 252, 255
  • WLAN - 2.4 GHz, 5 GHz
  • WiMAX - 2.3 GHz, 2.5 GHz, 5 GHz
  • RFiD - 2400 - 2483 MHz, 5725 - 5875 MHz
  • Bluetooth - 2400-2483 MHz
  • ISM - 2400-2483 MHz, 5725-5875 MHz
Applications
  • Stadiums, Public Places
  • Hotspot
  • PtM Connections
Compatible with
  • Cisco - Aironet 3702e, Aironet 3702p, Aironet 3602e, Aironet 2702e, Aironet 2602e, Aironet 1602e
Plots

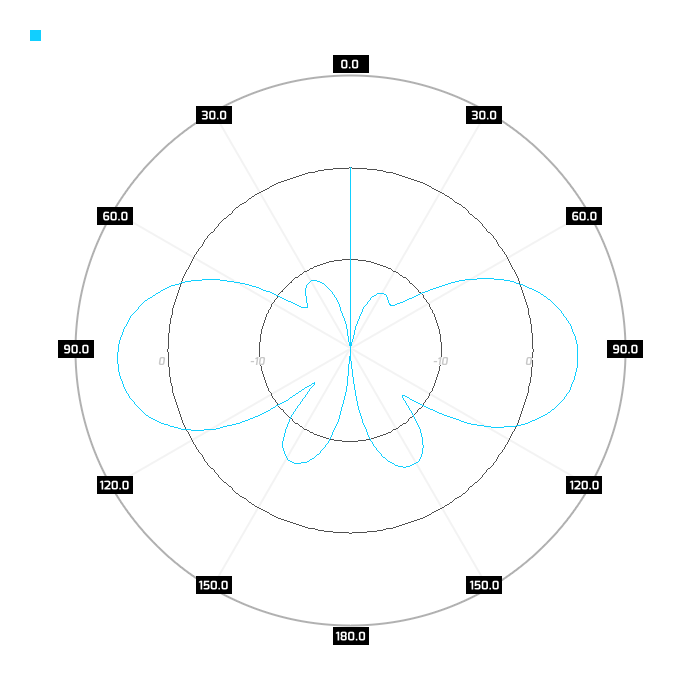

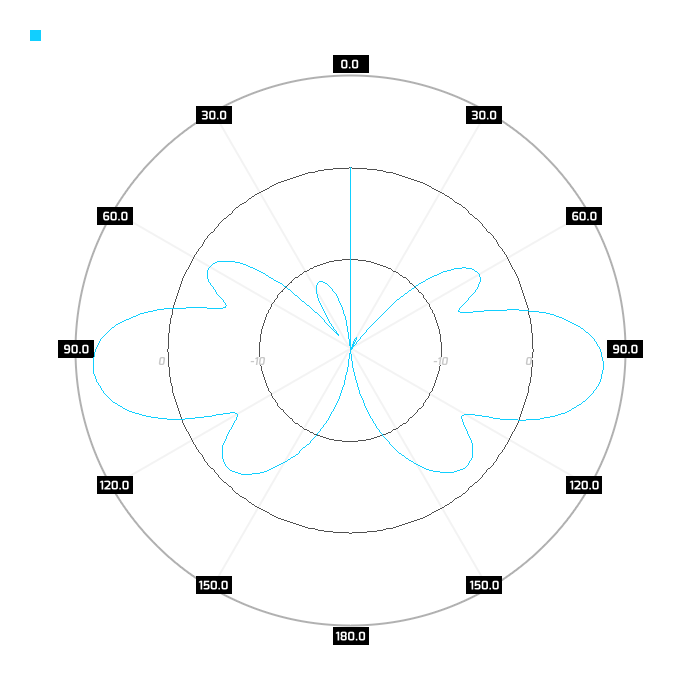

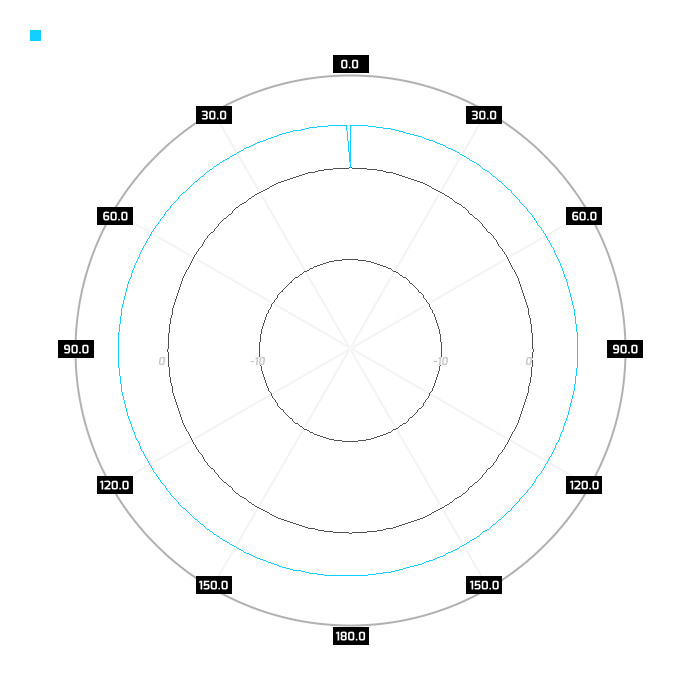

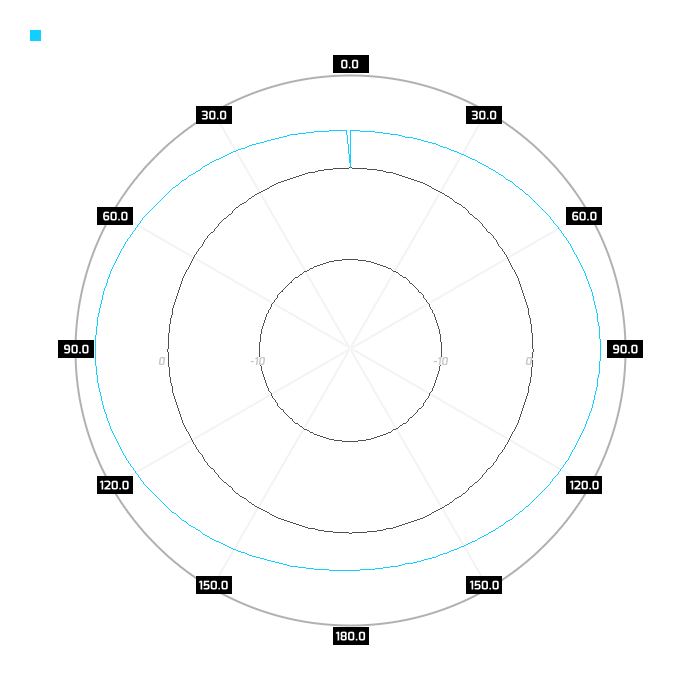

2.45GHz azimuth2.45GHz, elev.5.5GHz, azimuth5.5GHz, elev.
WiBOX System Integration

WiBOX system is desired for building systems composed of few antenna systems. To realize this possibility, there are 4  additional holes for another antenna connectors.

Any information provided by Wireless Instruments Sp. z o.o. is believed to be accurate and reliable. All specifications are subject to change without notice.
